Edelbrock 22791 Edelbrock Coil #22791 is a direct performance replacement coil pack for Ford
by Edelbrock
SKU ds_BDVJ_22791
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$276.82
-
Original price
$276.82
Original price
$276.82
$276.82
$276.82
-
$276.82
Current price
$276.82
Availability:
Out of stock
Description

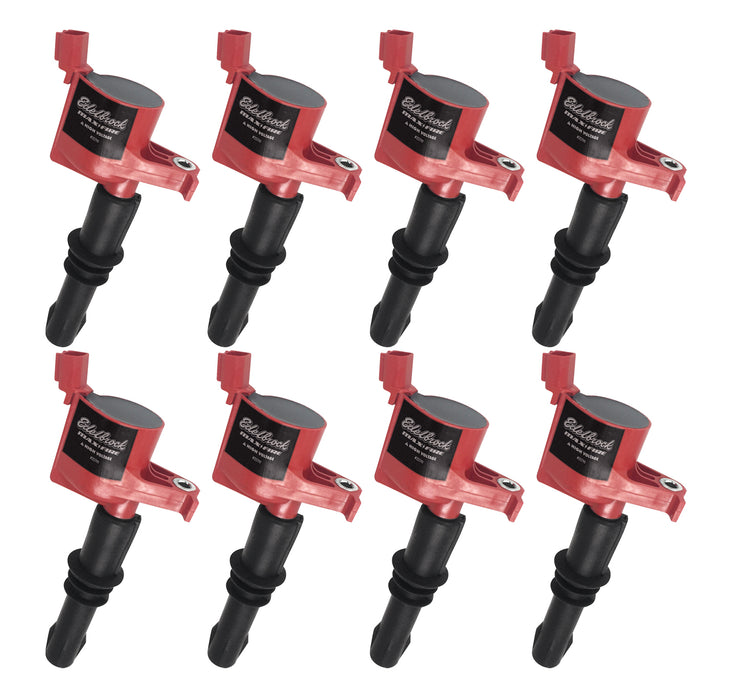

Edelbrock Coil Pack #22791 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2008-18 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22790 x 2) to replace all 10 of the 6.8L coils. Each #22790 coil and #22791 coil pack feature advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion.
Specifications
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Coil Wire Included | No |
| Connector Gender | Female |
| Description_ABR | Igntion Coil |
| Description_ASM | Ford 4.6L-5.4L V8 and 6.8L V10 2008-18 |
| Description_DEF | Ignition Coil Set |
| Description_DES | Coil #22791 is a direct performance replacement coil pack for Ford |
| Description_DES | Edelbrock Coil #22791 is a direct performance replacement coil pack for Ford |
| Description_EXT | Edelbrock Part #22791 Coil on Plug |
| Description_EXT | Edelbrock Part #22791 Coil on Plug; Ford V8 4.6L-5.4L and 6.8L V10 2008-18; 3-Valve Engine; Set of 8 |
| Description_EXT | Ford V8 4.6L-5.4L and 6.8L V10 2008-18, 3-Valve Engine, Set of 8 |
| Description_FAB | Coil Extended Boot Kit |
| Description_INV | Ford Ignition Coil On Plug Set #22791 |
| Description_KEY | Edelbrock; Coil; Coil on plug; Ignition Coil; coil pack; Ford; Lincoln; Mercury; 22780; 22781; V8; V10; Triton; replacement coils; high-performance coils |
| Description_LAB | Ignition Coil #22781 2008-18 Ford V8 4.6L-5.4L; V10 6.8L; Set of 8 |
| Description_LAB | Ignition Coil #22791 2008-18 Ford V8 4.6L-5.4L, V10 6.8L, Set of 8 |
| Description_MKT | Edelbrock Coil Pack #22791 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2008-18 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22790 x 2) to replace all 10 of the 6.8L coils. Each #22790 coil and #22791 coil pack feature advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | 75:1 Turn Ratio. Fits later model 3-valve engines with 12mm spark plugs. Coils feature a 4.5 in. long brown boot and is marked with 8L3E on top of the coil. |
| height | (Long Brown Boot) 4.5 |
| height | 7.6 |
| length | (Long Brown Boot) 4.5 |
| length | 5.2 |
| LTL | N |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Oil Filled | No |
| Primary Resistance | 0.600 |
| Quantity | Set of 8 |
| Recommended Use | For Models With 3 Valves and Use 12mm Spark Plugs |
| Requires External Resistor | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Resistance | 6.01K |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | Maximum 21000 |
| weight | 3.45 |
| width | 5.3 |
