Edelbrock 22790 Edelbrock Coil #22790 is a direct performance replacement coil for Ford
by Edelbrock
SKU ds_BDVJ_22790
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$74.50
-
Original price
$74.50
Original price
$74.50
$74.50
$74.50
-
$74.50
Current price
$74.50
Availability:
Out of stock
Description

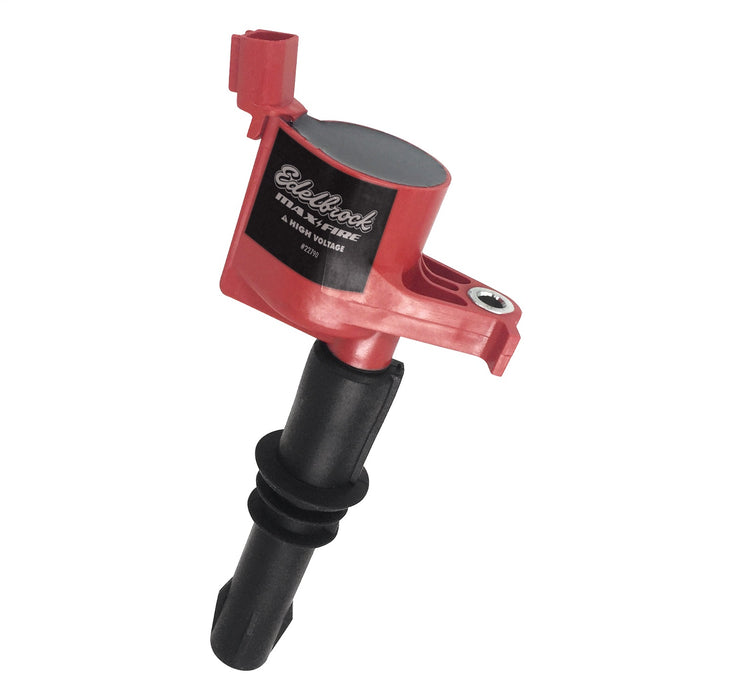

Edelbrock Coil #22790 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 2008-18 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22790 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22791. For the Triton V10 engine, order one #22791 coil pack and two #22790 single coils for a set of 10.
Specifications
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Coil Wire Included | No |
| Connector Gender | Female |
| Description_ABR | Igntion Coil |
| Description_ASM | Ford V8 4.6L-5.4L and 6.8L V10 2008-18 |
| Description_DEF | Ignition Coil |
| Description_DES | Coil #22790 is a direct performance replacement coil for Ford |
| Description_DES | Edelbrock Coil #22790 is a direct performance replacement coil for Ford |
| Description_EXT | Edelbrock Part #22790 Coil on Plug |
| Description_EXT | Edelbrock Part #22790 Coil on Plug; Ford V8 4.6L-5.4L and 6.8L V10 2008-18; 3-Valve Engine |
| Description_EXT | Ford V8 4.6L-5.4L and 6.8L V10 2008-18, 3-Valve Engine |
| Description_FAB | Coil Extended Boot |
| Description_INV | Ford Ignition Coil On Plug 22790 |
| Description_KEY | Edelbrock; Coil; Coil on plug; Ignition Coil; coil pack; Ford; Lincoln; Mercury; V8; V10; Triton; replacement coils; high-performance coils; Ford 3v; Ford 4.6L; Ford 5.4L |
| Description_LAB | Ignition Coil #22790 2008-18 Ford V8 4.6L-5.4L, V10 6.8L, Sold Individually |
| Description_LAB | Ignition Coil #22790 2008-18 Ford V8 4.6L-5.4L; V10 6.8L; Sold Individually |
| Description_MKT | Edelbrock Coil #22790 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 2008-18 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22790 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22791. For the Triton V10 engine, order one #22791 coil pack and two #22790 single coils for a set of 10. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | 75:1 Turn Ratio. Fits later model 3-valve engines with 12mm spark plugs. Coils feature a 4.5 in. long brown boot and is marked with 8L3E on top of the coil. |
| height | (Long Brown Boot) 4.5 |
| height | 2.6 |
| length | (Long Brown Boot) 4.5 |
| length | 7.5 |
| LTL | N |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Oil Filled | No |
| Primary Resistance | 0.600 |
| Quantity | Sold Individually |
| Recommended Use | For Models With 3 Valves and Use 12mm Spark Plugs |
| Requires External Resistor | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Resistance | 6.01K |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | Maximum 21000 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 1.25 |
| width | 2.7 |
