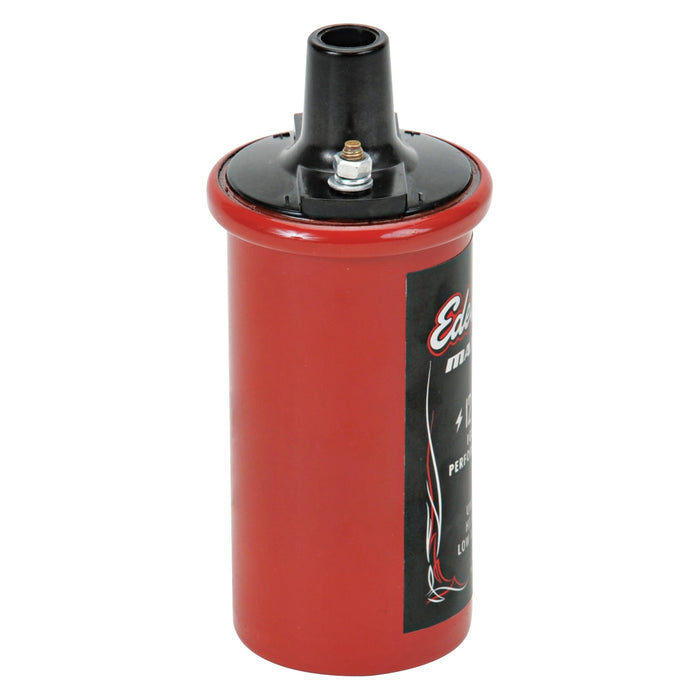

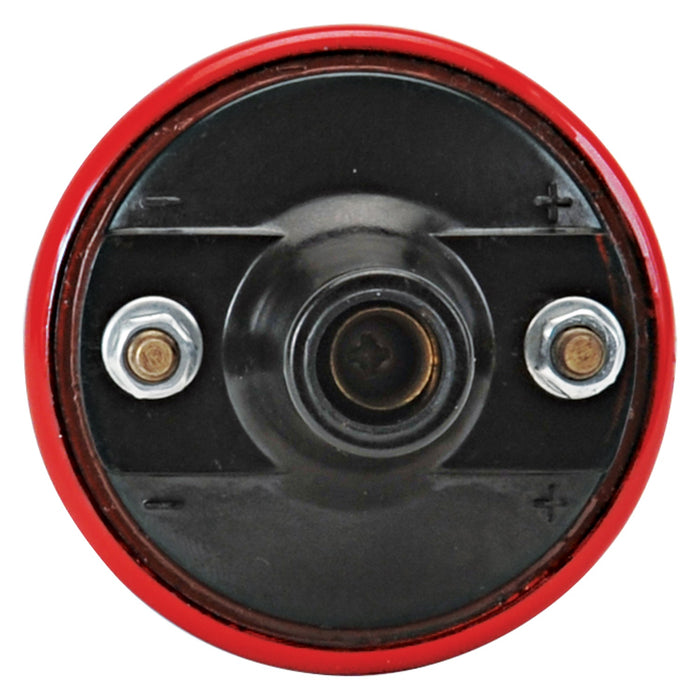

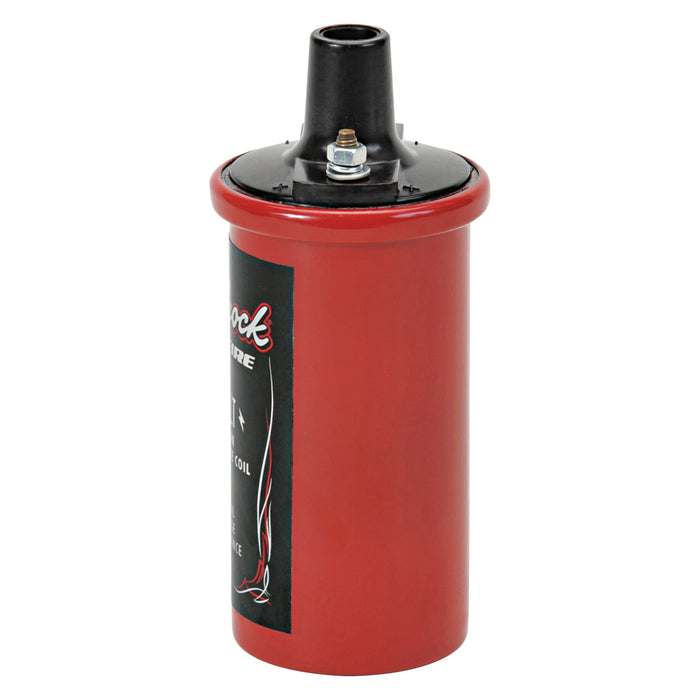

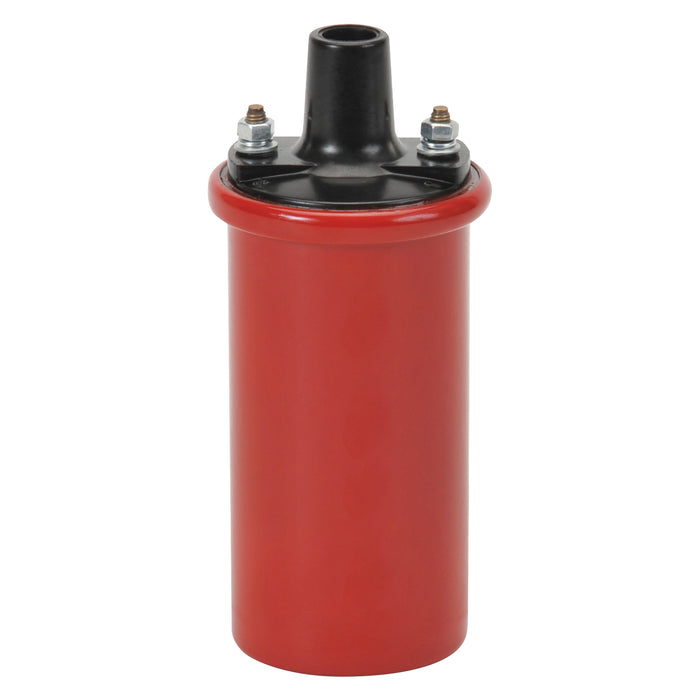

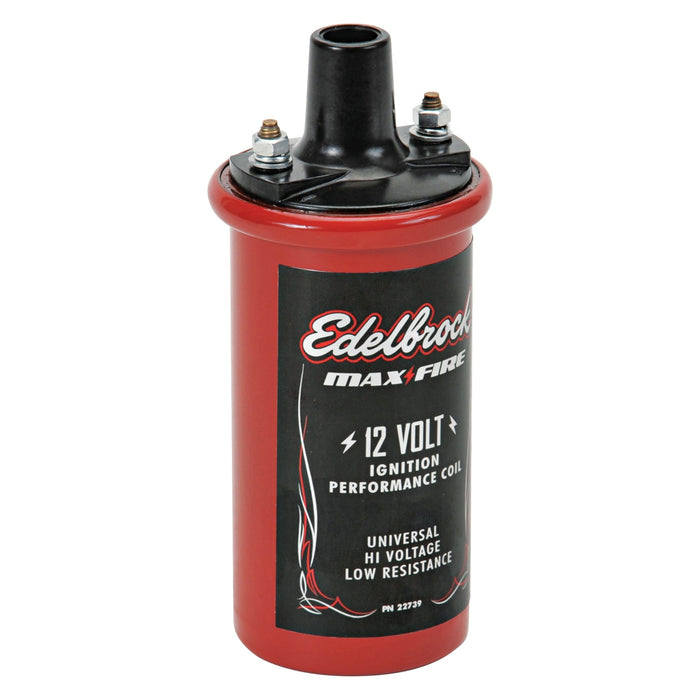

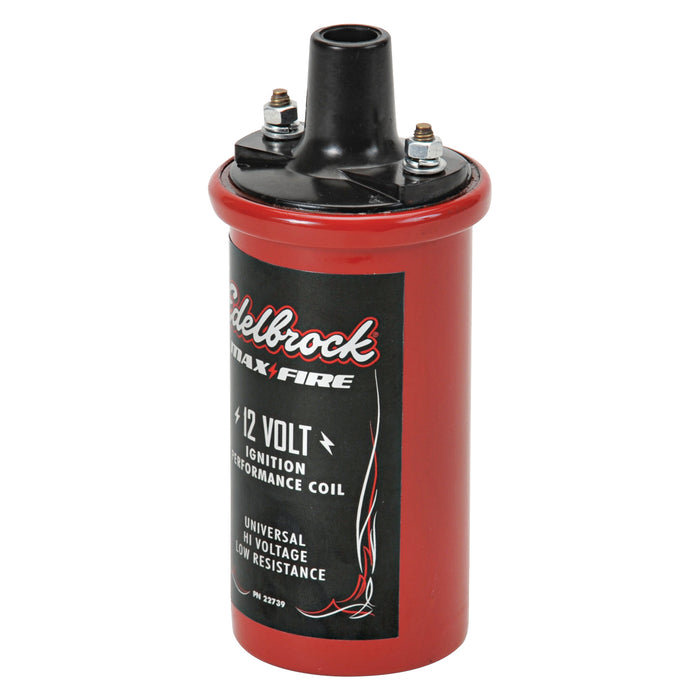

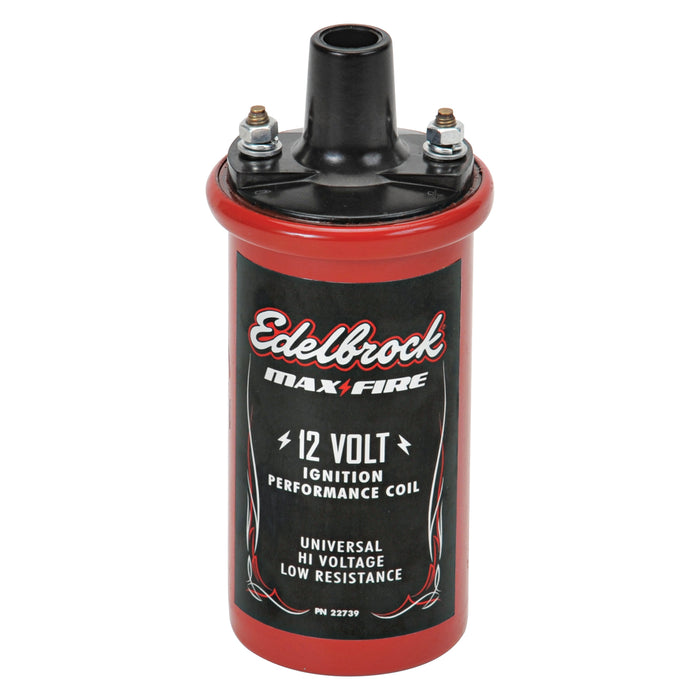

Edelbrock 22739 Universal 12V cannister-style w/primary resistance 1.4 ohms output of 42000V.
by Edelbrock
SKU ds_BDVJ_22739
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$77.72
-
Original price
$77.72
Original price
$77.72
$77.72
$77.72
-
$77.72
Current price
$77.72
Availability:
Only 1 left!
Description
Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock and vibration with an effective operating range of 0 to 6,500 RPM.
Specifications
| Coil Shape | Round |
| Coil Type | Canister |
| Coil Wire Included | No |
| Connector Gender | Male |
| Description_ABR | Igntion Coil |
| Description_DEF | Ignition Coil |
| Description_DES | Universal 12V cannister-style w/ primary resistance 1.4 ohms & output of 42000V. |
| Description_DES | Universal 12V cannister-style w/primary resistance 1.4 ohms output of 42000V. |
| Description_EXT | Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. |
| Description_EXT | Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42;000 volts. |
| Description_FAB | Durable Oil Filled Housing |
| Description_FAB | Operating Range of 0-6500 RPM |
| Description_FAB | Resistant to Heat; Shock; Vibration |
| Description_INV | Edelbrock Ignition Coil #22739 |
| Description_KEY | Edelbrock; Coil; Ignition Coil; replacement coils; high-performance coil; universal replacement coil; cannister style coil; 12-volt coil; automotive ignition components |
| Description_LAB | Ignition Coil #22739 12V Cannister Style, 1.4 Ohm Primary Resistance |
| Description_LAB | Ignition Coil #22739 12V Cannister Style; 1.4 Ohm Primary Resistance |
| Description_MKT | Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock and vibration with an effective operating range of 0 to 6,500 RPM. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 4in.} |
| height | 6.0 |
| Ignition Type | Distributorless |
| length | 3.12 |
| LTL | N |
| Material | Steel |
| Maximum Voltage | 42000 |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Position | Cylinder Head |
| Oil Filled | Yes |
| Primary Resistance | 1.4 |
| Quantity | Sold Individually |
| ratio | 94:1 Turns |
| Requires External Resistor | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Resistance | 9.2 |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Socket |
| Voltage | 12V |
| weight | 2.4 |
| width | 3.12 |
