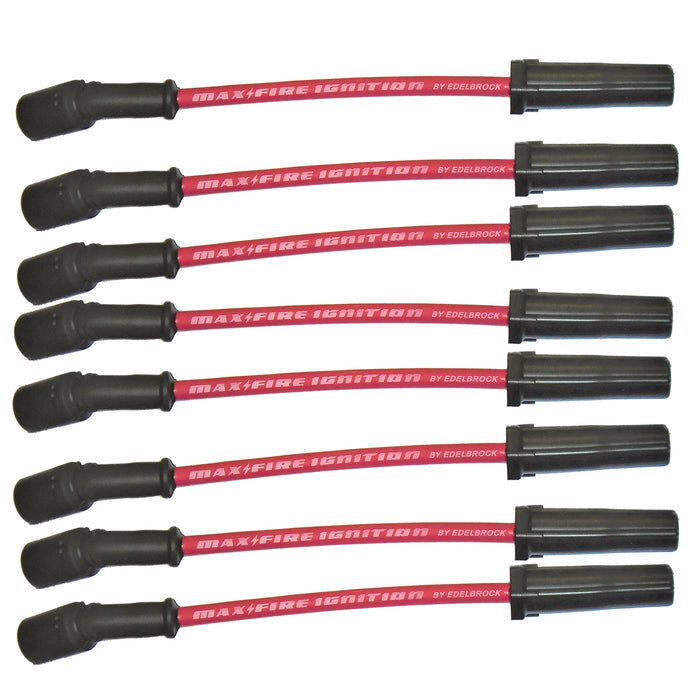

Edelbrock 22717 SPARK PLUG WIRE SET; GM LS ENGINES WITHOUT HEAT SHIELDS RED WIRE (SET OF 8)
by Edelbrock
SKU ds_BDVJ_22717
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$123.10
-
Original price
$123.10
Original price
$123.10
$123.10
$123.10
-
$123.10
Current price
$123.10
Availability:
Out of stock
Description
A huge hit among street rodders, these Dual-Quad Kits offer the ultimate set-up for anyone who wants the look and the performance of dual-quad carbs. They include an Edelbrock RPM or RPM Air-Gap Dual-Quad intake manifold and two 500 cfm Thunder Series AV.
Specifications
| Coil End Boot Color | Black |
| Coil Wire Length | 12.5 |
| Core Material | Magnetic Kevlar Core |
| Description_ABR | SprkPlgWires |
| Description_ASM | Chevrolet:Small-Block Gen III LM7:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block Gen III LR4:293 (4.8L) |
| Description_ASM | Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LH8:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LMF:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LMG:325 (5.3L) |
| Description_ASM | Chevrolet:Small-Block LY5:325 (5.3L) |
| Description_DEF | Spark Plug Wire Set |
| Description_DES | Max-Fire 8.5mm High Performance Spark Plug Wires without Heat Shields |
| Description_DES | SPARK PLUG WIRE SET |
| Description_EXT | Edelbrock Max-Fire High Performance Spark Plug Wires without Heat Shields, 8.5mm red silicone outer jacket, Kevlar inner core, 50 ohms per foot resistance, excellent EMI/RFI suppresion |
| Description_EXT | SPARK PLUG WIRE SET; GM LS ENGINES WITHOUT HEAT SHIELDS RED WIRE (SET OF 8) |
| Description_FAB | 50 ohms per foot of resistance |
| Description_FAB | Based on Performer RPM-Series with Unique Air Gap |
| Description_FAB | Complete preassembled set of LS ignition wires that require no cutting or splicing |
| Description_FAB | Convert From Single To Dual-Quad Intake |
| Description_FAB | Edelbrock Total Power Package Maximizes Gains |
| Description_FAB | Excellent EMI/RFI suppresion |
| Description_FAB | Excellent protection from heat, chemicals and moisture |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Red 8.5mm outer silicone jacket |
| Description_INV | Edelbrock LS Spark Plug Wire Set #22717 |
| Description_LAB | Max-Fire Spark Plug Wire Set #22717 GM LS Truck, Ultra-Spark 50 W/O Heat Shield |
| Description_MKT | A huge hit among street rodders, these Dual-Quad Kits offer the ultimate set-up for anyone who wants the look and the performance of dual-quad carbs. They include an Edelbrock RPM or RPM Air-Gap Dual-Quad intake manifold and two 500 cfm Thunder Series AV. |
| Description_MKT | Edelbrock Max-Fire LS Ignition Wire Kits #22717 is a preassembled set of eight spark plug wires for General Motors LS engines. These wires are manufactured using high-quality materials to ensure the best performance possible with a heavy-duty 8.5mm red silicone outer jacket to protect the spiral-wound Kevlar inner core from heat, moisture and chemicals. This direct-fit wire set delivers maximum voltage with extremely high EMI/RFI suppression with 50 ohms per foot of resistance. This kit is ideal for LS builds that demand a high-performance ignition system upgrade with a precision fit and a show-quality appearance. See application chart for engine- or vehicle-specific Max-Fire kits. |
| Description_SHO | ELECTRONICS |
| Description_TRA | Inspect your spark plug wires regularly! Spark plug wires require periodic changing and should be replaced if damaged or if they show signs of wear. If you want to keep the performance of your engine at the optimal level, we recommend you replace your spark plug wires at the same time you replace your spark plugs. Fouled, damaged, or worn out spark plugs can lead to a variety of engine problems, such as misfires, hard starts, increased emissions, poor fuel economy and reduce acceleration. For most vehicles, you should replace your spark plugs every 30,000 miles. |
| height | 9.63 |
| Insulation Color | White |
| Insulation Material | EPDM |
| Insulation Outside Diameter | 0.23 |
| length | 7.06 |
| LTL | N |
| Noise Suppression Type | Yes |
| Outside Diameter | 8.5 |
| Resistance | 50 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Spark Plug Boot Material | Compact Silicone |
| Spark Plug End Boot Color | Black |
| Spark Plug End Boot Degree | 45 |
| Spark Plug End Boot Quantity Straight | 8 |
| Spark Plug End Terminal Type | LS |
| Spark Plug Wire Resistance | 50 |
| Universal Or Specific Fit | Specific |
| weight | 2.25 |
| width | 4.13 |
| Wire 1 Length | 12.5 |
| Wire 2 Length | 12.5 |
| Wire 3 Length | 12.5 |
| Wire 4 Length | 12.5 |
| Wire 5 Length | 12.5 |
| Wire 6 Length | 12.5 |
| Wire 7 Length | 12.5 |
| Wire 8 Length | 13.0 |
| Wire Separators Included | No |
