Edelbrock 2176 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_2176
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$638.44
-
Original price
$638.44
Original price
$638.44
$638.44
$638.44
-
$638.44
Current price
$638.44
Availability:
Out of stock
Description

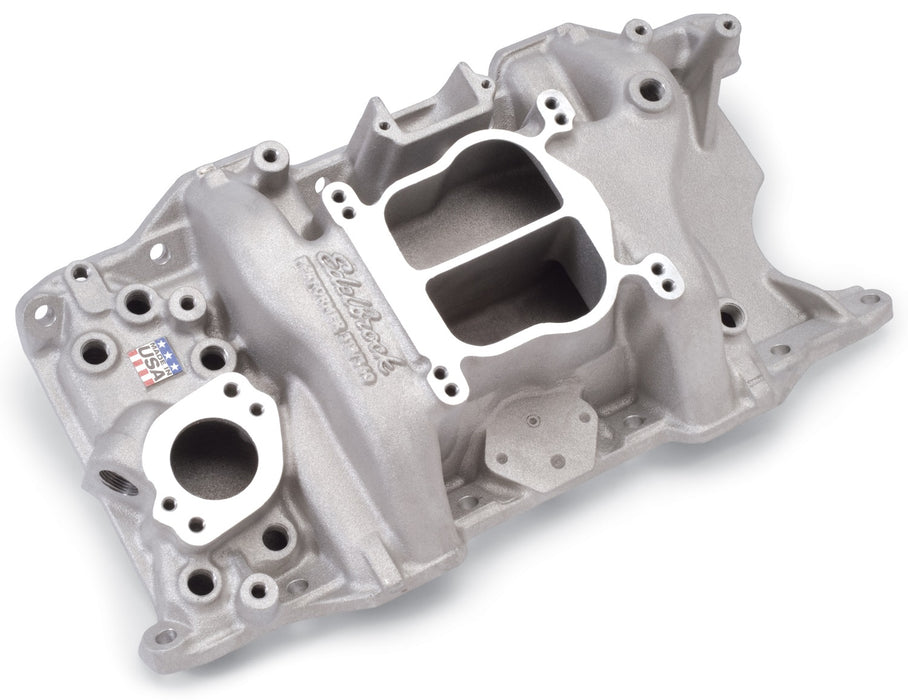

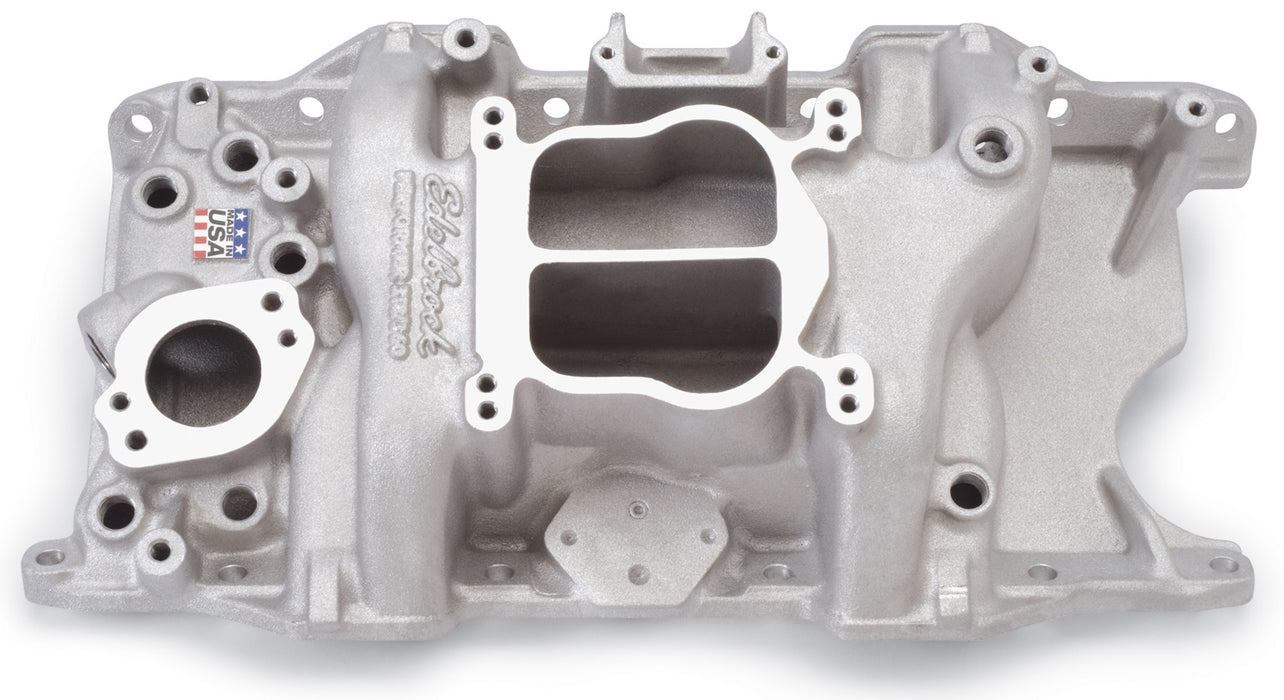

Edelbrock part #2176 Performer intake manifold is designed for street 318-340-360 c.i.d. Chrysler V8's. This manifold is not for use on marine engines used in salt water. Will not fit 1992 and later Magnum engines. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.630 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Small-Block LA-Series:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 318/360 Intake Manifold for 1966-87 Chrysler "LA" Small-Block Engines is Designed for Street 318-340-360 c.i.d. Accepts Either OEM 4-bbl or 4150-Style Square-Bore Carburetors. Non-EGR |
| Description_EXT | Edelbrock Performer 318/360 Intake Manifold for 1966-87 Chrysler LA Small-Block Engines is Designed for Street 318-340-360 c.i.d. Accepts Either OEM 4-bbl or 4150-Style Square-Bore Carburetors. Non-EGR |
| Description_FAB | 50-State Street Legal if Correct Carburetor Used |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer Chrysler 318-360 Intake Mnfld |
| Description_KEY | 2176; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer 318/360 Intake Manifold for Small-Block Chrysler, LA Series Engines |
| Description_LAB | Performer 318/360 Intake Manifold for Small-Block Chrysler; LA Series Engines |
| Description_MKT | Edelbrock part #2176 Performer intake manifold is designed for street 318-340-360 c.i.d. Chrysler V8's. This manifold is not for use on marine engines used in salt water. Will not fit 1992 and later Magnum engines. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.63" |
| Description_TRA | Carb recommendations: OEM 4-Bbl, Edelbrock AVS@ or Performer Series 600-650 cfm. Use #1481 #1483 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.13", B-5.13" |
| Description_TRA | Port exit dimensions: .97" x 1.95" |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Chrysler #4494462AB for 318, #4397642 for 340 and 360 (or equivalent) |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7276; Chrysler # 4494462AB for 318; # 4397642 for 340 and 360 (or equivalent) • Manifold height: A-4.13in.; B-5.13in. • Carb pad height: 4.63in. • Carb recommendations: OEM 4-Bbl; Edelbrock AVS@ or Performer Series 600-650 cfm. Use # 1481 # 1483 throttle/transmission lever kit. • Port exit dimensions: .97in. x 1.95in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.130 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.130 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chrysler |
| weight | 21.2 |
| width | 14.75 |
