Edelbrock 20624 Engine Intake Manifold / Carburetor Kit
by Edelbrock
SKU ds_BDVJ_20624
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,641.27
-
Original price
$1,641.27
Original price
$1,641.27
$1,641.27
$1,641.27
-
$1,641.27
Current price
$1,641.27
Availability:
Out of stock
Description

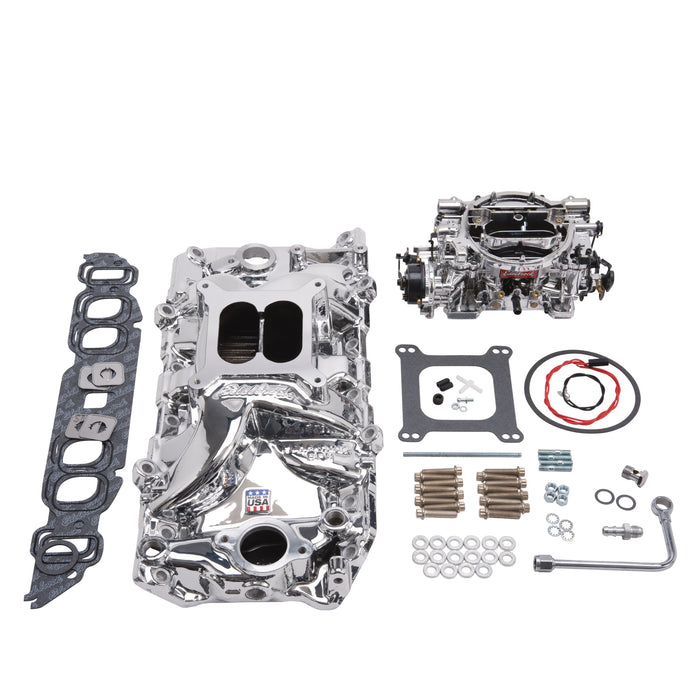

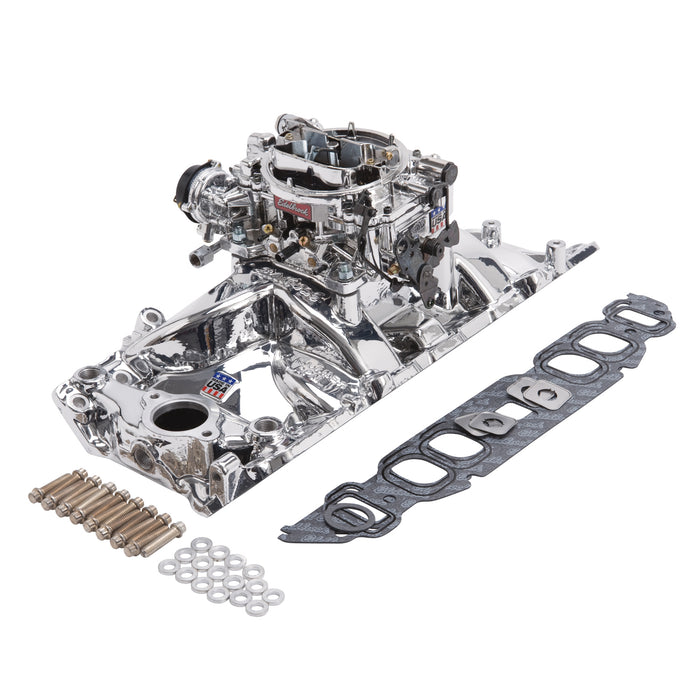

The Edelbrock #20624 Single-Quad Manifold and carb kit is designed for Big-Block Chevy Oval Port applications. With a Manifold and Carb Kit, it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. These kits include: an Edelbrock manifold, Performer or Thunder Series AVS carb, chrome fuel inlet, intake gasket set, intake bolt set and carb stud kit. The manifold and carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks.
Specifications
| Base Plate Gasket Mount Hole Quantity | 8 |
| Base Plate Gasket Thickness | 0.048 |
| Base Plate Material | Aluminum |
| Carburetor Type | AVS2 Series 800 cfm |
| Description_ABR | INTK CARB KT |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold / Carburetor Kit |
| Description_EXT | Edelbrock Single-Quad Manifold and carb kit for Big-Block Chevy Oval Port. With a Manifold and Carb Kit, it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. |
| Description_INV | Single-Quad Manifold and carb kit |
| Description_LAB | Single-Quad Manifold and carb Kit for Big-Block Chevy Oval Port |
| Description_MKT | The Edelbrock #20624 Single-Quad Manifold and carb kit is designed for Big-Block Chevy Oval Port applications. With a Manifold and Carb Kit, it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. These kits include: an Edelbrock manifold, Performer or Thunder Series AVS carb, chrome fuel inlet, intake gasket set, intake bolt set and carb stud kit. The manifold and carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks. |
| Description_TRA | Comes with a Performer RPM manifold & Thunder Series AVS 800 cfm carb (oval port) |
| Family | Performer RPM |
| finish | EnduraShine |
| height | 14.8 |
| Intake Manifold Type | Performer RPM |
| length | 26.12 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Single |
| weight | 34.2 |
| width | 14.37 |
