Edelbrock 182061 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_182061
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$478.50
-
Original price
$478.50
Original price
$478.50
$478.50
$478.50
-
$478.50
Current price
$478.50
Availability:
Out of stock
Description

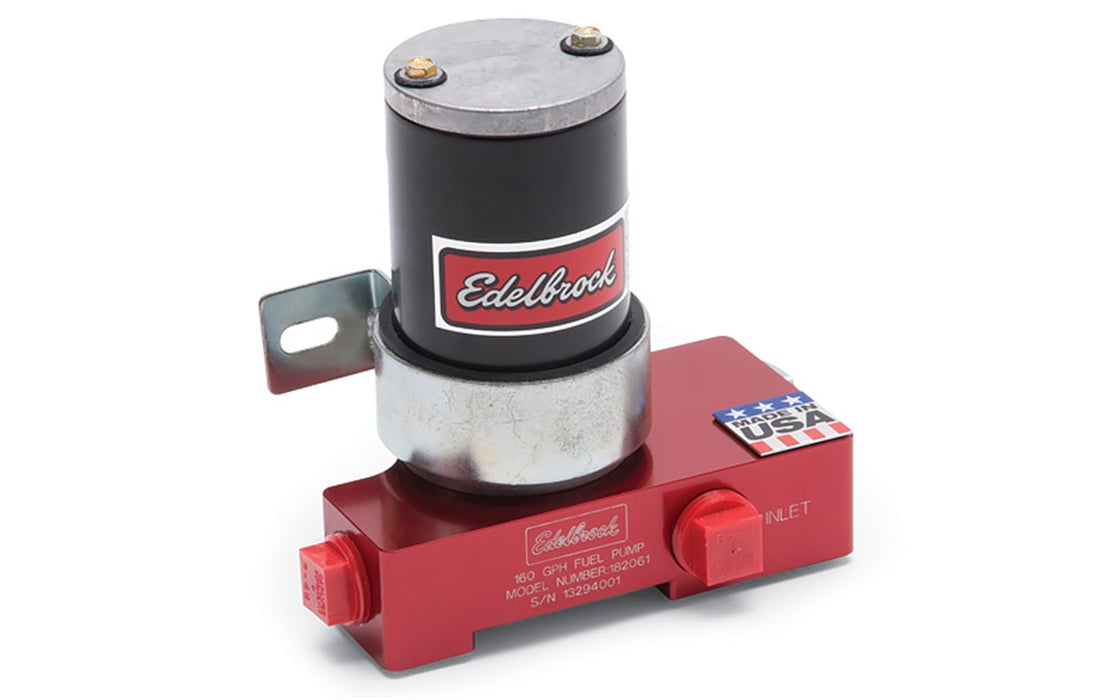

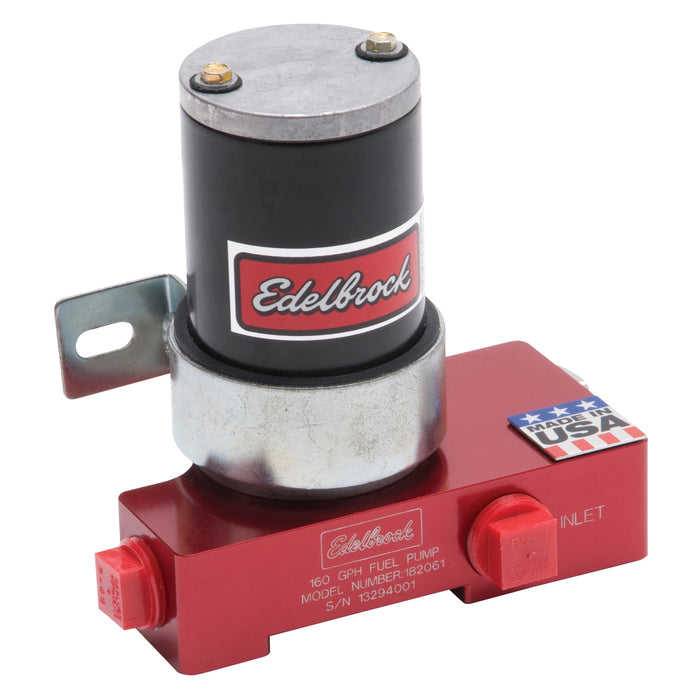

Edelbrock part #182061 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Red anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #182061 has a free flow rate of 160 GPH, enough to feed a 1,000+ hp engine. This pump is factory preset to 12 psi and requires an external regulator such as the Edelbrock regulator #1727.
Specifications
| Compatible Fuel Type | Gas |
| Description_ABR | ElecFuelPump |
| Description_DEF | Electric Fuel Pump |
| Description_DES | FUEL PUMP |
| Description_EXT | Edelbrock part #182061 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. |
| Description_FAB | Anodized Aluminum Housing |
| Description_FAB | Factory Tested |
| Description_FAB | High-Quality Internals |
| Description_FAB | Includes Mounting Brackets |
| Description_FAB | Manufactured By Essex Industries |
| Description_FAB | Maximum Performance In A Compact Package |
| Description_INV | Edelbrock Electric Fuel Pump #182061 |
| Description_KEY | Edelbrock; Fuel Pump; Electric; Red; 160 GPH; 12 psi; 1/2in.; 1000+HP; 182061 |
| Description_LAB | Red Electric Fuel Pump - 160 GPH |
| Description_LAB | Red Electric Fuel Pump-160 GPH |
| Description_MKT | Edelbrock part #182061 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Red anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #182061 has a free flow rate of 160 GPH, enough to feed a 1,000+ hp engine. This pump is factory preset to 12 psi and requires an external regulator such as the Edelbrock regulator #1727. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | 160GPH |
| Description_TRA | Call for more information |
| Description_TRA | External Regulator Required: Yes |
| Description_TRA | Factory pressure setting: 12 psi |
| Description_TRA | For proper installation and voltage requirements, use fuel pump relay kit #1795 |
| Description_TRA | Inlet Port: 1/2" (NPT) |
| Description_TRA | Outlet Port: 1/2" (NPT) |
| Description_TRA | Pump is for gasoline only |
| Description_TRA | Supported HP: 1,000+ |
| Description_TRA | These pumps should be mounted as close to the fuel tank ass possible, at or below the fuel level |
| Description_TRA | • 160GPH • Factory pressure setting: 12 psi • Inlet Port: 1/2in. (NPT) • Outlet Port: 1/2in. (NPT) • External Regulator Required: Yes • Supported HP: 1;000+• These pumps should be mounted as close to the fuel tank ass possible; at or below the fuel level. • For proper installation and voltage requirements; use fuel pump relay kit # 1795. • Pump is for gasoline only. • Edelbrock offers fuel pump rebuilding services - Call for more information. |
| Fuel Pump Inlet Type | NPT |
| Fuel Sending Unit Included | No |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| height | 7.0 |
| In Tank or External | External |
| Inlet Fitting Thread Size | 0.5 |
| Inlet Thread Diameter | 0.5 |
| Inlet Type | NPT |
| Internal Or External | External |
| length | 5.5 |
| LTL | N |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 0.5 |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | 0.5 |
| Outlet Type | NPT |
| Pump Design | In-line Electric Fuel Pump |
| Pump Type | Electric |
| Regulator Included | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seal And Lock Ring Included | No |
| Strainer Included | No |
| Terminal Type | Lead Wire |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| weight | 3.53 |
| width | 4.1 |
| Wire Quantity | 2 |
| Wiring Harness Included | No |
