Edelbrock 11273 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_11273
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$921.50
-
Original price
$921.50
Original price
$921.50
$921.50
-
$921.50
Current price
$921.50
Availability:
Out of stock
Description

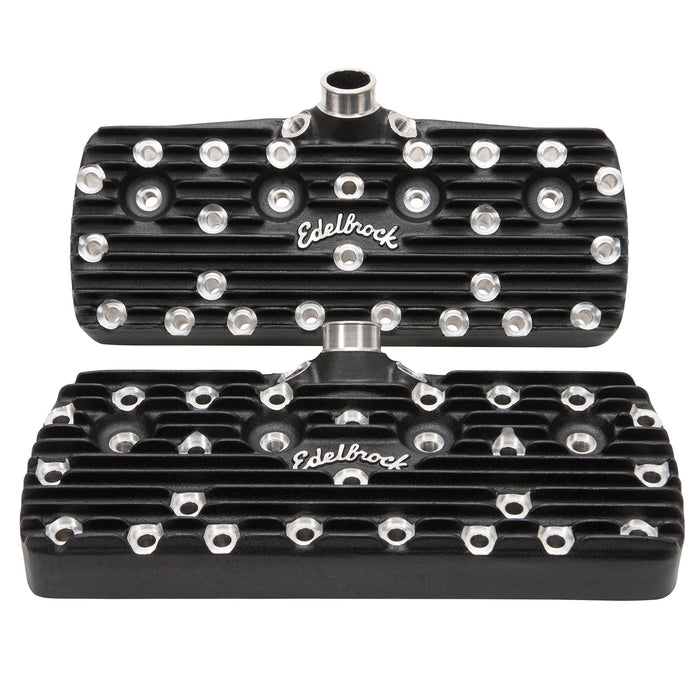

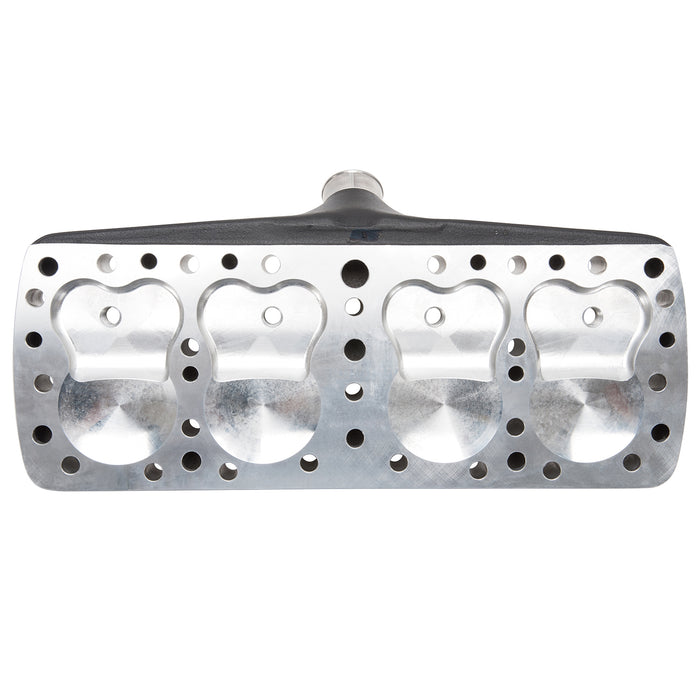

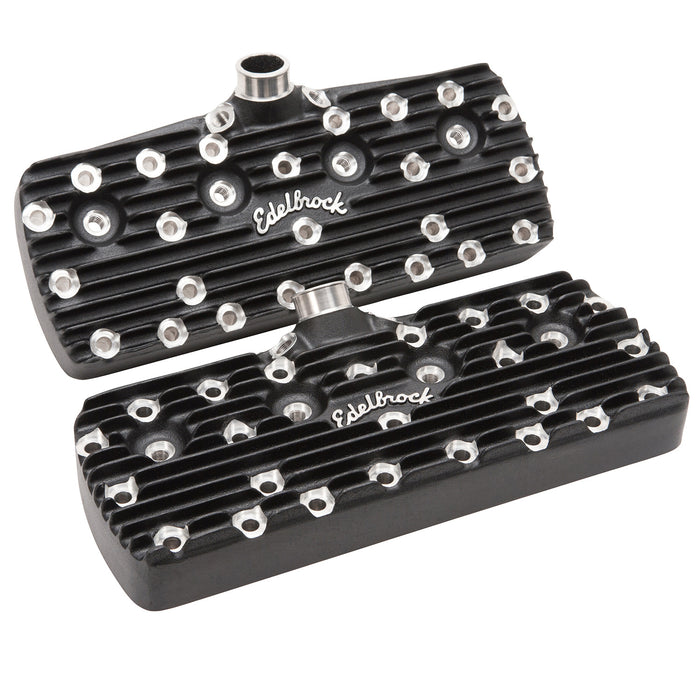

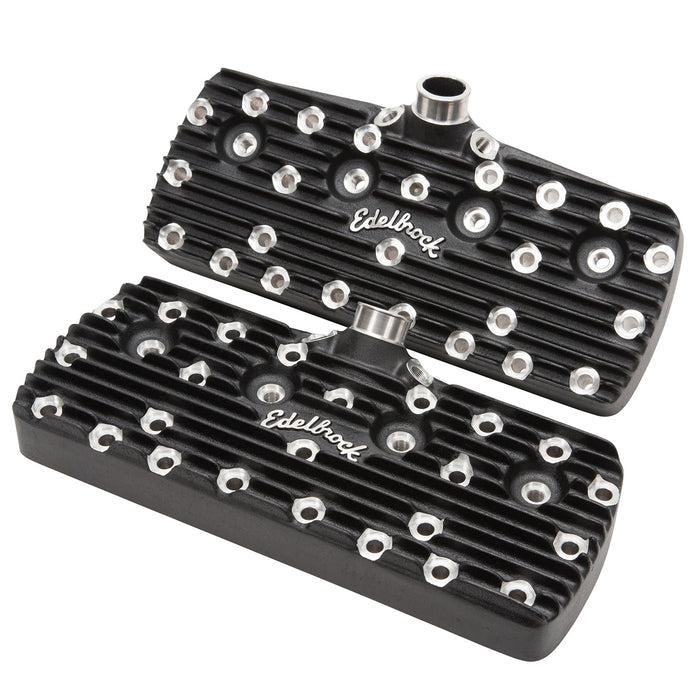

The Edelbrock #11273 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1127 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The Edelbrock #1127 Ford Flatheads High Lift/Large Chamber version feature a new "raised roof" combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity.
Specifications
| CNC Ported | Yes |
| Combustion Chamber Volume | 74.0 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Flathead:221 (3.6L)/239 (3.9L) |
| Description_ASM | Mercury:Flathead:221 (3.6L)/239 (3.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | The Edelbrock #11273 Ford Flatheads feature the original Block logo design, the #1127 heads High Lift/Large Chamber feature a new raised roof chamber that is for high lift cams and is perfect for reducing compression on low octane fuel. |
| Description_INV | Edelbrock Flathead Cylinder Head |
| Description_LAB | 1938-48 Flathead Cylinder head High Lift Black |
| Description_MKT | The Edelbrock #11273 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1127 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The Edelbrock #1127 Ford Flatheads High Lift/Large Chamber version feature a new "raised roof" combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity. |
| Description_TRA | Flathead head copper gaskets for 1938-48 use Victor #3036 |
| Description_TRA | for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393. |
| Description_TRA | Generator stud kit for 1938-48, use #8506. |
| Description_TRA | Head stud kit for 1938-48, use #8505 |
| Description_TRA | Head stud kit for 1949-53, use #8502. |
| Description_TRA | or Edelbrock Head Gasket Set #7394 |
| Description_TRA | or Fel-Pro #7548 |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Grade Type | Performance |
| Guide Plates Included | No |
| Head Casting Number | 1125F |
| height | 8.3 |
| length | 23.1 |
| Material | Aluminum |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 30.55 |
| width | 18.1 |
