Edelbrock 1126 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_1126
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,572.77
-
Original price
$1,572.77
Original price
$1,572.77
$1,572.77
$1,572.77
-
$1,572.77
Current price
$1,572.77
Availability:
Out of stock
Description

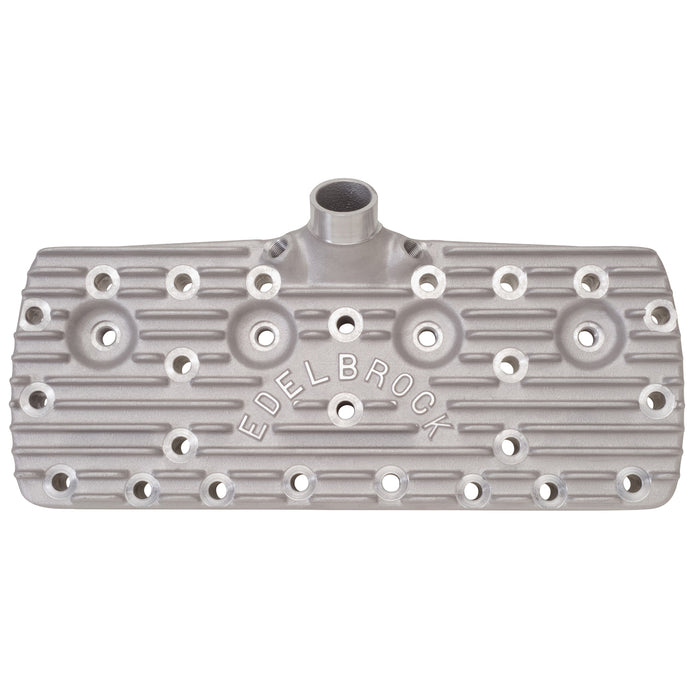

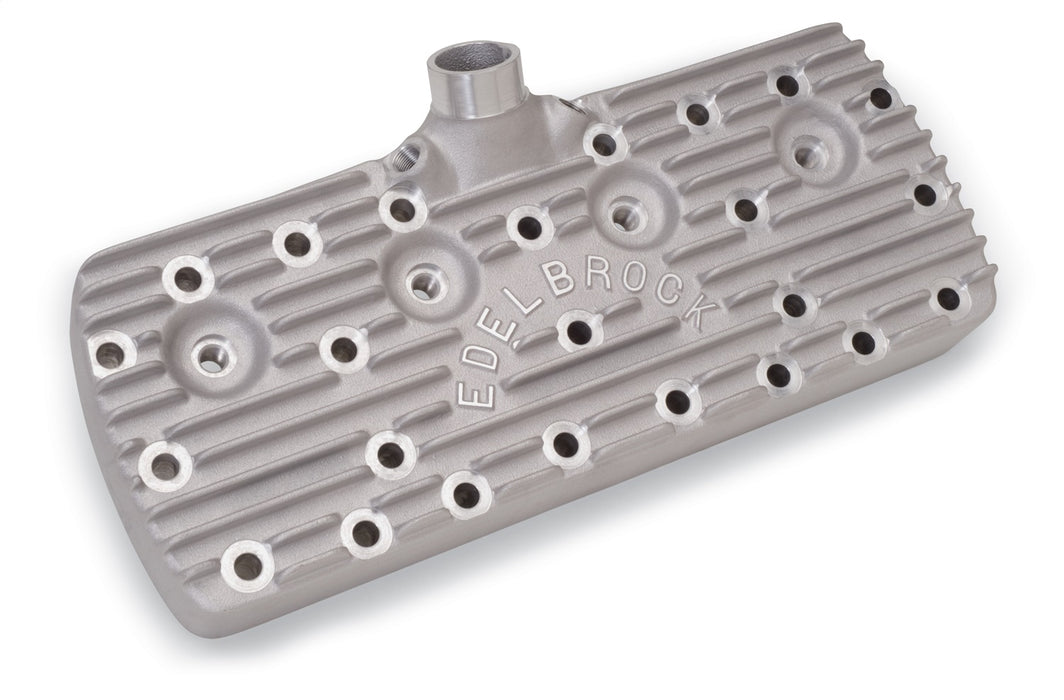

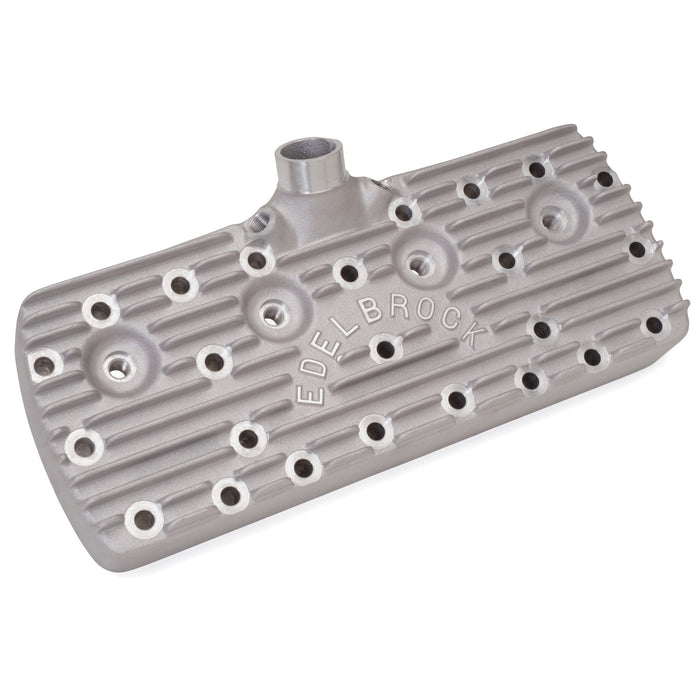

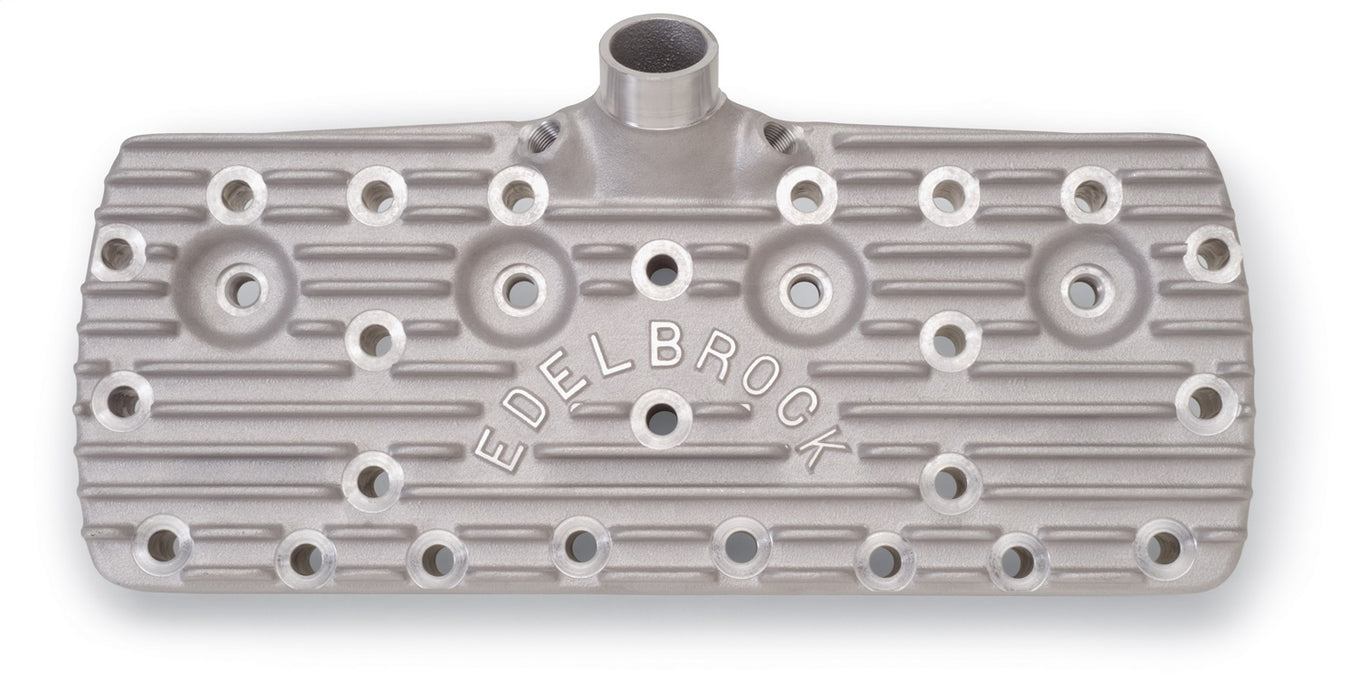

The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 65 |
| Construction Type | Flathead |
| Deck Thickness | 0.375 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Flathead:221 (3.6L)/239 (3.9L) |
| Description_ASM | Ford:Flathead:221 (3.6L)/239 (3.9L);Mercury:Flathead:221 (3.6L)/239 (3.9L) |
| Description_ASM | Mercury:Flathead:221 (3.6L)/239 (3.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, the Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. |
| Description_EXT | The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys; the Edelbrock #1126 heads are rugged; ribbed internally and externally; with a large water capacity and excellent breathing characteristics. |
| Description_FAB | Casted At The Edelbrock Foundry In The USA |
| Description_FAB | Excellent Breathing Characteristics |
| Description_FAB | High Lift Heads Have Increased Valve Clearance |
| Description_FAB | Increased Flow Capacity |
| Description_FAB | Large Water Capacity |
| Description_FAB | T-6 Tempered A356 Aluminum |
| Description_INV | Edelbrock Flathead Cylinder Head |
| Description_KEY | Edelbrock; Flat Head; 1938-48; V8; Cylinder Heads; 1126; Early Model |
| Description_LAB | Flathead Ford Cylinder Head With Block Letter Logo |
| Description_MKT | The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Flathead head copper gaskets for 1938-48 use Victor #3036 |
| Description_TRA | for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393. |
| Description_TRA | Generator stud kit for 1938-48, use #8506. |
| Description_TRA | Head stud kit for 1938-48, use #8505 |
| Description_TRA | Head stud kit for 1949-53, use #850. |
| Description_TRA | or Edelbrock Head Gasket Set #7394 |
| Description_TRA | or Fel-Pro #7548 |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | • Flathead head copper gaskets for 1938-48 use Victor #3036; or Fel-Pro® #7548; or Edelbrock Head Gasket Set #7394; for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • Head stud kit for 1938-48; use #8505 • Head stud kit for 1949-53; use #850. • Generator stud kit for 1938-48; use #8506. |
| EGR Port | No |
| Family | Flathead |
| finish | Satin |
| Grade Type | Performance |
| Guide Plates Included | No |
| height | 8.5 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Quantity | Set of 2 |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Flathead |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 30.55 |
| width | 11.0 |
