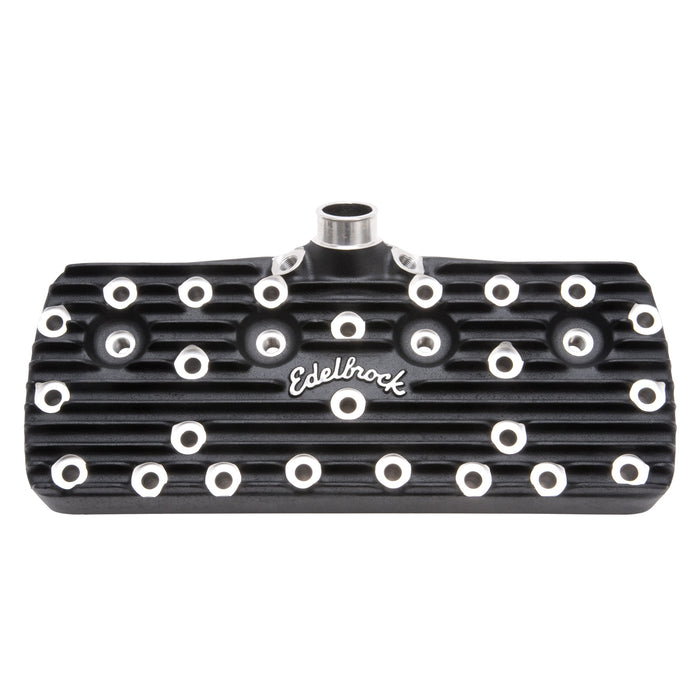

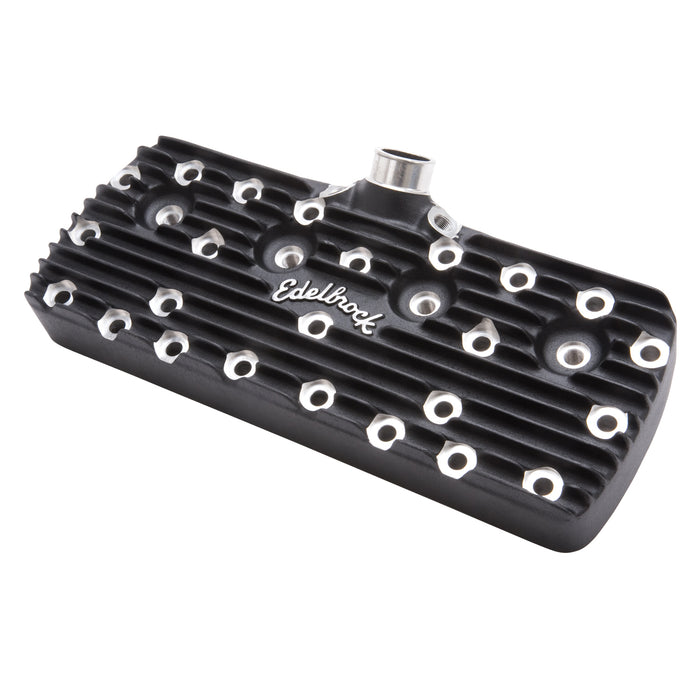

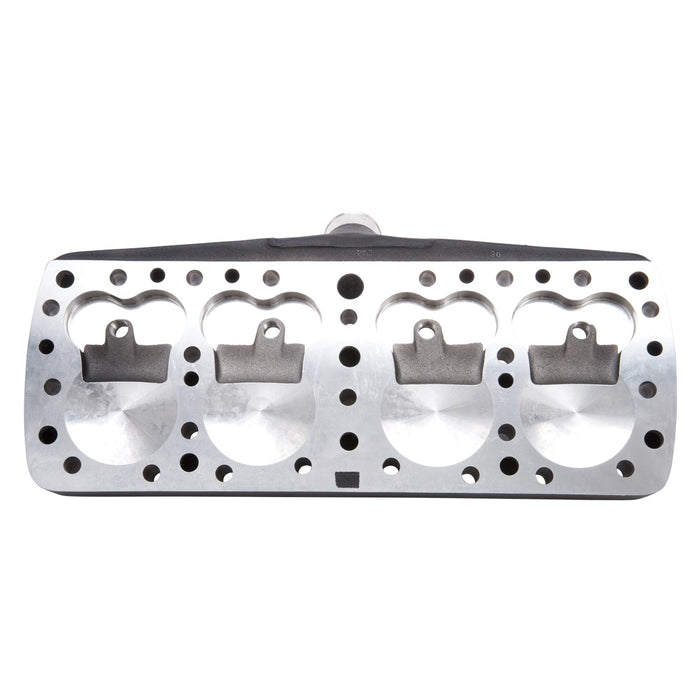

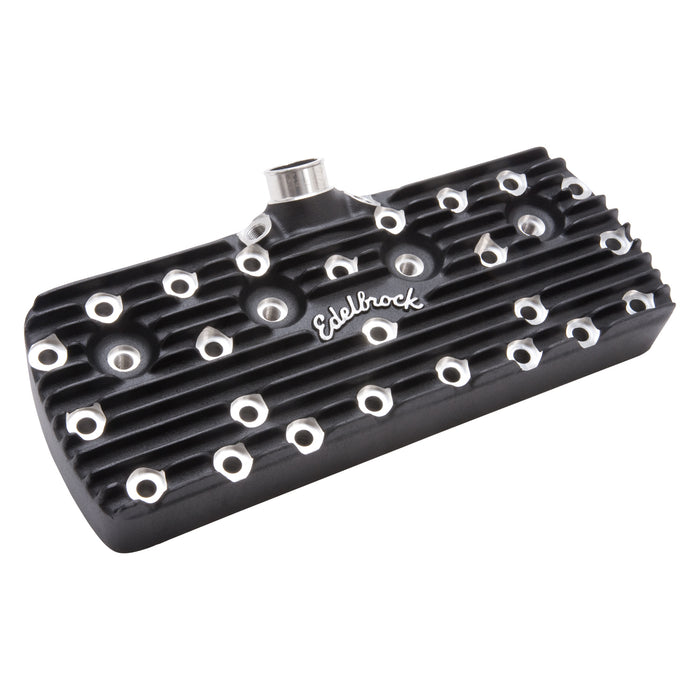

Edelbrock 11253 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_11253
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$870.57
-
Original price
$870.57
Original price
$870.57
$870.57
-
$870.57
Current price
$870.57
Availability:
Out of stock
Description
The Edelbrock #11253 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1125 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Flathead:221 (3.6L)/239 (3.9L) |
| Description_ASM | Mercury:Flathead:221 (3.6L)/239 (3.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | The Edelbrock #11253 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, the heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. |
| Description_INV | Edelbrock Flathead Cylinder Head |
| Description_LAB | 1938-48 Standard Chamber Flathead Earlier Script Cylinder Heads Black |
| Description_MKT | The Edelbrock #11253 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1125 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke. |
| Description_TRA | Flathead head copper gaskets for 1938-48 use Victor #3036 |
| Description_TRA | for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393. |
| Description_TRA | Generator stud kit for 1938-48, use #8506. |
| Description_TRA | Head stud kit for 1938-48, use #8505 |
| Description_TRA | Head stud kit for 1949-53, use #8502. |
| Description_TRA | or Edelbrock Head Gasket Set #7394 |
| Description_TRA | or Fel-Pro #7548 |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| height | 8.3 |
| length | 23.1 |
| weight | 30.55 |
| width | 18.1 |
