Description

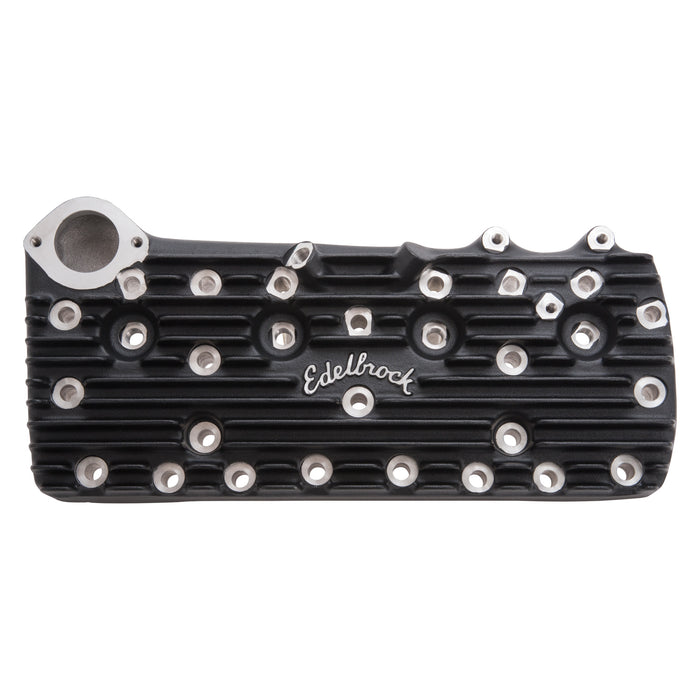

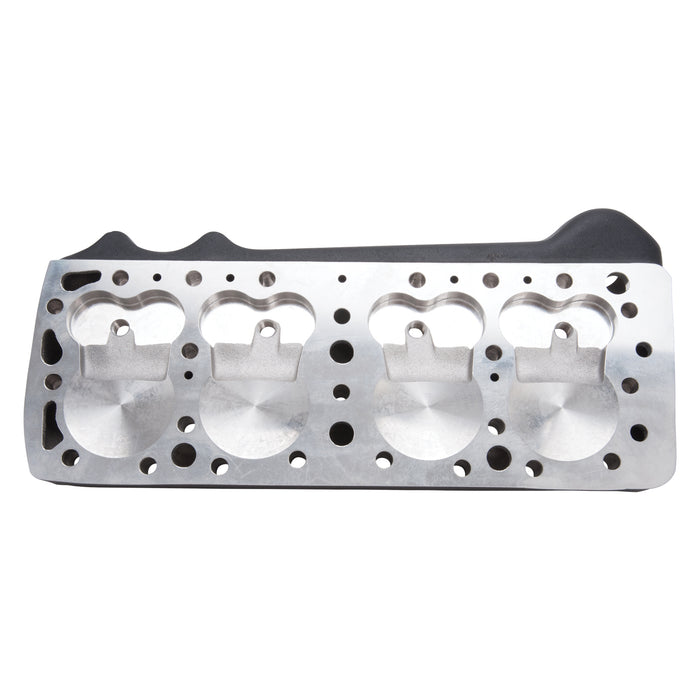

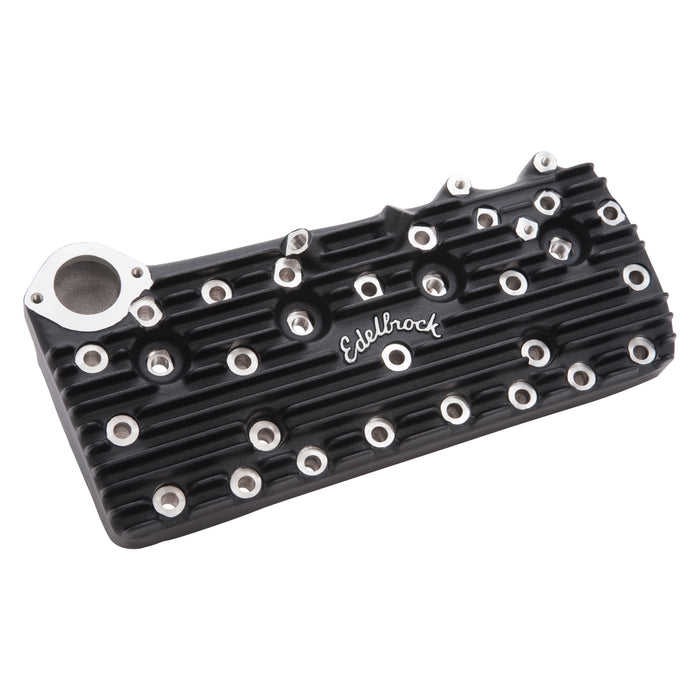

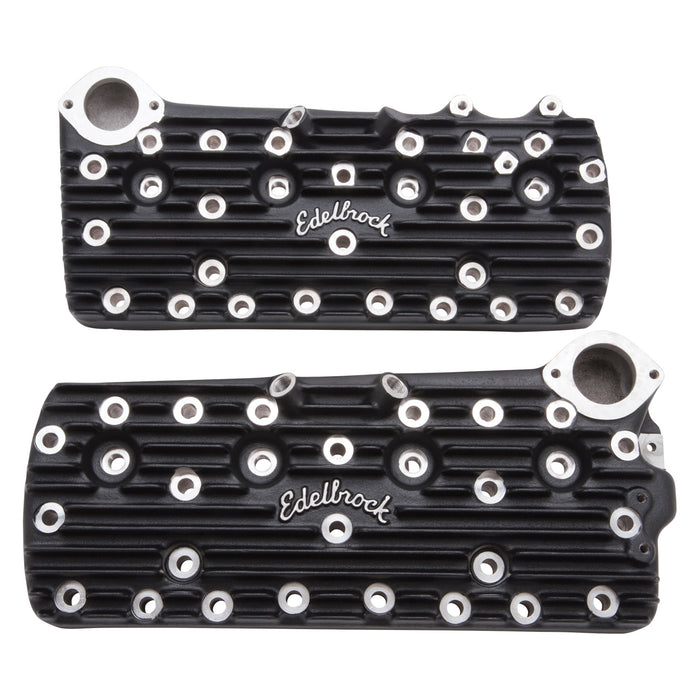

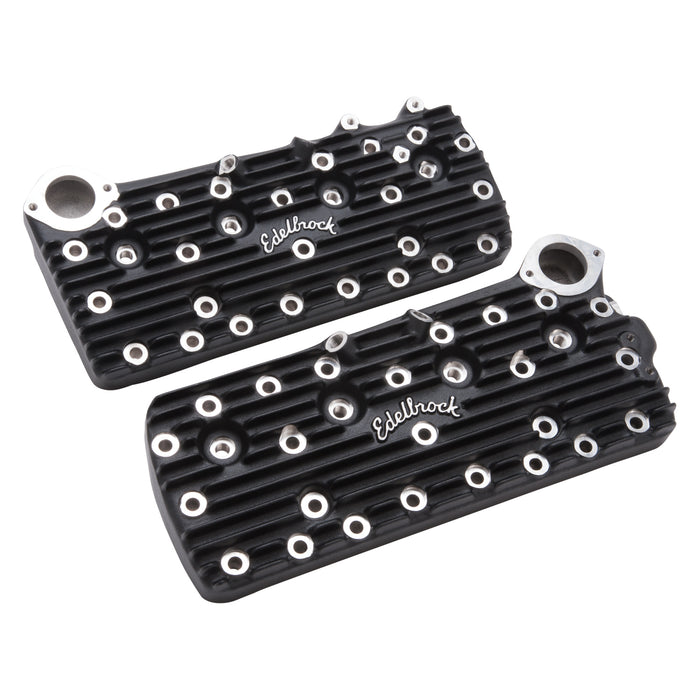

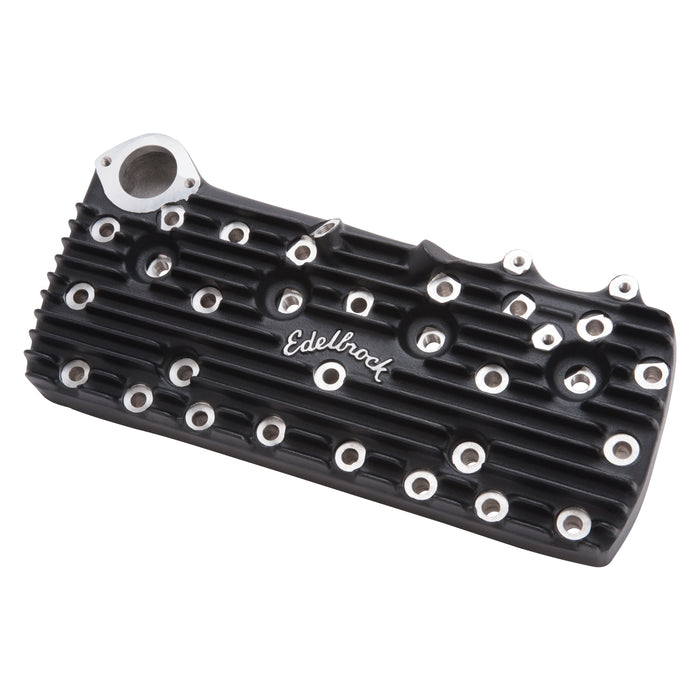

The Edelbrock #11153 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM | Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | The Edelbrock #11153 Ford Flatheads feature the original script logo design for Fords and Mercurys, the #1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. |
| Description_INV | Edelbrock Flathead Cylinder Head |
| Description_LAB | Ford Flathead 1949-53 Standard Chambers Script Logo Cylinder Heads |
| Description_MKT | The Edelbrock #11153 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke. |
| Description_TRA | Flathead head copper gaskets for 1938-48 use Victor #3036 or Fel-Pro #7548 or Edelbrock Head Gasket Set #7394 |
| Description_TRA | For 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393 |
| Description_TRA | Generator stud kit for 1938-48, use #8506 |
| Description_TRA | Head stud kit for 1938-48, use #8505 |
| Description_TRA | Head stud kit for 1949-53, use #8502 |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat |
| height | 3.5 |
| length | 26.6 |
| weight | 31.35 |
| width | 8.0 |
