Description

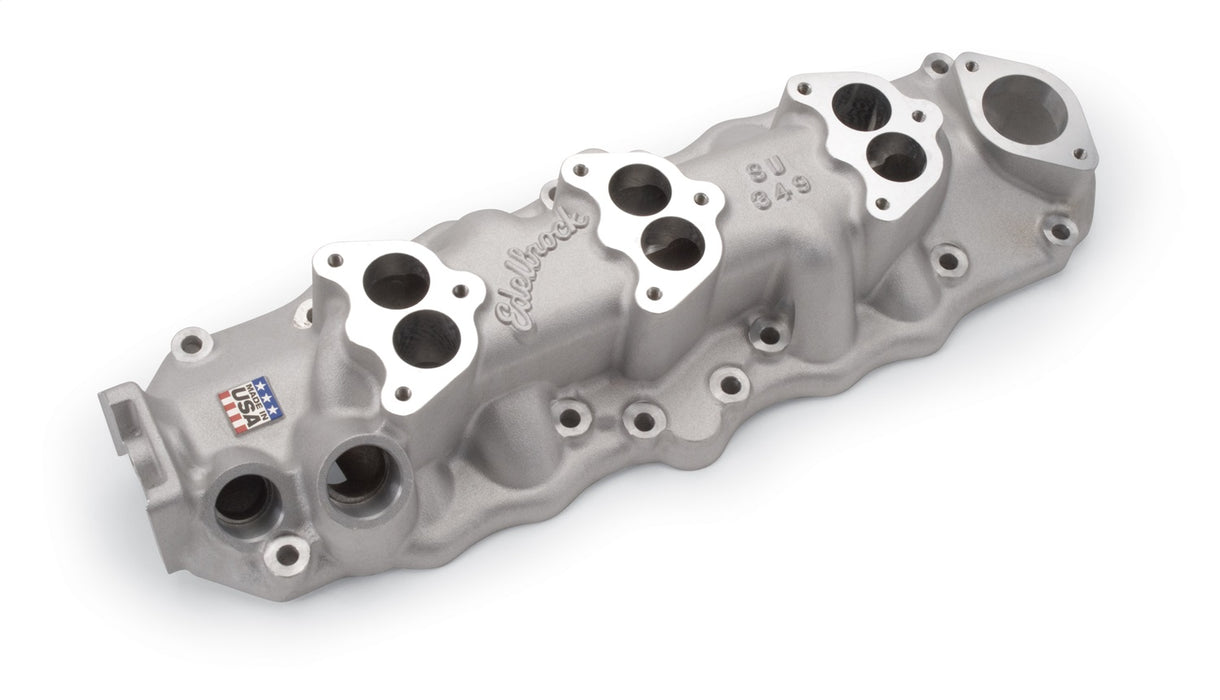

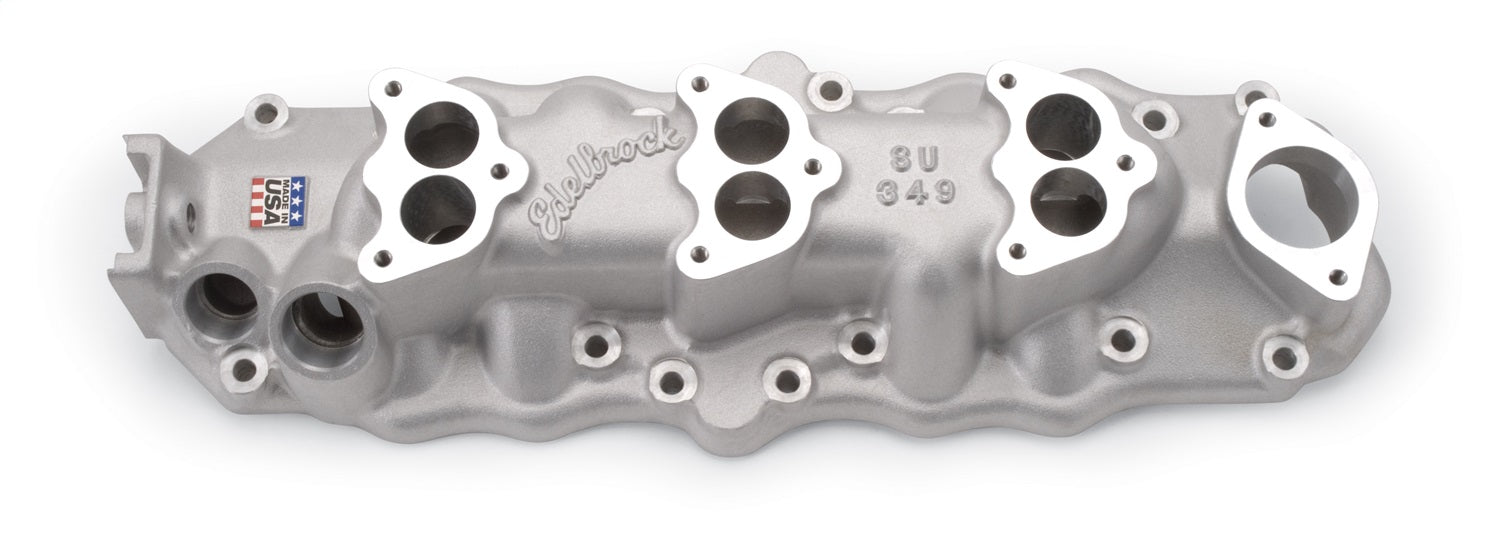

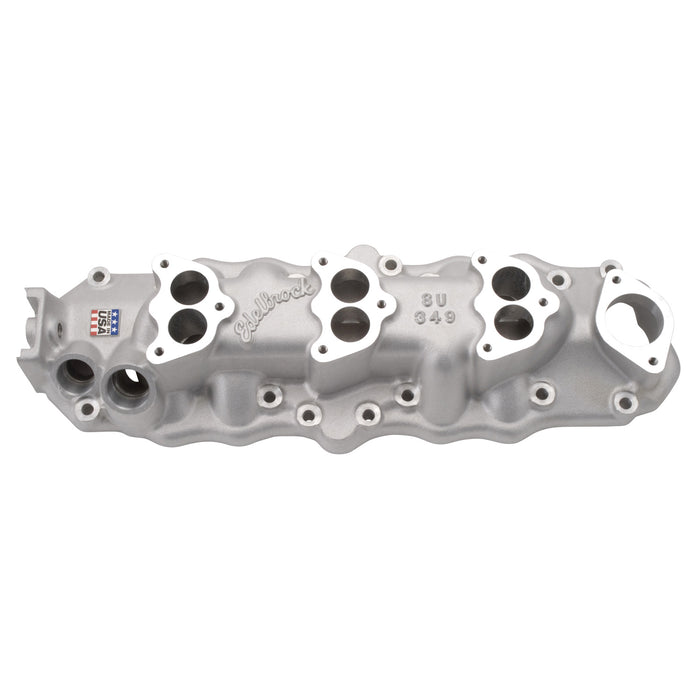

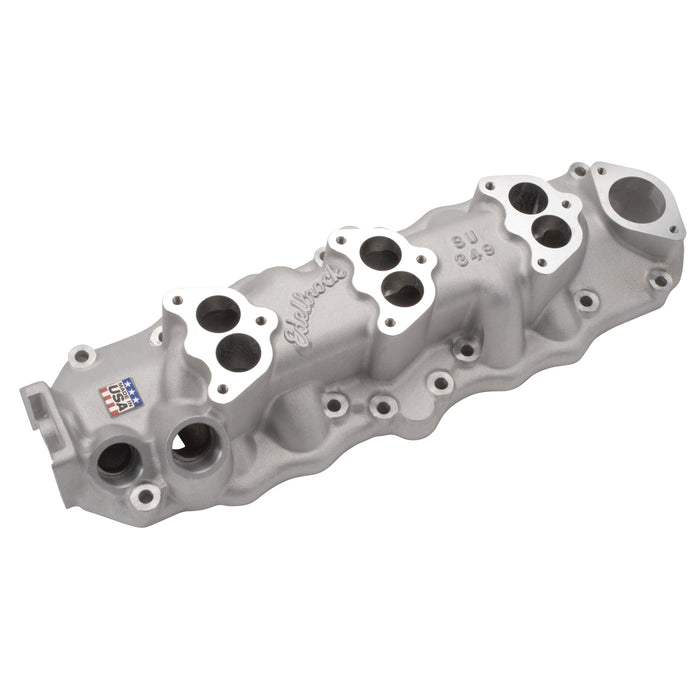

Edelbrock part #1109 Triple Deuce intake manifold is a reproduction of the vintage Edelbrock manifold #SU 349 allow the use of three 2-barrel carburetors on 1949-1953 Ford Flathead engines. #1109 features front road draft and 1-3/8" diameter oil fill bosses and a raised fuel pump boss. The Edelbrock Triple Deuce #1109 intake manifold accepts, Stromberg 3-bolt (97 type), Holley 3-bolt and Demon 98 carburetors.
Specifications
| Center Maximum Height | 3.660 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM | Ford:Flathead:239 (3.6L)/255 (4.2L);Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM | Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Triple Deuce Intake Manifold for 1949 to 1953 Ford/Mercury Flathead V8 allows the use of Three, 3-bolt / 2-Barrel Carburetors on a Late Flathead Engines. Features added front oil fill, road draft bosses, & raised fuel pump boss. |
| Description_EXT | Edelbrock Triple Deuce Intake Manifold for 1949 to 1953 Ford/Mercury Flathead V8 allows the use of Three; 3-bolt/2-Barrel Carburetors on a Late Flathead Engines. Features added front oil fill; road draft bosses; raised fuel pump boss. |
| Description_FAB | Features 1 3/8 in. Dia. Oil Fill Bosses |
| Description_FAB | Features A Raised Fuel Pump Boss |
| Description_FAB | Features Front Road Draft |
| Description_FAB | Reproduction Of The Vintage Edelbrock Manifold SU359 |
| Description_INV | Triple Deuce Flathead Manifold 1949-53 |
| Description_KEY | 1109; Ford; Flathead; Edelbrock; Intake Manifold; Intake; Manifold; Satin |
| Description_LAB | Triple Deuce Intake Manifold for 1949-53 Ford Flathead, Satin Finish |
| Description_LAB | Triple Deuce Intake Manifold for 1949-53 Ford Flathead; Satin Finish |
| Description_MKT | Edelbrock part #1109 Triple Deuce intake manifold is a reproduction of the vintage Edelbrock manifold #SU 349 allow the use of three 2-barrel carburetors on 1949-1953 Ford Flathead engines. #1109 features front road draft and 1-3/8" diameter oil fill bosses and a raised fuel pump boss. The Edelbrock Triple Deuce #1109 intake manifold accepts, Stromberg 3-bolt (97 type), Holley 3-bolt and Demon 98 carburetors. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Carb recommendations: 94 or 97 2-Bbl with 3-bolt flange |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.66", B-3.66 |
| Description_TRA | Port exit dimensions: 1.3" x 1.7" |
| Description_TRA | Recommended intake gasket: Edelbrock #7234 or Fel-Pro #MS2853 |
| Description_TRA | Use Edelbrock carb stud kit #8006 |
| Description_TRA | Use Edelbrock generator stud kit #8506 |
| Description_TRA | Use Edelbrock progressive linkage kit #1033 or non-progressive kit #1034 |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7234 or Fel-Pro # MS2853 • Carb recommendations: 94 or 97 2-Bbl with 3-bolt flange • Use Edelbrock progressive linkage kit # 1033 or non-progressive kit # 1034 • Use Edelbrock carb stud kit # 8006 • Use Edelbrock generator stud kit # 8506 • Manifold height: A-3.66in.; B-3.66 • Port exit dimensions: 1.3in. x 1.7in. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Ford Flathead V8 |
| finish | Satin |
| Flange Type | 2-Barrel 3-Bolt |
| Front Maximum Height | 3.660 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | Three |
| Position | N/A |
| Rear Maximum Height | 3.660 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | OEM |
| Series | Dual-Quad/Multi Carb |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Ford |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 14.2 |
| width | 14.75 |
