Edelbrock 1107 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_1107
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$916.69
-
Original price
$916.69
Original price
$916.69
$916.69
$916.69
-
$916.69
Current price
$916.69
Availability:
Out of stock
Description

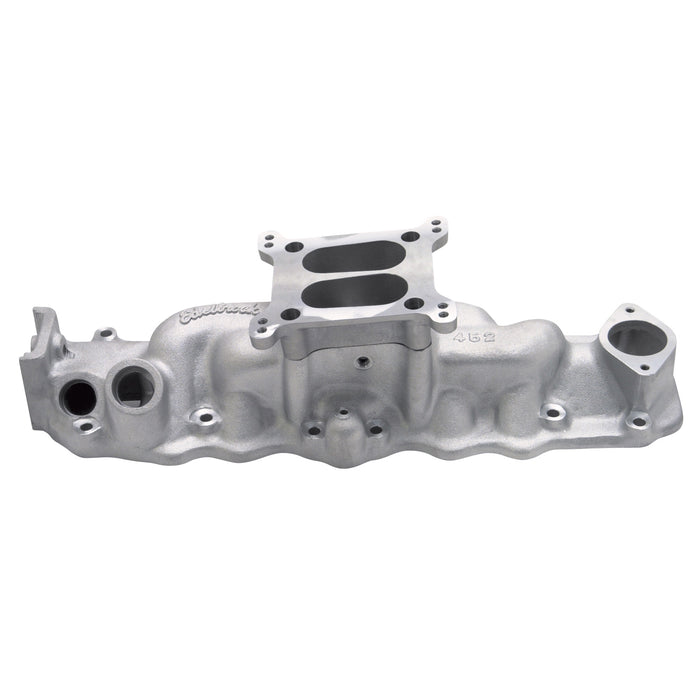

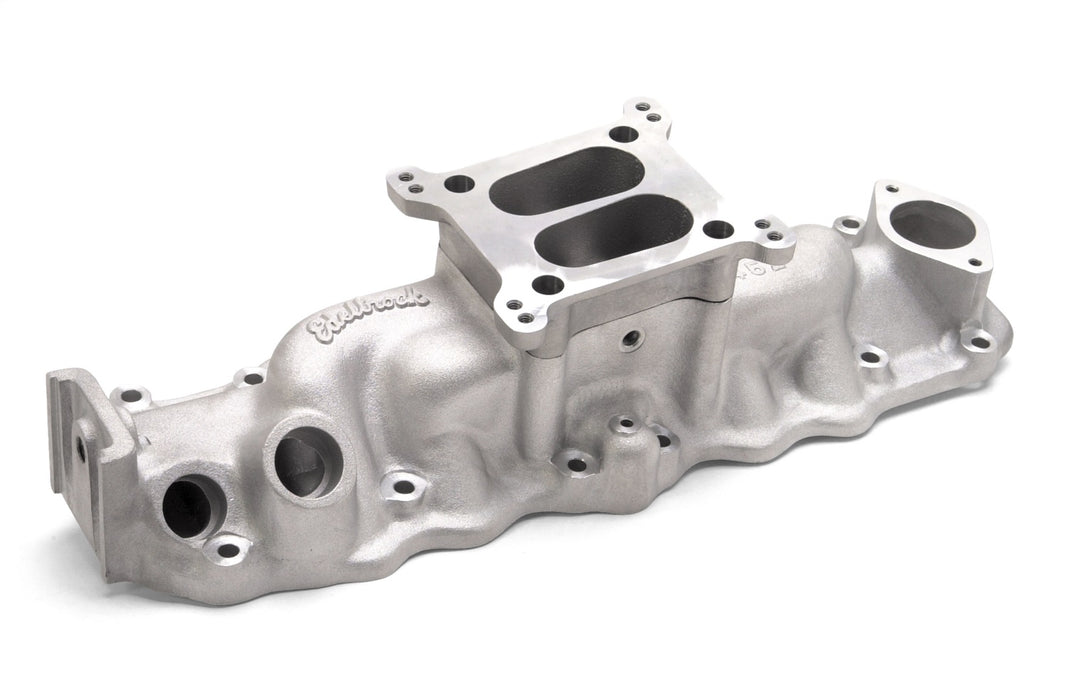

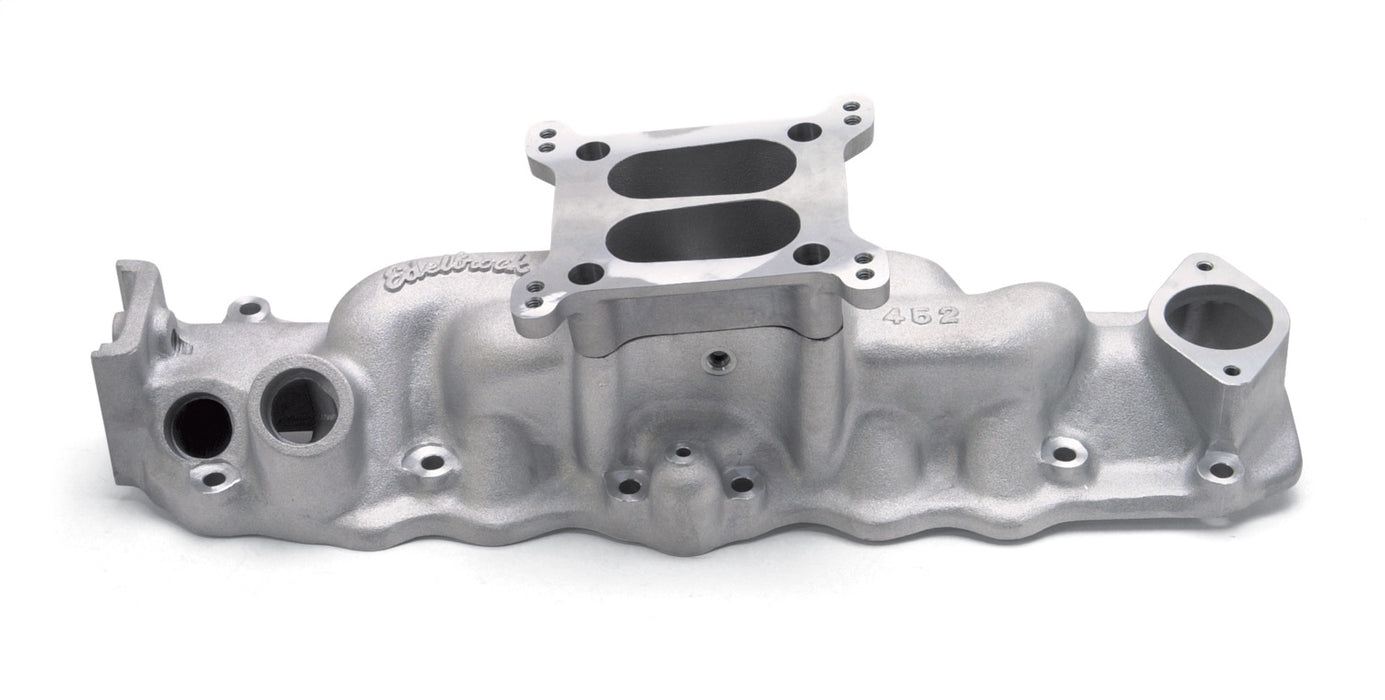

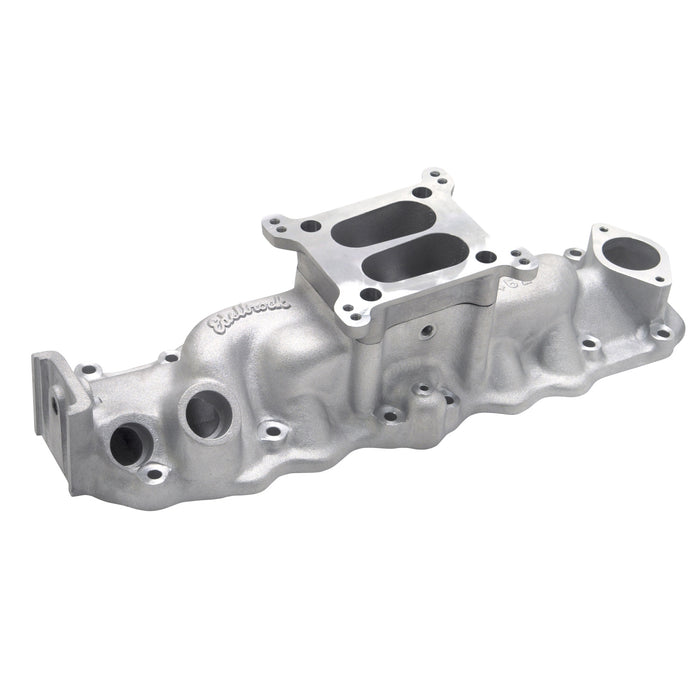

Edelbrock part #1107 Ford Flathead 4-barrel intake manifold for 1949-53 engines. This intake manifold allows the use of square-bore carbs such as the Edelbrock Performer Series or Thunder Series AVS 500. This is a reproduction of the vintage Edelbrock #452 two-piece manifold with a new carb adapter flange.
Specifications
| Center Maximum Height | 5.060 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM | Ford:Flathead:239 (3.6L)/255 (4.2L);Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM | Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock 4-Barrel Intake Manifold for 1949 to 1953 Ford/Mercury Flathead V8 will allow the use of commonly available Square-Bore (4150-Style) Carbs such as our Performer or AVS Series on the Late Ford Flathead Engine. |
| Description_FAB | Allows The Use Of Square-Bore Carbs |
| Description_FAB | Reproduction Of Vintage #452 Two-Piece Manifold |
| Description_FAB | With New Carb Adapter Flange |
| Description_INV | 4-barrel Flathead Manifold 1949-53 |
| Description_KEY | 1107; Ford; Flathead; Edelbrock; Intake Manifold; Intake; Manifold; Satin |
| Description_LAB | Ford Flathead 4-Barrel Intake Manifold for 1949-53 Ford Flathead, Satin Finish |
| Description_LAB | Ford Flathead 4-Barrel Intake Manifold for 1949-53 Ford Flathead; Satin Finish |
| Description_MKT | Edelbrock part #1107 Ford Flathead 4-barrel intake manifold for 1949-53 engines. This intake manifold allows the use of square-bore carbs such as the Edelbrock Performer Series or Thunder Series AVS 500. This is a reproduction of the vintage Edelbrock #452 two-piece manifold with a new carb adapter flange. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | Carb recommendations: Edelbrock AVS2, Performer or Thunder Series AVS 500cfm |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.06", B-6.06" |
| Description_TRA | Port exit dimensions: 1.3" x 1.7" |
| Description_TRA | Recommended intake gasket: Edelbrock #7234 or Fel-Pro #MS2853 |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7234 or Fel-Pro # MS2853 • Carb recommendations: Edelbrock AVS2; Performer or Thunder Series AVS 500cfm • Manifold height: A-4.06in.; B-6.06in. • Port exit dimensions: 1.3in. x 1.7in. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.060 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 24.0 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 6.060 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Flathead |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| weight | 14.95 |
| width | 12.0 |
