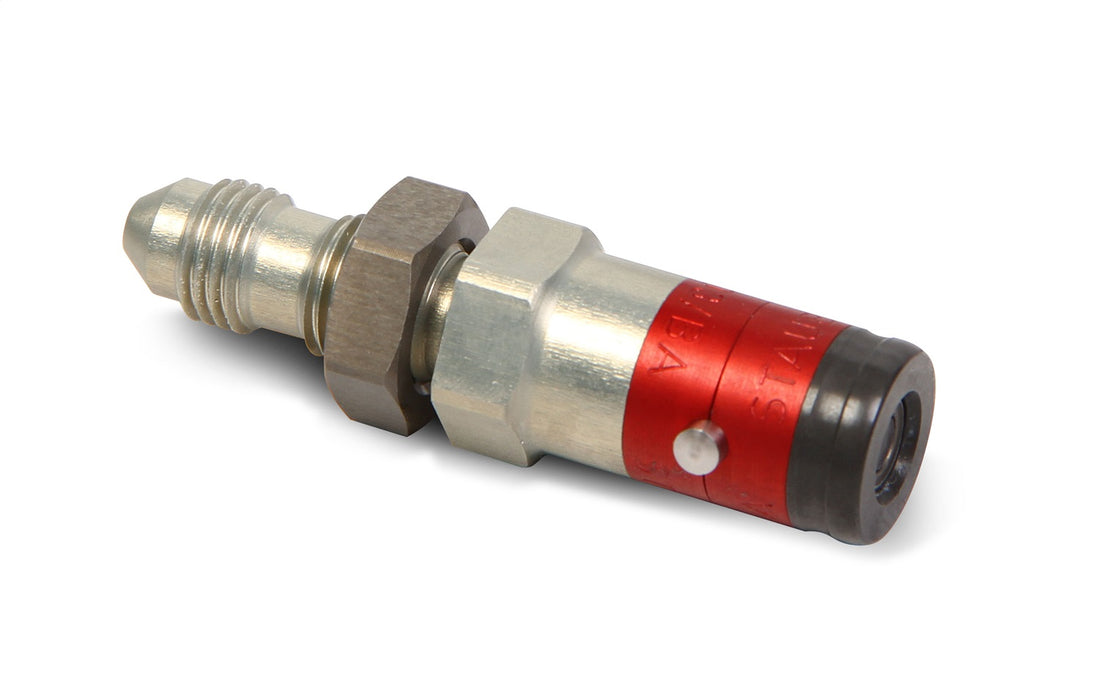

Earl's Performance JE2703PMERL SPH Bayonet Locking Dry Break
SKU ds_CFRL_JE2703PMERL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$695.68
-
Original price
$695.68
Original price
$695.68
$695.68
$695.68
-
$695.68
Current price
$695.68
Availability:
Out of stock
Description
Staubli SPH aluminum twist lock dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon Viton(TM)/FPM coated seals are for use with oils, fuels (non-ethanol), mineral greases and nitrogen and have an operating temperature -15F to 400F. Ethylene-Propylene seals (EPDM) are designed to work with all Glycol base brake fluids with operating temperature -4F to 302F. Viton(TM) is a registered trademark of DuPont(TM) Performance Elastomers.
Specifications
| Bend Angle | Straight |
| Burst Strength | N/A |
| Center Line Radius | N/A |
| Color | Orange |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DES | SPH Bayonet Locking Dry Break |
| Description_EXT | SPH Bayonet Locking Dry Break; Size: -3AN Male Socket to 3/8-24 in. JIC End Fitting; EPDM Seals; Panel Mount; |
| Description_FAB | Compact Size And Light Weight |
| Description_FAB | High Strength Aluminum Construction |
| Description_FAB | Valve Design Ensures Optimal Flow |
| Description_INV | Socket-Panel Mount with 3/8-24 JIC End |
| Description_LAB | Proposition 65 |
| Description_MKT | Staubli SPH aluminum twist lock dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon Viton(TM)/FPM coated seals are for use with oils, fuels (non-ethanol), mineral greases and nitrogen and have an operating temperature -15F to 400F. Ethylene-Propylene seals (EPDM) are designed to work with all Glycol base brake fluids with operating temperature -4F to 302F. Viton(TM) is a registered trademark of DuPont(TM) Performance Elastomers. |
| Description_SHO | Hose Coupler |
| finish | Bronze |
| height | 0.7 |
| Inlet Diameter | N/A |
| Leg/Straight Length | N/A |
| length | 4.35 |
| LTL | N |
| Outlet Diameter | N/A |
| Wall Thickness | N/A |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 0.03 |
| width | 1.95 |
