Eagle Specialty Prod 3SR235835365 4340 BILLET CRANK NISSAN SR20
SKU ds_CFQW_3SR235835365
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,574.58
-
Original price
$2,574.58
Original price
$2,574.58
$2,574.58
$2,574.58
-
$2,574.58
Current price
$2,574.58
Availability:
Out of stock
Description

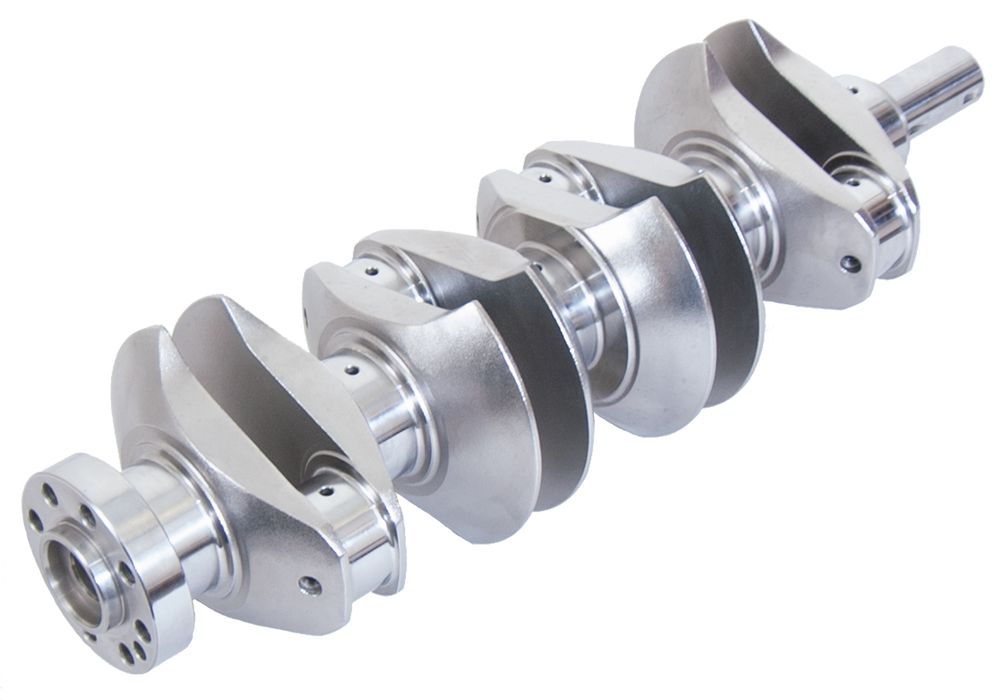

Eagle knife-edged Billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Specifications
| Description_ASC | Crankshaft must be balanced to match your specific Rods and pistons. |
| Description_ASC | Use with 1.154" pin height pistons. |
| Description_ASC | Use with 5.365" rods and pistons with 1.154" pin height. |
| Description_DEF | Engine Crankshaft |
| Description_DES | 4340 BILLET CRANK NISSAN SR20 |
| Description_EXT | Billet 4340 Steel Crank - NISSAN SR20, 3.583" Stroke, KNIFE-EDGED COUNTERWEIGHTS. |
| Description_INV | ESP 4340 Billet Crank |
| Description_MKT | Eagle knife-edged Billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. |
| Description_SHO | 4340 Billet Crank |
| Engine Stroke | 3.583 |
| height | 6.0 |
| Intended Balance | internal |
| length | 24.0 |
| LTL | N |
| Material | Billet 4340 Steel |
| Minimum Rod Length | 5.365" |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Short Label | prop65_warning.jpg |
| Prop 65 Yes/No | Yes |
| Title | ESP 4340 BILLET CRANK NISSAN SR20 |
| weight | 35.0 |
| width | 6.0 |
