Description
Features
- Allows for installation of SSC1 LED pods into the trailer hitch.
- Provides high-power reverse light and red accent light.
- Simple 5-minute installation with no need for custom wiring or routing wires.
- Optional SafetyStrobe brake light strobing.
- Designed and assembled in USA.
Overview. Add significantly more light output when backing up at night with our Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one SSC1 LED pod in your 2-inch trailer hitch receiver adding a high-power reverse light additional running light. With the included wiring harness this kit connects to your vehicle's factory trailer hitch wiring for simple everyday operation.
Brighter Backlight. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs the SSC1 included in this kit provides an additional reverse light that's several times brighter than stock bulbs alone. Plus they automatically come on when the vehicle is put in reverse!
Simple Installation. The patent-pending snap-fit design allows you to install this mount in minutes without any drilling or need for a hitch pin. Simply insert the HitchMount into your trailer hitch receiver and the snap-fit side mounts will snap into place. Installation couldn't be easier and takes less than five minutes!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

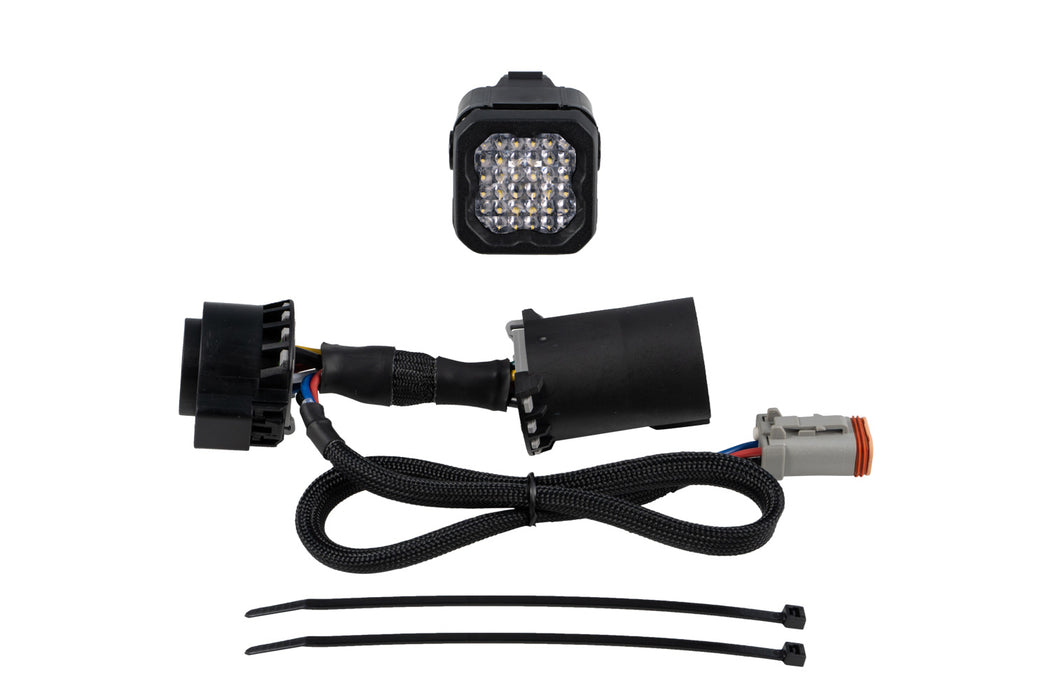

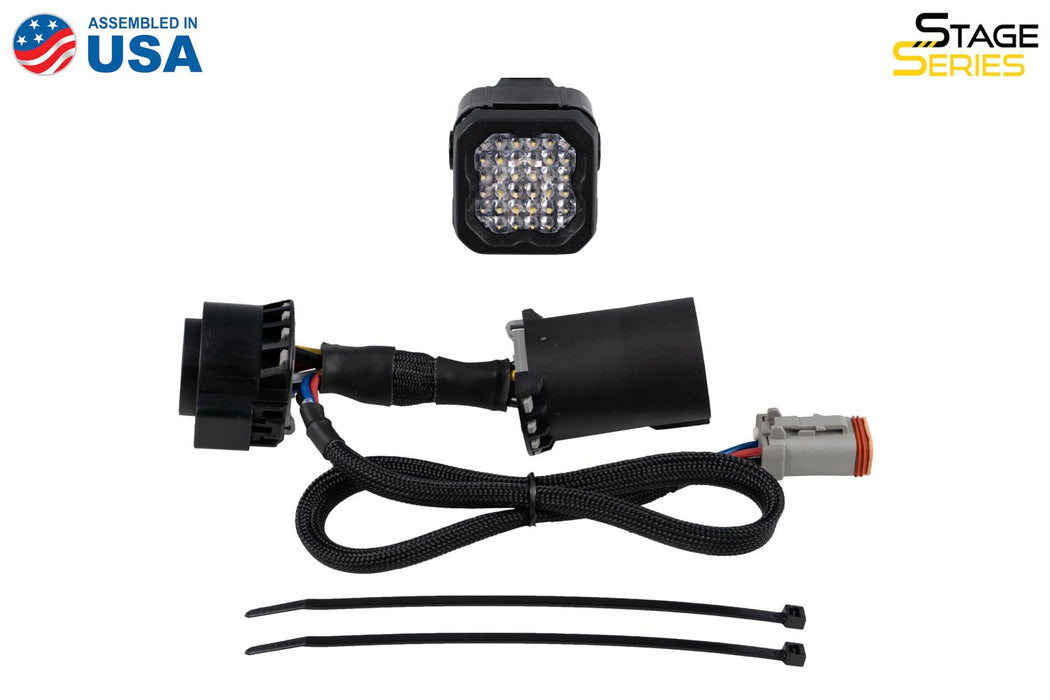

Included in the box:
- One (1) SSC1 Sport HitchMount LED Pod
- One (1) 7-Pin trailer single output harness
- Two (2) Zip ties
- Installation guide
Specifications
| beam_angle | Flood 80 Degree x50 Degree |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| Connector | Deutsch DT Input |
| height | 3.0 |
| last_update | 2022-11-15 19:28:45 |
| last_update | 2023-06-21 12:38:01 |
| length | 7.75 |
| LUX | 400 cd |
| material_l | Polycarbonate |
| material_l | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| part_number_type | Offroad |
| sold_as | Each |
| vehicle_type | Jeep|Truck/SUV |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP67 Weatherproof |
| watt | Main Beam: 12.8 Backlight: 0.3 |
| weight | 0.8 |
| width | 4.25 |
