Diode Dynamics DD7335 SS5 Grille CrossLink Lightbar Kit for 2017-2020 Ford Raptor Sport White Combo Diode Dynamics
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Features
- Bolt-on fitment on 2017-2020 Ford Raptor.
- Ultra-high intensity custom-engineered TIR optics.
- Selectable backlight color with eight color options.
- Torture-tested heavy-duty construction.
- Control through factory aux switch bank using the included harness.
Overview
Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ford Raptor 2017-2020 from Diode Dynamics allows you to mount a six-pod CrossLink lightbar on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. Note: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable. This kit was designed for a curved configuration.

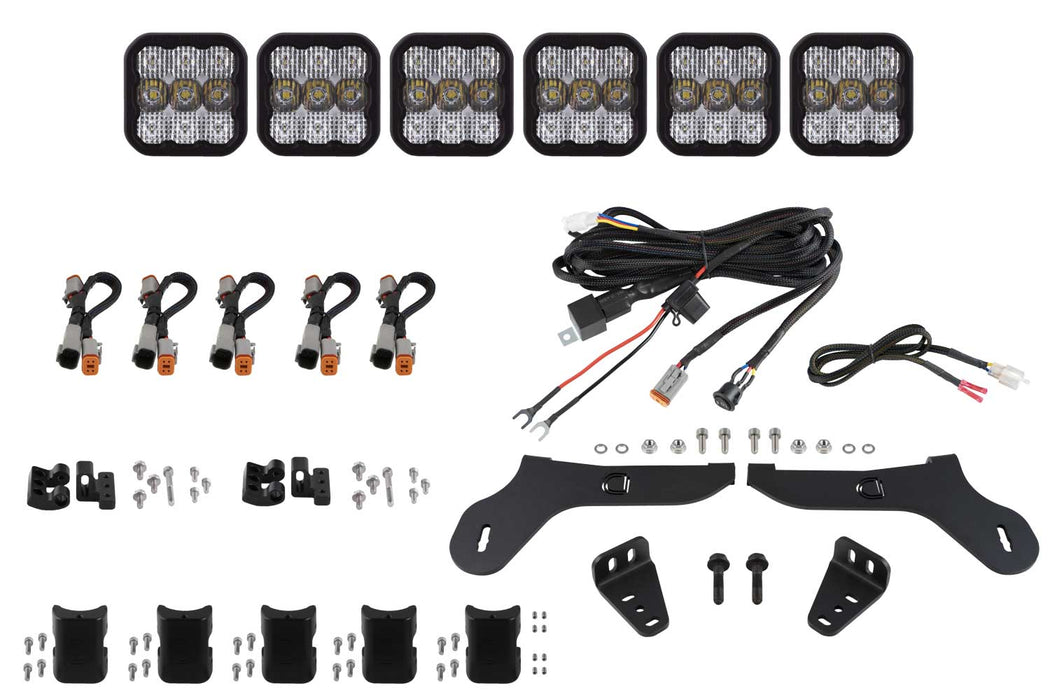

Included in the box:
- Two (2) Application-specific heavy-duty steel brackets
- Two (2) Low mount heavy-duty steel brackets
- Six (6) Stage Series 5" LED pods
- One (1) Heavy-duty single-output 4-pin wiring harness or One (1) Ultra heavy-duty single-output 4-pin wiring harness
- Five (5) Heavy-duty CrossLink splitter wiring harnesses or Four (4) Ultra heavy-duty CrossLink splitter wiring harnesses and One (1) Ultra heavy-duty terminating wiring harness
- One (1) CrossLink endmount kit
- Five (5) CrossLinks with hardware
- Installation Guide
Resources
Installation InstructionsSpecifications
| beam_angle | Combo (Driving and Flood) |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| Connector | Deutsch DT Input |
| height | 12.0 |
| last_update | 2022-11-15 19:28:28 |
| last_update | 2023-06-21 12:41:07 |
| length | 18.0 |
| lumens | 3 800 Lumens |
| LUX | 81 600 cd |
| material_l | Polycarbonate |
| material_l | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
| part_number_type | Offroad |
| sold_as | Each |
| Universal | No |
| vehicle_type | Truck/SUV |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP69K Waterproof, High Pressure |
| watt | Main Beam: 40 Backlight: 3.17 |
| weight | 24.05 |
| width | 15.0 |
