Diode Dynamics DD6362 Colorado/Canyon SS30 Stealth Lightbar Kit For 15-Pres Colorado/Canyon Diode Dynamics Amber Combo
Albertan Owned
Financing Available
Top-Quality Suppliers
Description

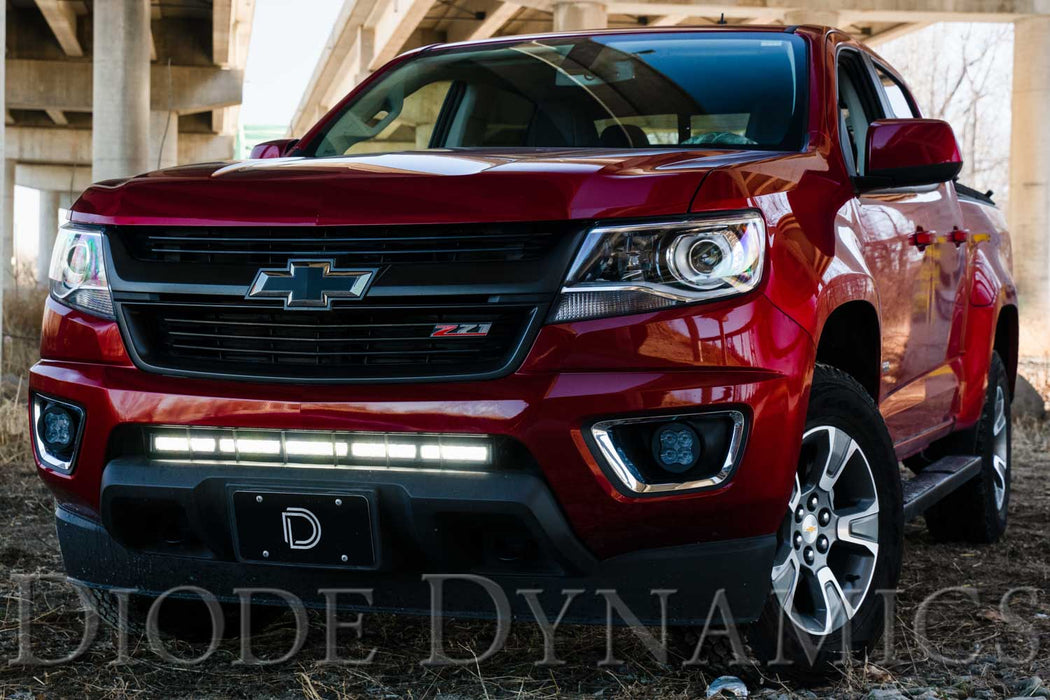

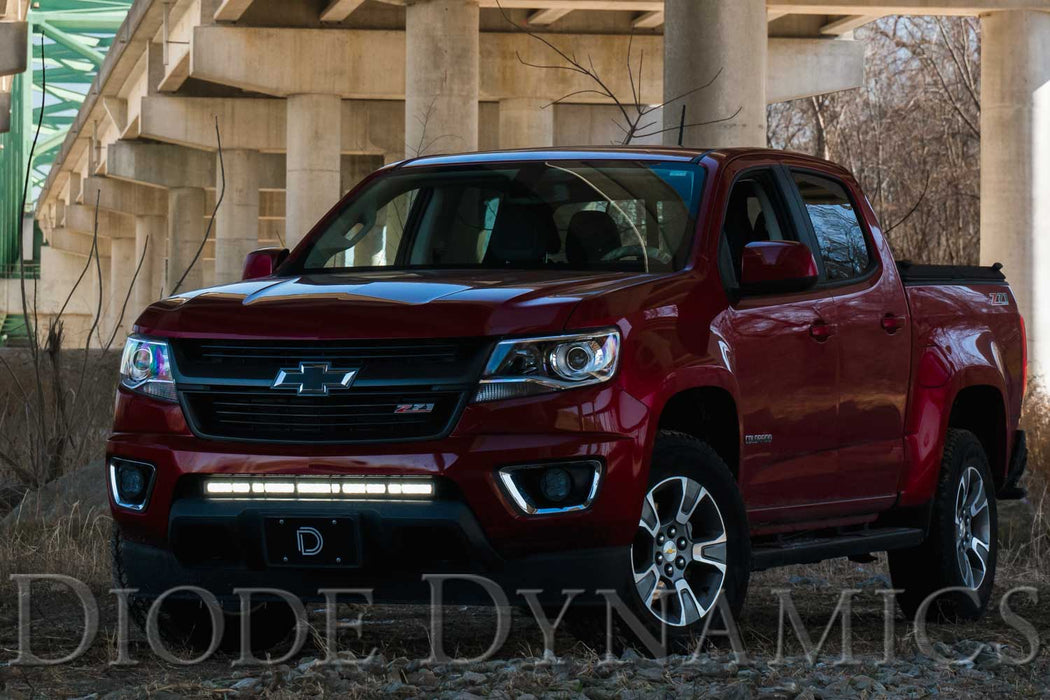

Perfect fitment. The Stealth LED Light Bar Kit for the 2015-2020 Chevrolet Colorado and GMC Canyon from Diode Dynamics allows you to easily mount a 30 inch light bar in the factory lower bumper opening.

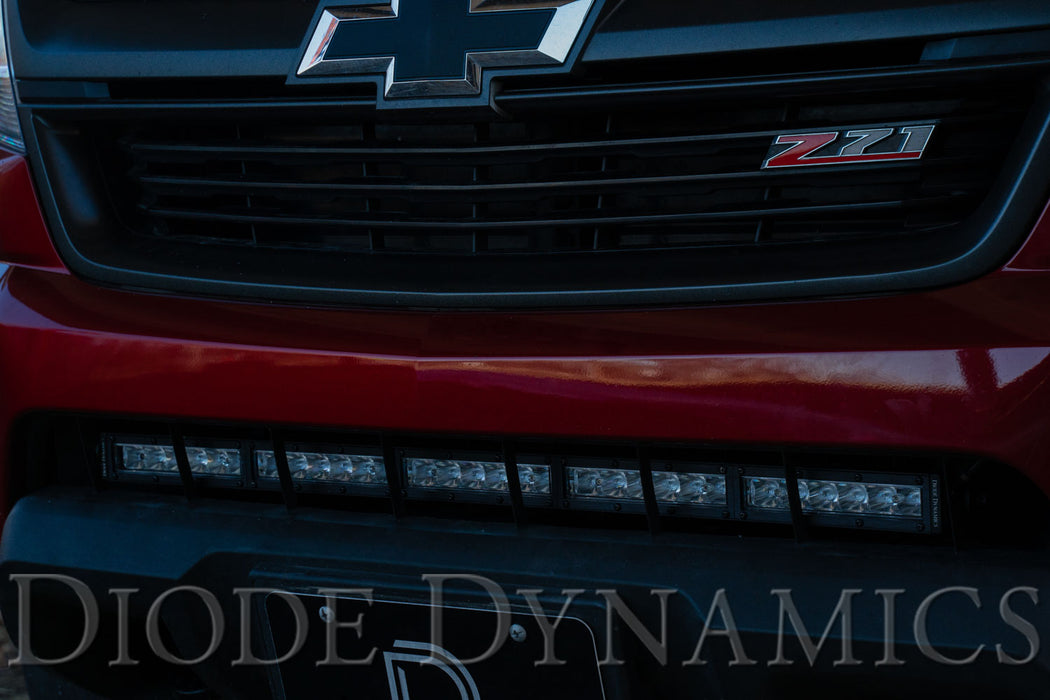

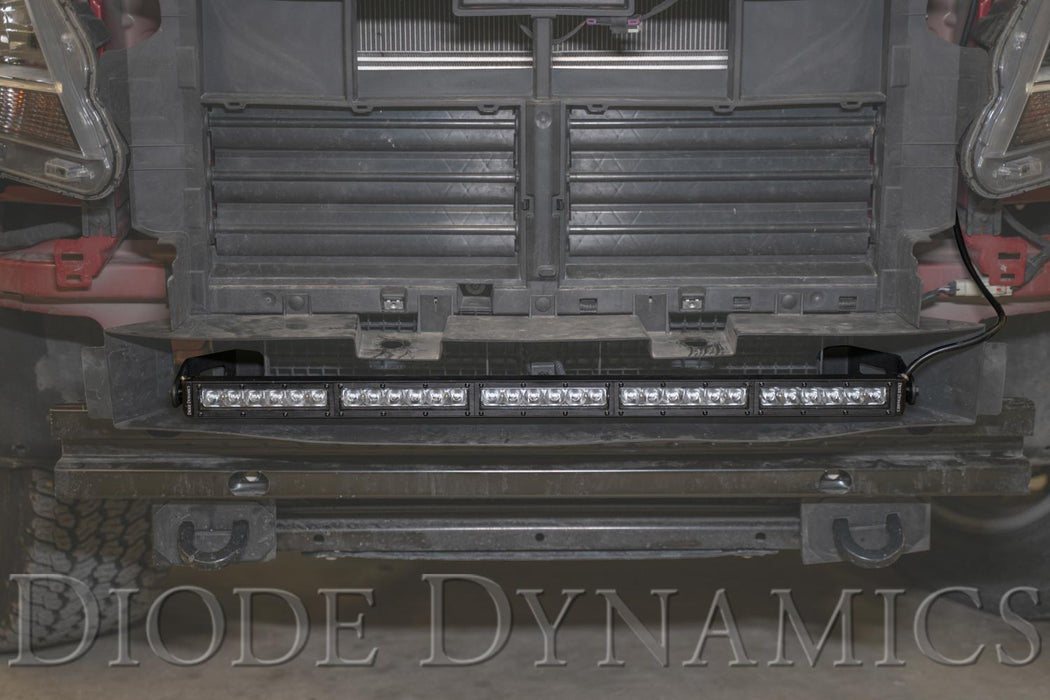

These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean OEM-like appearance.
Designed For Performance. Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package.
Our light bars shine light in a highly-functional and useful beam pattern much more focused than older LEDs on the market.

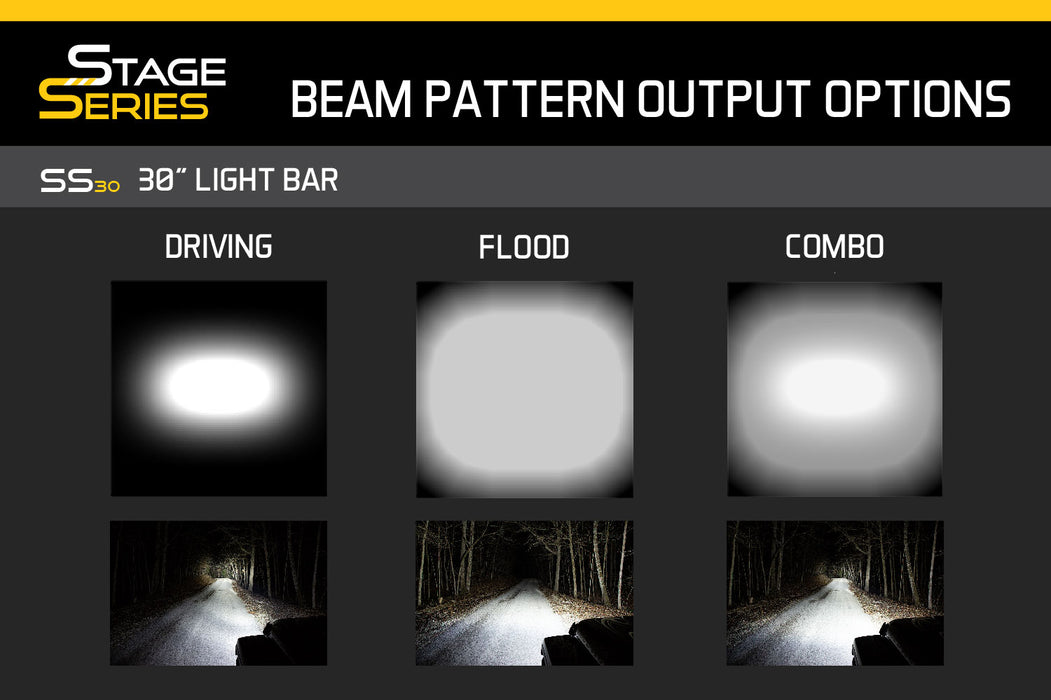

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Flood pattern was designed to provide uniform even illumination and a full 80Wx50H degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot our flood optic is a true optically designed spread resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds a backup or reverse light or to light up a worksite.
The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread.
The Stage Series 30 Inch Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.
Experience. After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor we assemble and engineer products ourselves in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.
We pride ourselves in offering only quality LED products that will exceed your expectations.
Features:
- Direct fitment on 2015-Present Chevrolet Colorado and GMC Canyon
- Allows you to mount one 30 inch light bar in the lower grille opening
- CAD-designed for perfect fitment and OEM-like appearance
- Utilizes existing mounting points for easy installation - no cutting or drilling required
- Highly durable powdercoated steel construction
- Plug-and-play wiring harness included to power light bars
- Bar Length: 30 Inch
- Light Pattern: Combo
- LED Color: Amber
- Lumens: 5700
- Fits: 2015-Present Colorado/Canyon
- Sold As: Kit

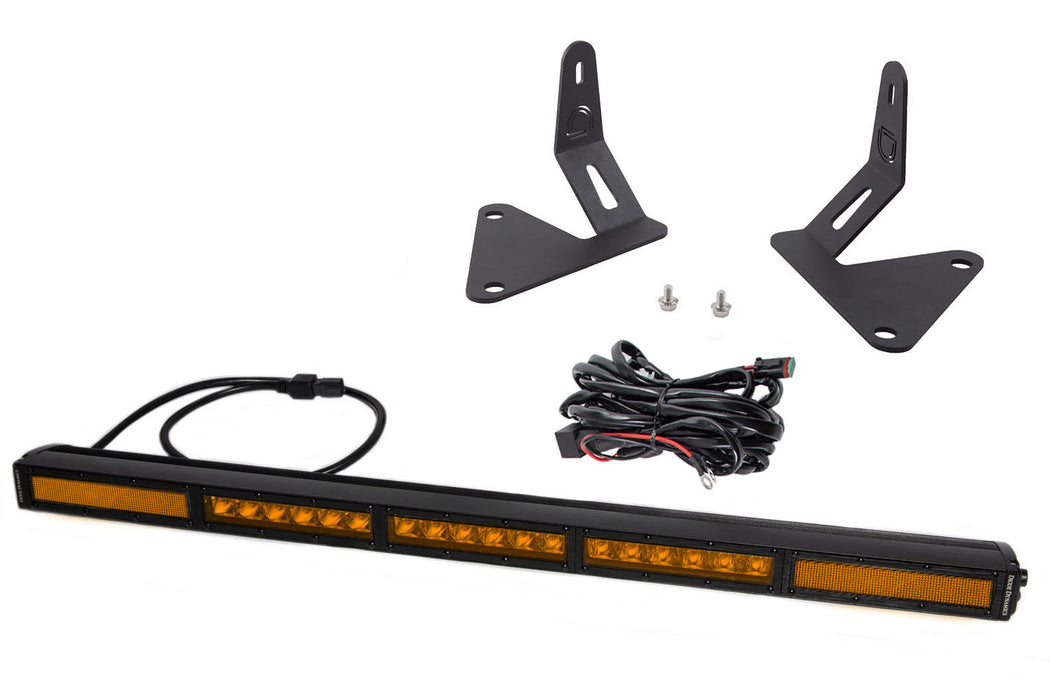

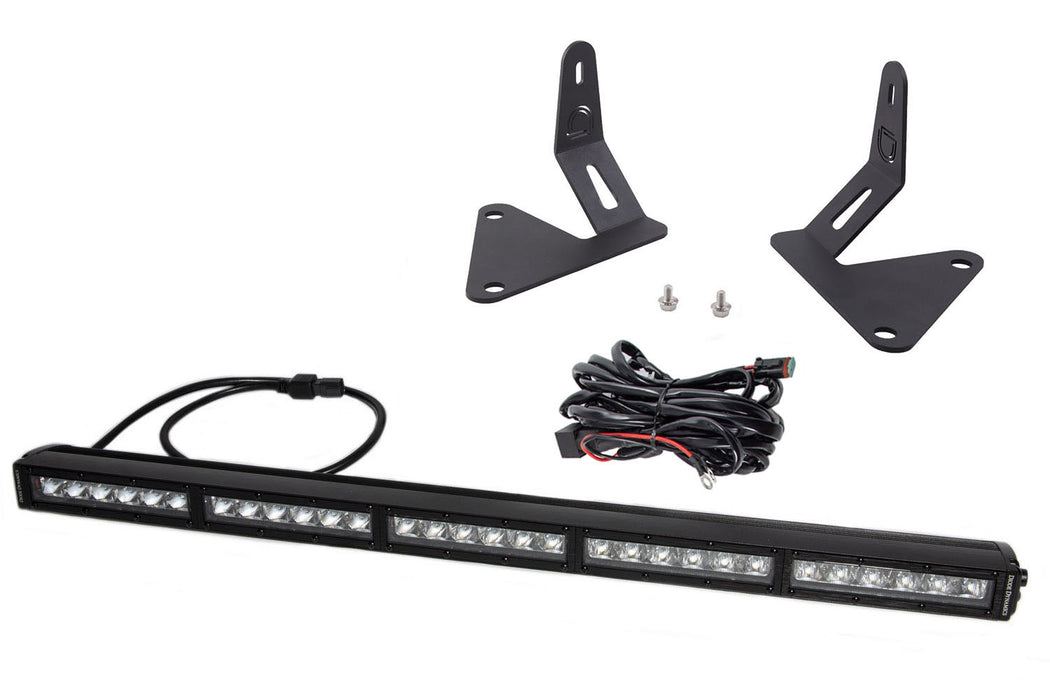

Included in the box:
- Two (2) Application-Specific Heavy-Duty Steel Brackets for Installation on 2015-Present Colorado/Canyon
- One (1) SS30 Stage Series 30 Light Bar
- One (1) Heavy Duty Single-Output Harness
- All Necessary Hardware
- Installation Guide
Resources
Installation InstructionsSpecifications
| bar_length | 30 Inch |
| beam_angle | Combo (Driving and Flood) |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | Amber |
| Connector | Deutsch DT Input |
| height | 36.0 |
| last_update | 2022-11-15 19:01:27 |
| last_update | 2023-03-28 12:09:37 |
| last_update | 2023-06-21 16:55:05 |
| length | 9.0 |
| lens_material | Polycarbonate |
| light_pattern | Combo |
| lumens | 5700 Lumens |
| material_l | Aluminum |
| material_l | Aluminum PCB |
| part_number_type | Offroad |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| volts | 9-16V |
| Warranty | 8 Year Warranty |
| waterproof_rating | IP68 |
| weight | 13.42 |
| width | 9.0 |
