Diode Dynamics DD6014 Ram 2013 Standard Stage Series 6 Inch Kit Amber Driving Diode Dynamics
Albertan Owned
Financing Available
Top-Quality Suppliers
Description

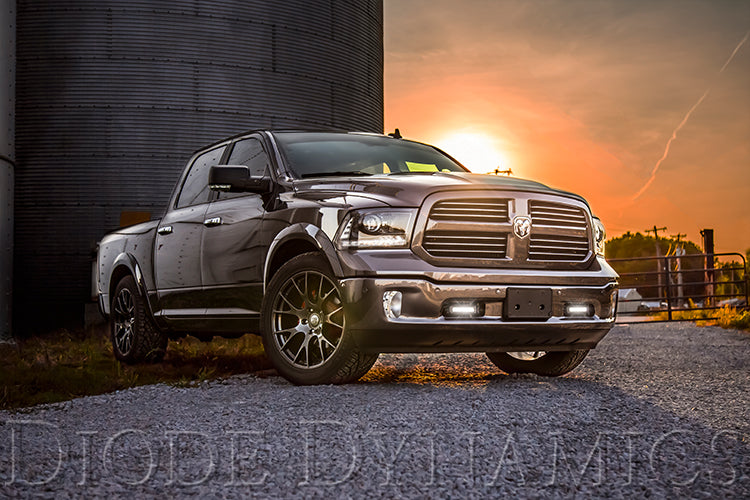

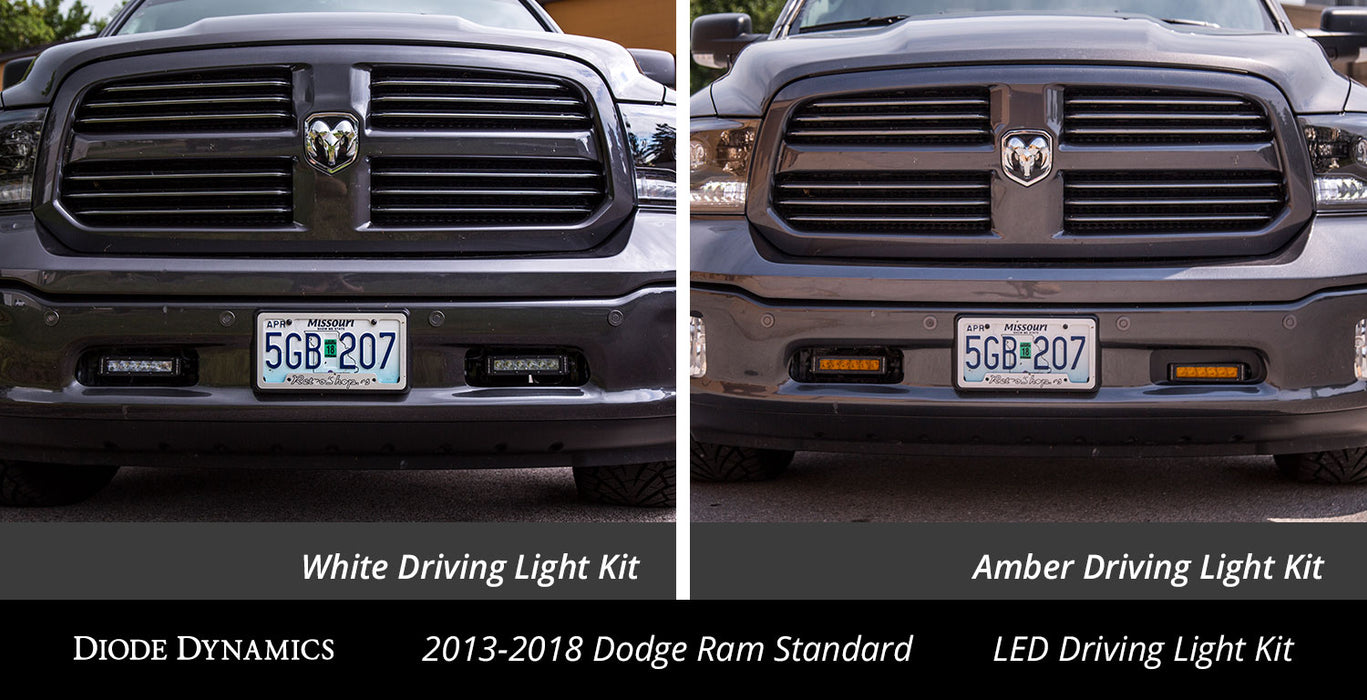

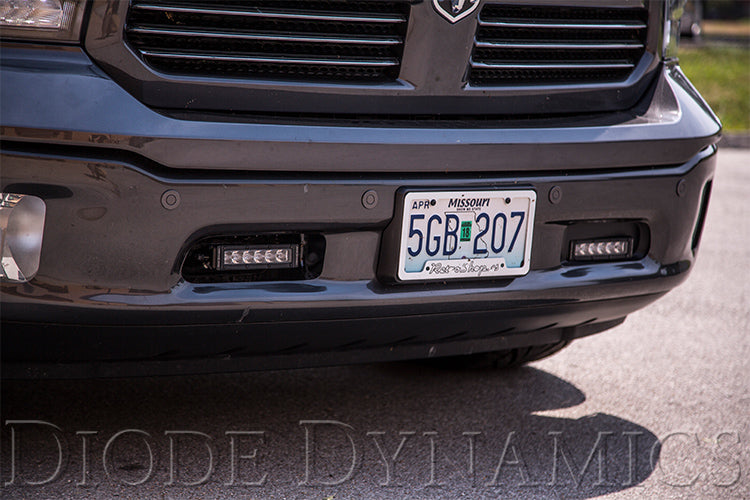

Perfect Fitment. The LED Driving Light Kit for the 2013-2018 Dodge Ram with Standard bumper from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6 Inch Light Bars in the bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!
Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

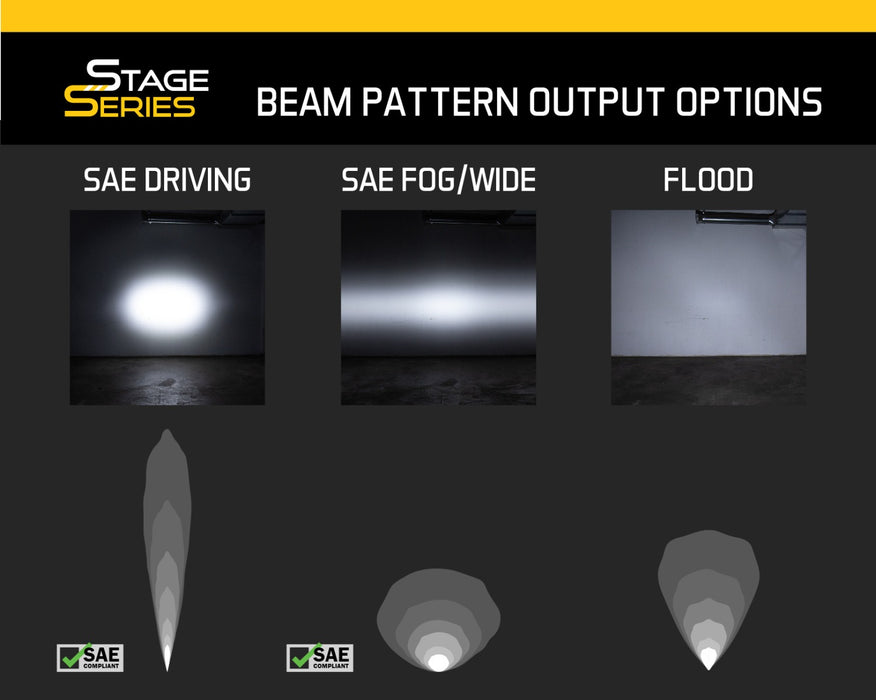

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
- The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
- The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
Features
- Bar Type Two (2) Single Row Straight
- Bar Length 6 Inch
- Lens Color Amber
- Light Pattern Driving
- Lux 330
- Brackets Inluded Yes
- Direct fitment on 2013-2018 Dodge Ram Standard
- Street-legal output as Driving or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability)
- Dual output wiring harness included.
- Highly durable powdercoated steel construction
- Utilizes existing mounting points and hardware for a simple installation
- CAD-designed for perfect fitment

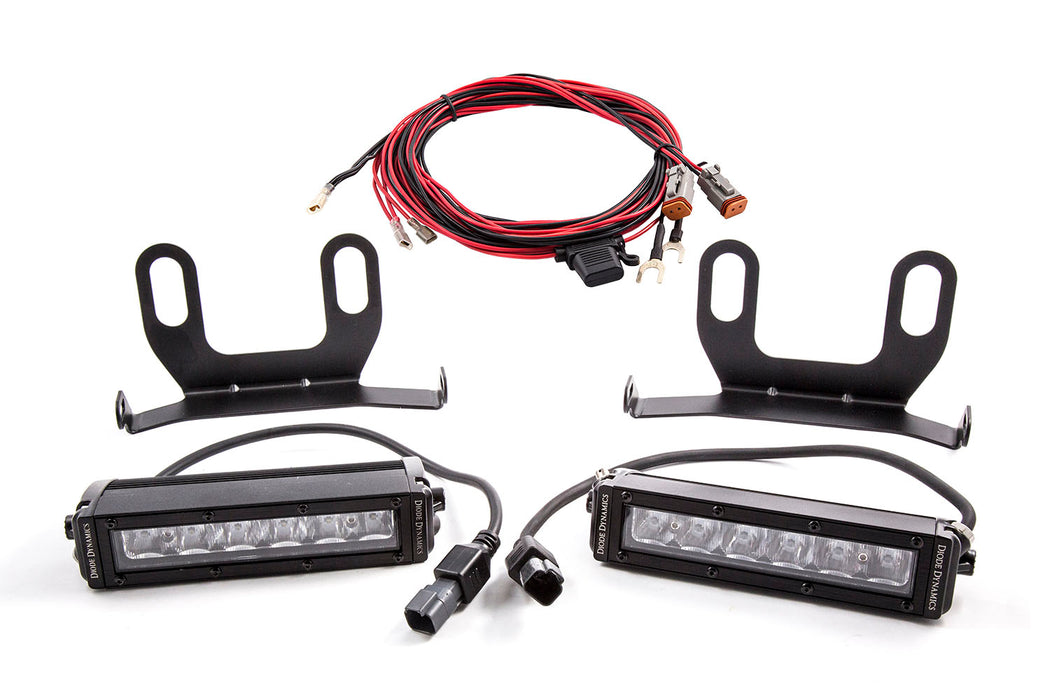

What's Included In the Box:
- Two (2) Application-specific heavy-duty steel brackets for installation on 2013-2018 Ram Standard
- Two (2) SS6 Stage Series 6 Inch Light Bars
- One (1) Dual Output Harness with toggle switch
- All Necessary Hardware
- Installation Guide
- Quantity: Pair (Left and Right Side)
- Warranty: 8 year warranty
- 100 percent Satisfaction Guarantee
Fitment
- This kit was designed for the 2013-2018 Ram with the Standard bumper
- Make: Ram Model: 1500/2500/3500
- Years: 2013, 2014, 2015, 2016, 2017, 2018
- Electrical Compatibility: No electrical issues (tested and confirmed)
Specifications
- Measured Lumens: 2280
- Intensity (cd): 47,000
- Color Temp (CCT): 2000K, 6000K
- Beam Angle: Wide, 100 Degree x8 Degree, Driving, 20 Degree x8 Degree
- Power (watts): 26.6
- Operating Voltage: 9-16V
- Current (amps at 13.2V): 1.9
- Bracket Thickness: 14 ga
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
- Cooling: Passive, heatsink
- Intrusion Ratings: IP68 Waterproof
Specifications
| bar_length | 6.0 Inch |
| bar_type | Single Row Straight |
| beam_angle | 20x8 Degrees |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | Black |
| Connector | Deutsch DT Input |
| finish_l | Powdercoat |
| hardware_included | Yes |
| height | 36.0 |
| last_update | 2022-11-15 18:37:05 |
| last_update | 2023-06-21 19:11:59 |
| length | 5.0 |
| lens_color | Amber |
| lens_material | Polycarbonate |
| light_pattern | Driving |
| lumens | 800 Lumens |
| LUX | 330 Lux |
| material_l | Steel |
| part_number_type | Offroad |
| Series | Stage Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP68 |
| weight | 7.77 |
| width | 5.0 |
