Diode Dynamics DD5174P-esf-1322 Elite Series Fog Lamps for 2017-2022 Ford Super Duty Pair, Yellow (3000K) Diode Dynamics
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards the Elite Series fog light delivers up to 5 times more output than halogen lamps.
With a plug-and-play installation this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.

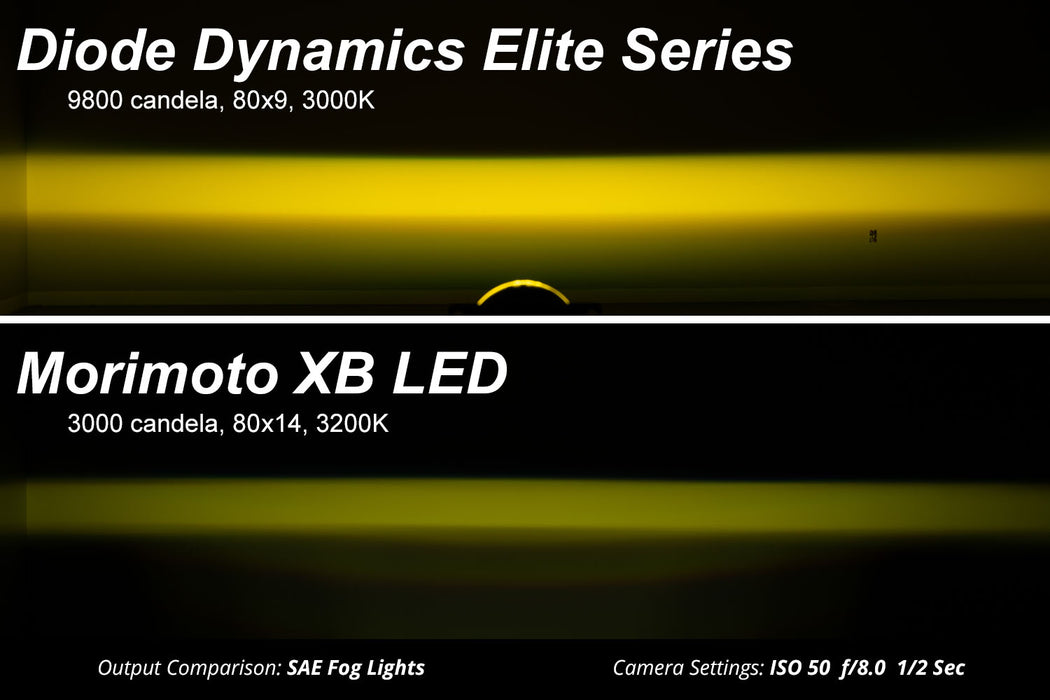

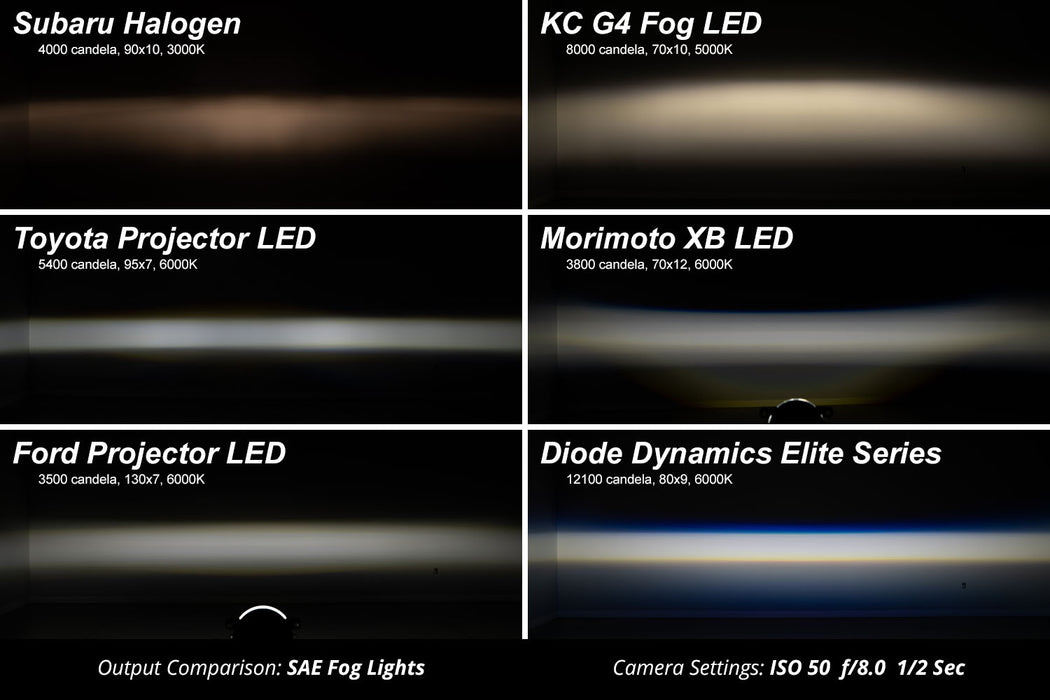

Output that Outperforms. The Elite Series Fog Lamp optic produces an asymmectric light pattern that is wider than any other aftermarket fog lamp on the market with an 100-degree spread of intense light.
Even with this extremely wide band of light the pattern is extremely smooth throughout with sharp cutoff to avoid glare to other drivers including a color flicker at the very edge of the pattern.
Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.

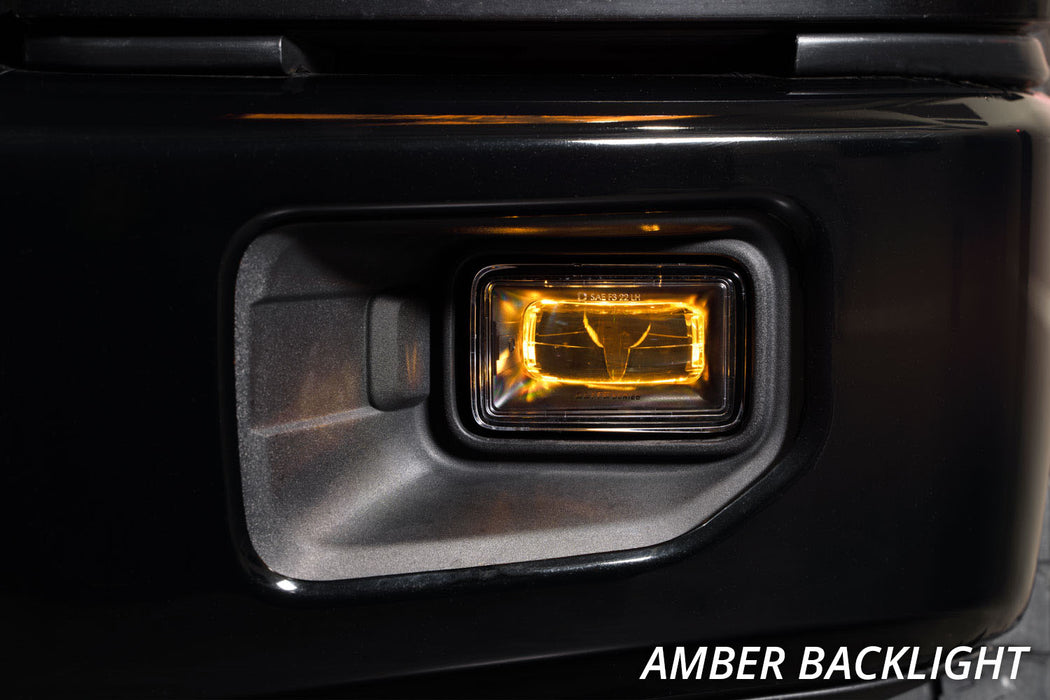

Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs.
This feature can be wired to any constant 12-volt source for your desired vehicle function using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.
Features:
- Provides double the output compared to factory halogen fog light
- Sharp asymmetric beam pattern achieves 100-degree total spread
- Distinctive integrated amber backlight
- Road-legal fog light (SAE F3 compliant)
- Plug and play main beam no modification needed
- Engineered and assembled in USA

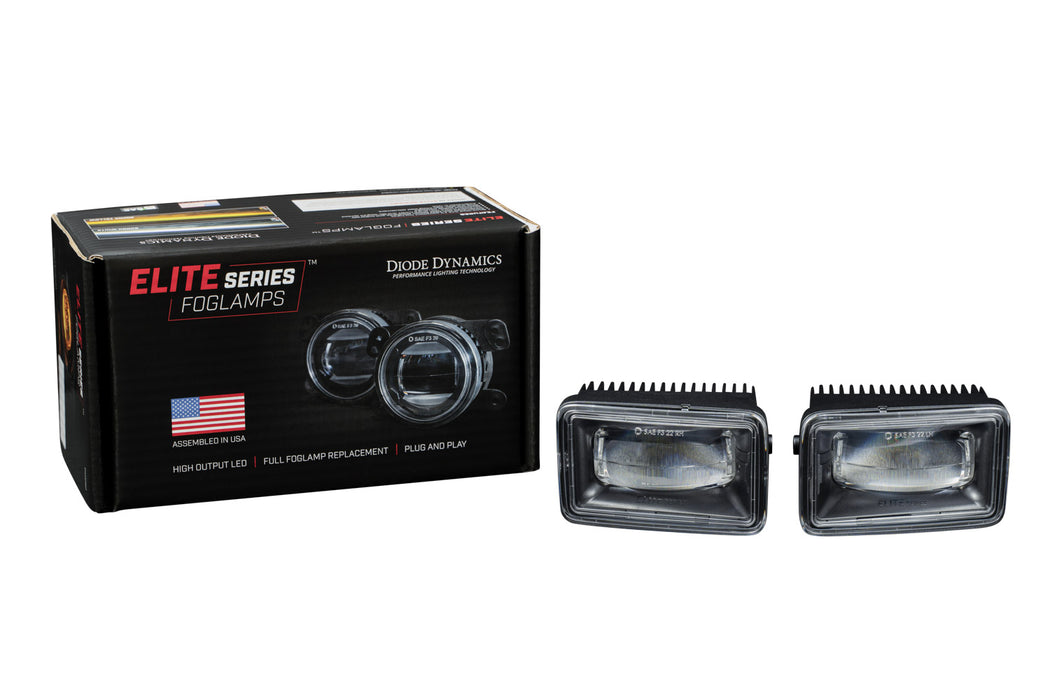

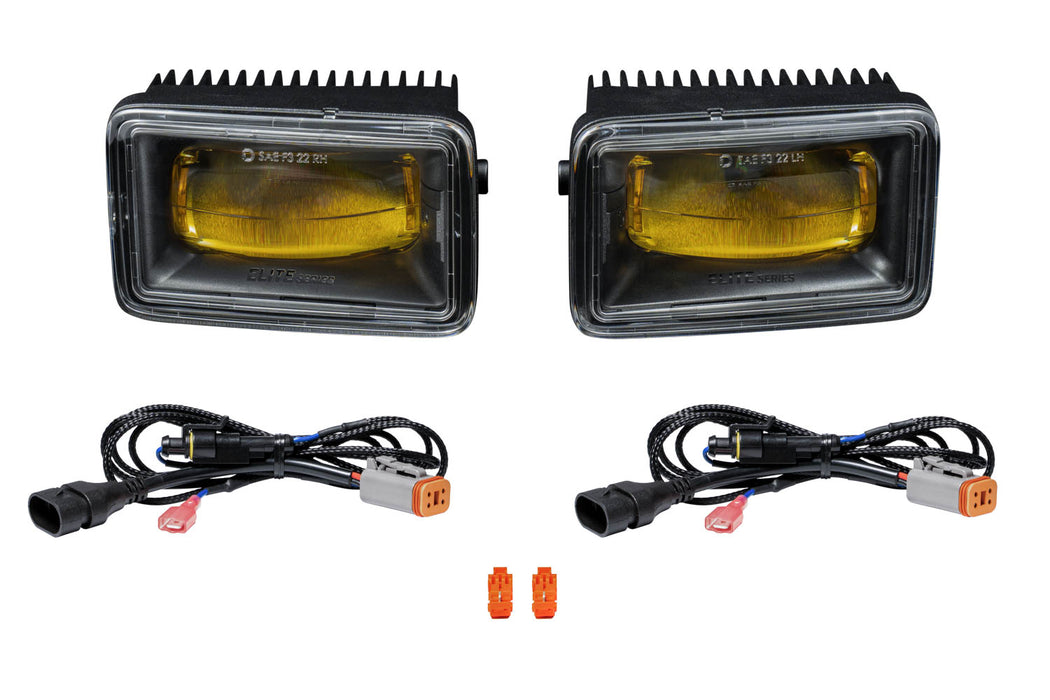

Included in the box:
- Elite Series Fog Lamps for 2017-2022 Ford Super Duty Pair, Yellow (3000K)
- Two (2) Elite Series Type F2 fog lamps
- Two (2) 9006 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Specifications
| beam_angle | 80x6 Degrees |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | Yellow |
| Connector | Deutsch DT Input 9006 |
| height | 5.3 |
| last_update | 2023-05-23 08:08:06 |
| last_update | 2023-06-21 12:32:31 |
| length | 10.0 |
| light_pattern | Fog |
| lumens | 1900 Lumens |
| LUX | 11,000 cd |
| material_l | Copper, PCB, UV Coated Polycarbonate Lens, Powdercoated Aluminum |
| Series | Elite Series |
| sold_as | Pair |
| Universal | No |
| vehicle_type | Truck/SUV |
| volts | 9-16V |
| Warranty | 8 year warranty |
| waterproof_rating | IP69K Waterproof, High Pressure |
| watt | Main Beam: 21, Backlight: 2.0 |
| weight | 2.75 |
| width | 5.7 |
