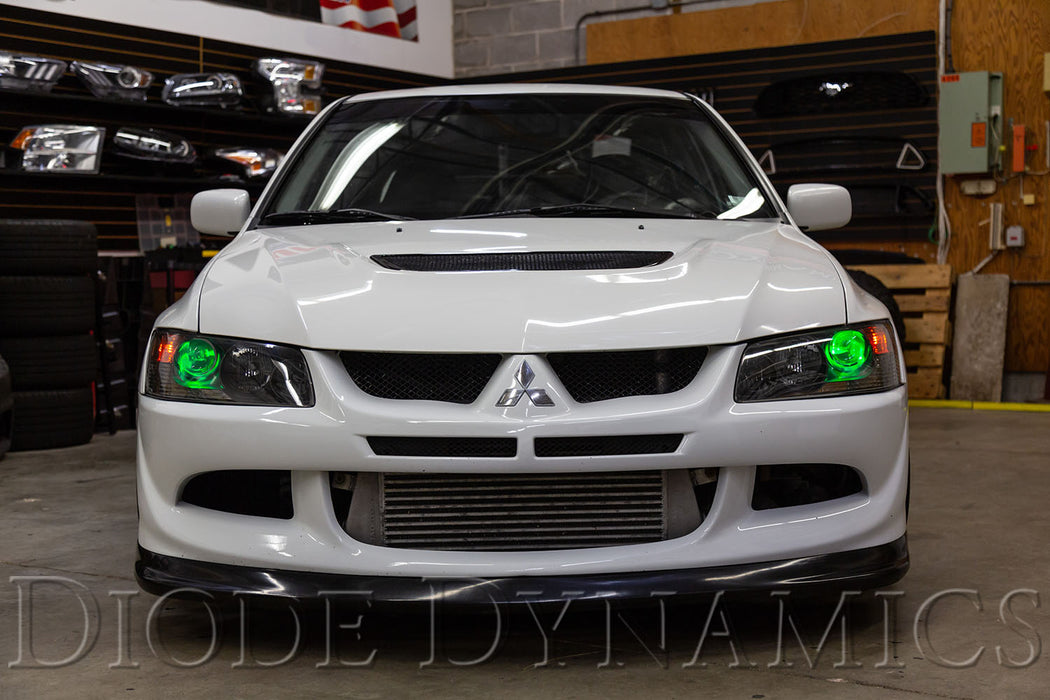

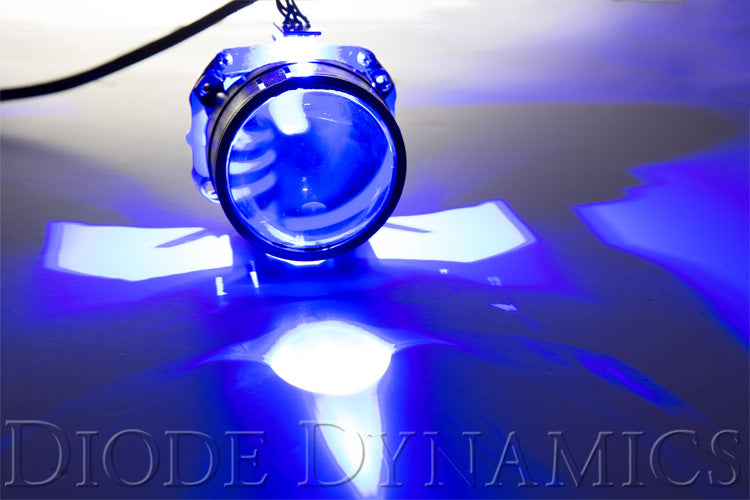

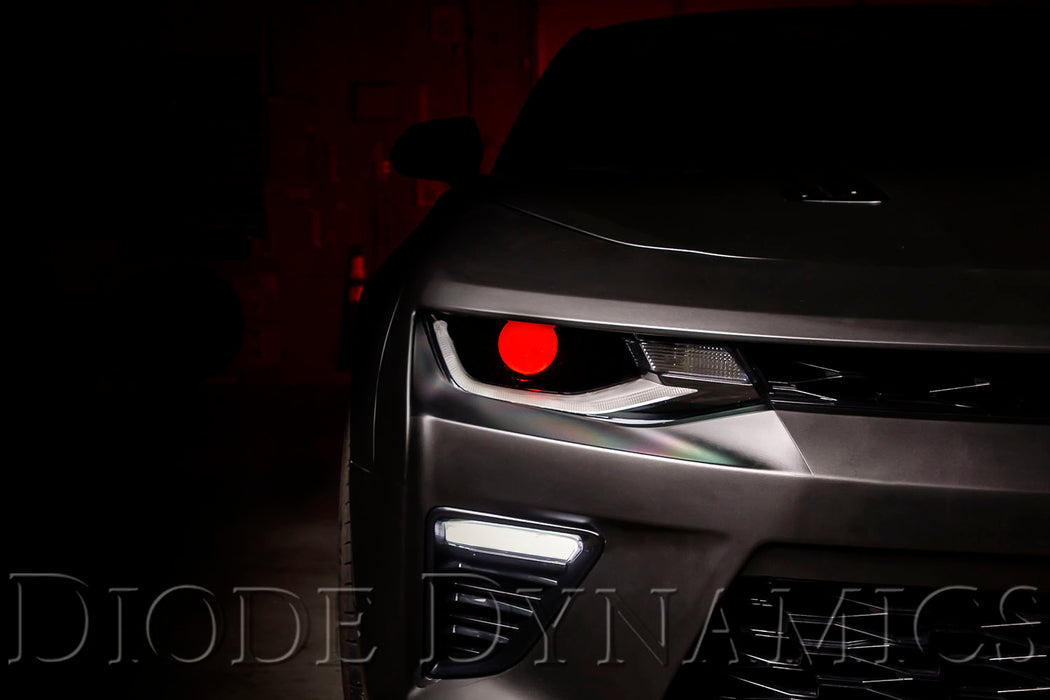

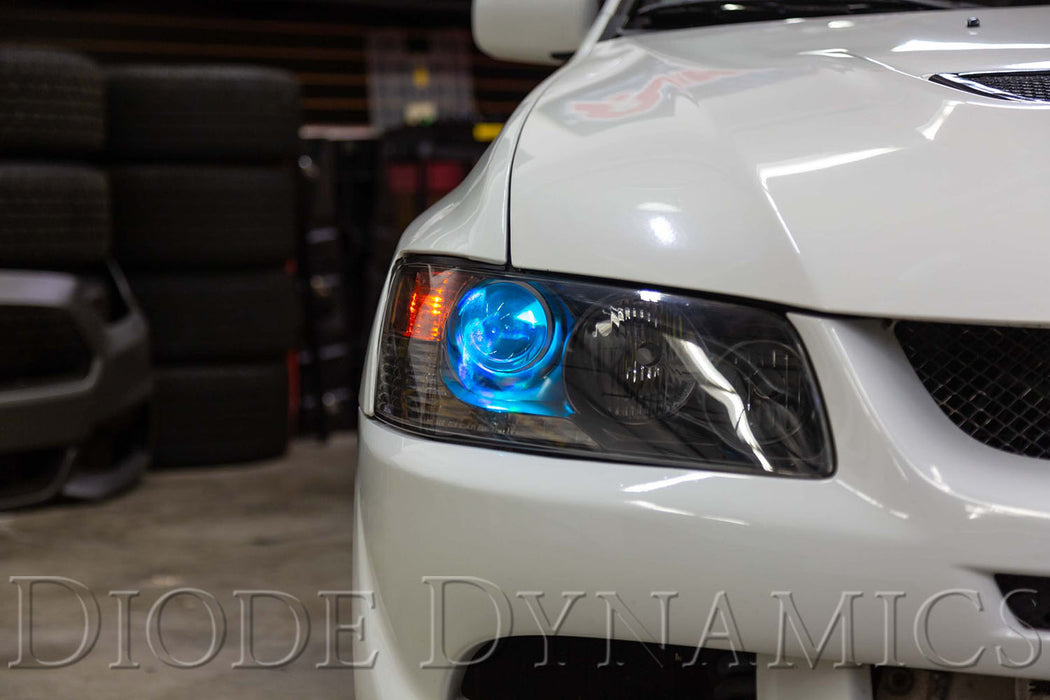

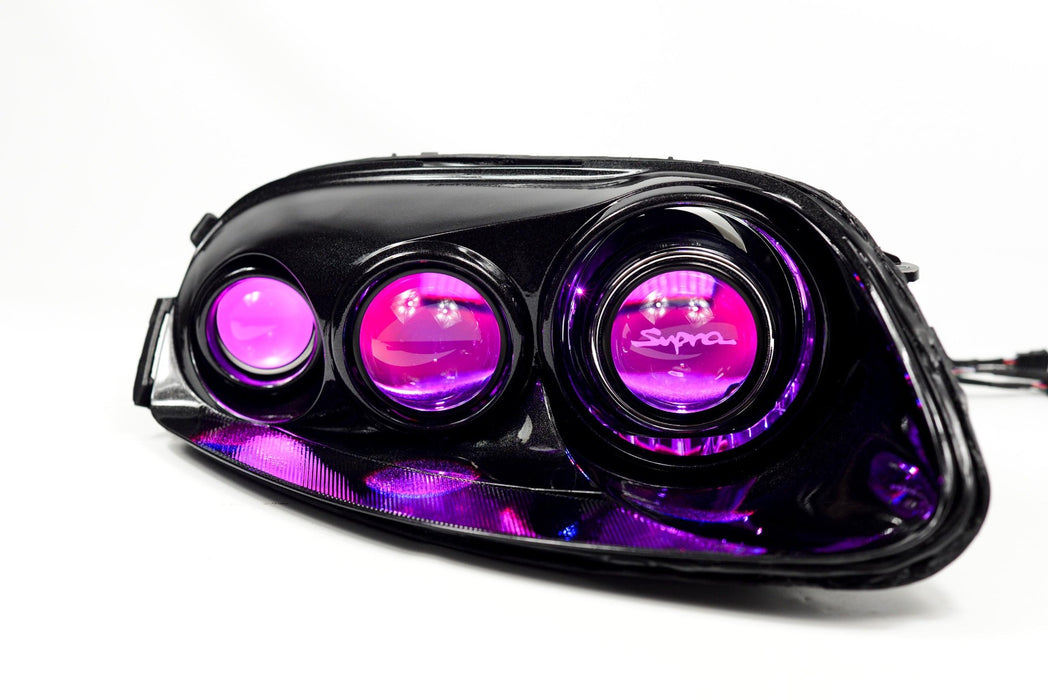

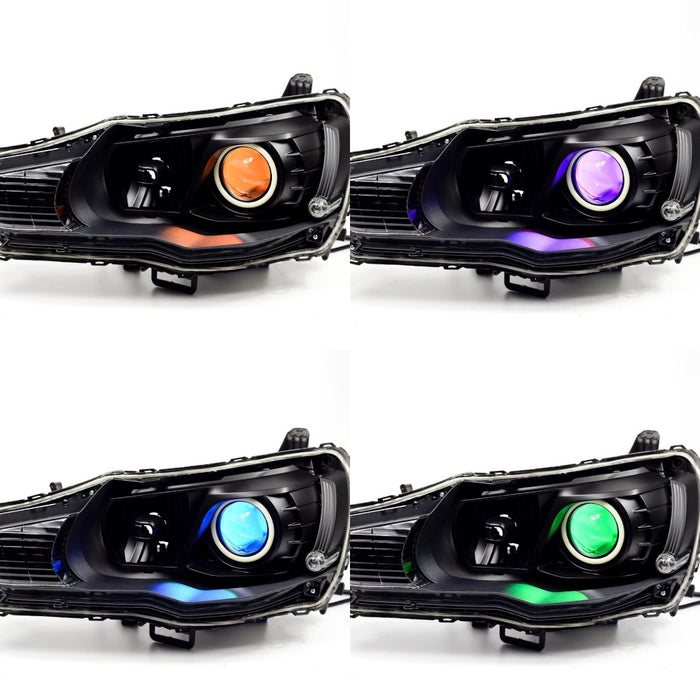

Demon Eyes are small, high-power LEDs that illuminate the projector lens inside your headlight, for a unique, custom look. With multicolor RGBW LEDs, they can be paired with our Bluetooth Controller for full control from an app on your phone! After years of experience manufacturing demon eyes at our facility in USA, we are pleased to announce the new Pro Series Demon Eye.

Brighter is better. Pro Series Demon Eyes were engineered from the ground up to be the brightest and most reliable units on the market. Using a total of 18 watts of LED chips, full aluminum substrate with heatsinking, wire-to-board connectors, and constant-current external drivers with shutoff, these Demon Eyes will shine with enough output to be visible in daylight, while staying cool and reliable in operation. Ask any professional installer - Diode Dynamics demon eyes are the brightest ones made.

Installation required. Headlamps must be opened up in order to install, so professional installation is recommended. Once you're in, you can use the included H1 brackets to mount to any H1-style projector. If you're working with something else, you'll need to custom-mount in any reasonable location, to shine light into the projector area. Then, wire up using an RGBW Controller (not included) and connect the shutoff wire to your low beams, so the demon eyes will shut off when your headlamps are turned on, keeping the demon eyes cool.

Full RGBW. Full multicolor, with no sacrifice. Unlike other RGB Demon Eyes on the market that produce a mixed white color, our Pro Series Demon Eyes are RGBW, with independent White LEDs. After you have fun with colors, just select True White for a crisp, clean white output for everyday use.

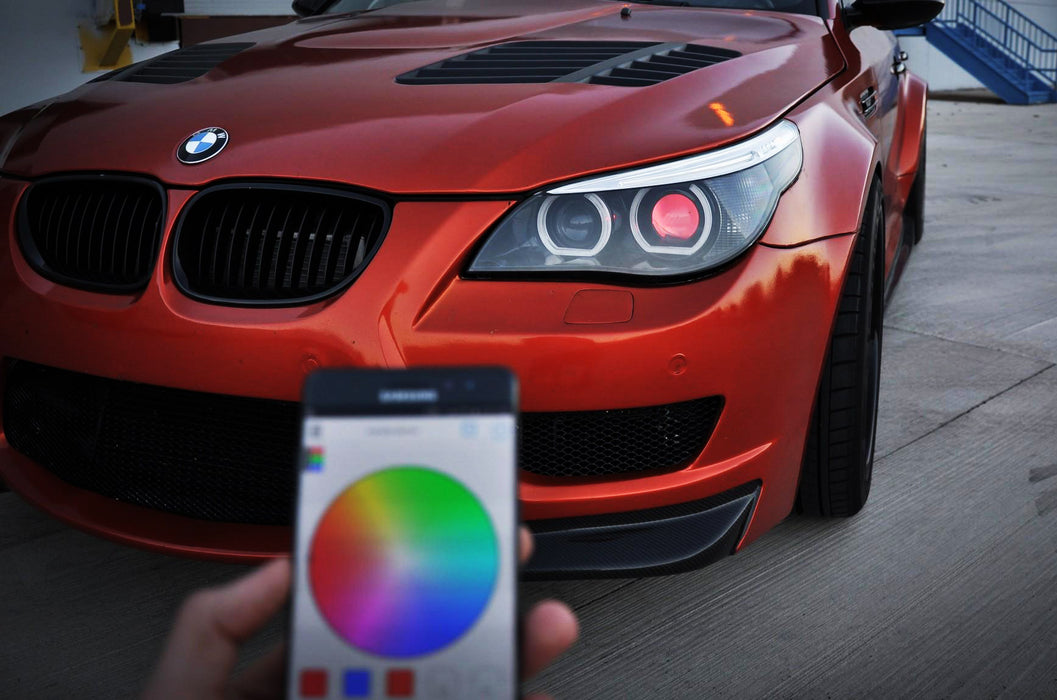

App Control. With our optional Bluetooth controller, you can choose any color under the sun, including True White. There's preset patterns too, including strobe, fade, and more. But it's the extras that really make this controller special. Simple features like Preset Colors make it easy to use, and fun features like Camera Match and Music Sync make it fun to show off! Don't see a pattern you like? Just program your own, and save it for later! This controller is the most fully-featured in terms of control and features on the market.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.
Features:

• 18 watts of LEDs for full multicolor and true white illumination
• Full aluminum construction, with added heatsinking
• Fully waterproof and shockproof constant-current drivers

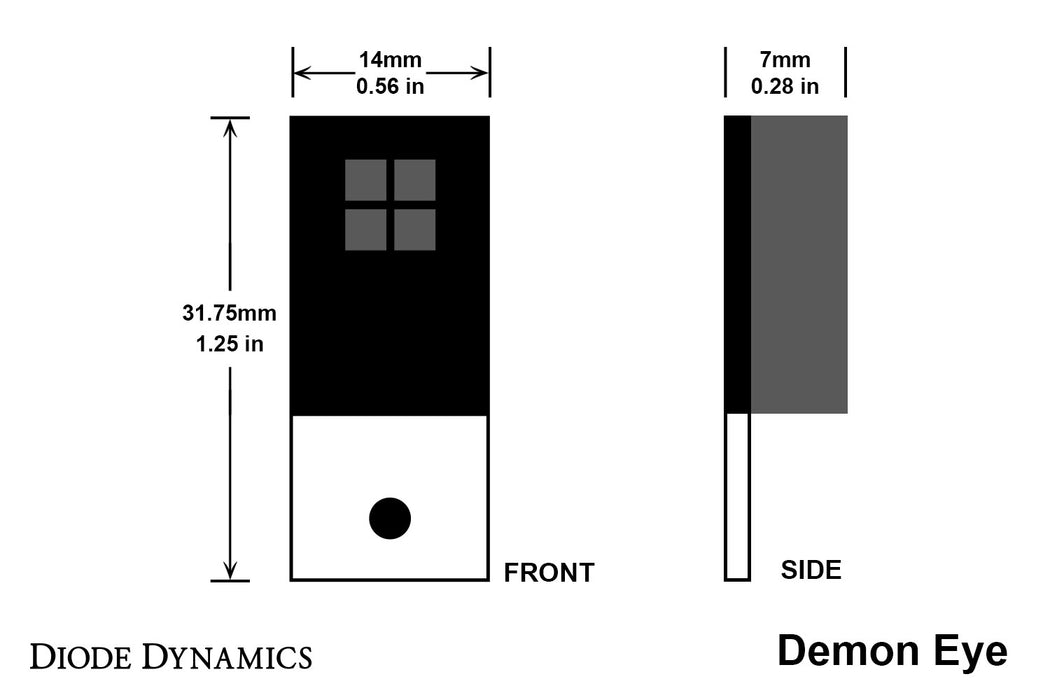

• Small size for easy custom installations
• Designed and assembled in the USA

What's Included In the Box:

• Two (2) RGBW Demon Eyes with sturdy JST connectors
• Two (2) constant current RGBW drivers, fully waterproof

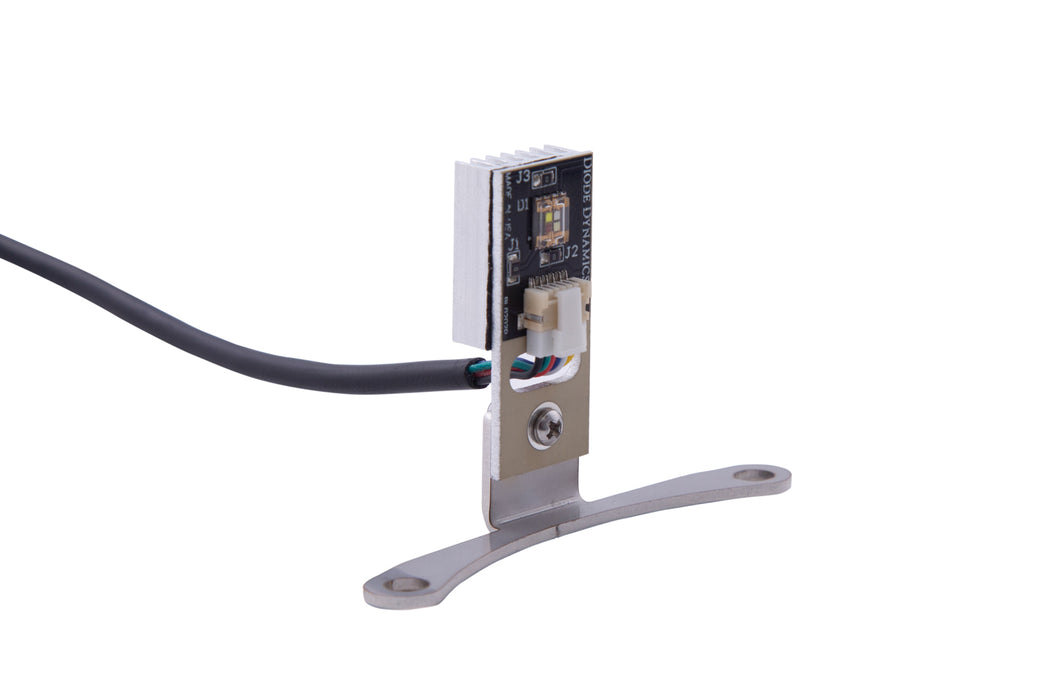

• Two (2) brackets for installation in H1 projectors
• Wiring instructions
• RGBW Controller is required, but not included
• Quantity: Two (2)
• Warranty: 3 year warranty
• Return Policy: 30-day Return with no restocking fee
• 100 percent Satisfaction Guarantee

Specifications

• 18 watts of LEDs, RGBW, for full multicolor and true white illumination
• Full aluminum construction, with added heatsinking
• Wire-to-board connectors for easy installation and reliability
• Fully waterproof and shockproof constant-current drivers
• Shutoff wire to deactivate LEDs when headlamps are turned on
• Use included H1 brackets, or custom-mount anywhere you wish
• Small size for easy custom installations
• Designed, tested and assembled in the USA
• An RGBW Controller is required to use this product.
• Beam Angle: Omnidirectional (270 degrees)
• Operating Voltage: 9-16V
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: High-Power Chip Scale Package (CSP)
• Connector(s): JST 5-pin Input (+GRBW)
• Driver Features: External, Waterproof, Constant Current
• Driver Dimensions: 2.5 Inch x 1.38 Inch x 0.88 Inch
• Materials: Aluminum PCB, Aluminum Heatsink
• Cooling: Passive, heatsink
• Compliance Ratings: SAE J575 Durability
• Test Weight (lb): 0.7000
