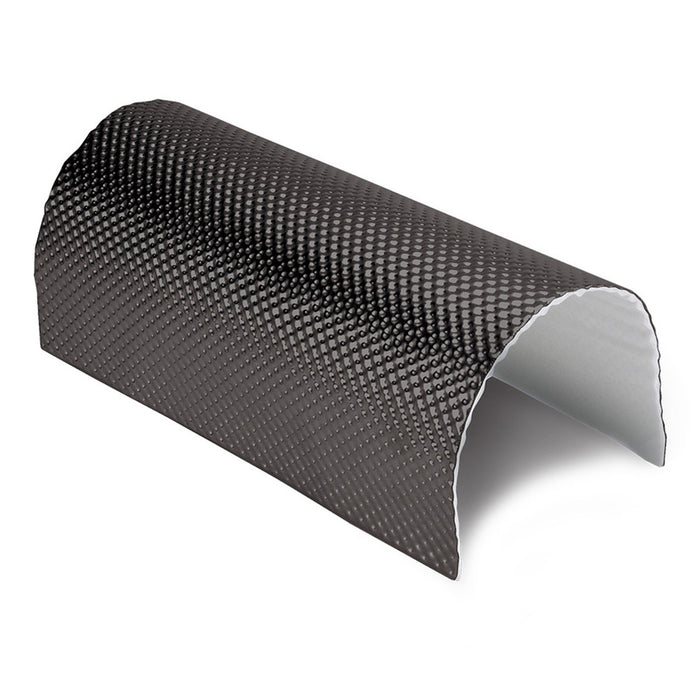

Design Engineering 50552 Floor And Tunnel Shield II™; 21in. x 48in.; Black;
SKU ds_BGWZ_50552
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$189.01
-
Original price
$189.01
Original price
$189.01
$189.01
$189.01
-
$189.01
Current price
$189.01
Availability:
Only 3 left!
Description
Use as a barrier to insulate from any heat source.Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor & Tunnel Black Shield limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well.Constructed with an embossed 10 mil aluminum face bonded to 1/8" composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, The adhesive side holds past 450°F. Its improved multifaceted modern aluminum surface with high temperature black coating offers improved rigidity and allows for ease of installation. At only 3/16" thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas.With a unique and patented finely woven glass-fiber backing, Floor & Tunnel Black Shield is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound.Floor & Tunnel Shield Black can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. Multiple uses include: fire walls, under hoods, transmission tunnels, floor pans, fuel cells, and exterior under vehicle locations.
Resources
Installation InstructionsSpecifications
| Description_ASM | Universal |
| Description_DES | Floor And Tunnel Shield II™ |
| Description_EXT | Floor And Tunnel Shield II™; 21in. x 48in.; Black; |
| Description_FAB | Adheres To Almost Any Surface/Material/Fiberglass |
| Description_FAB | Aggressive Self-Adhesive Backing Holds Past 450 ° F |
| Description_FAB | Blocks Radiant Heat From Entering Driver Compartment |
| Description_FAB | Constructed From 10 Mil Aluminum |
| Description_FAB | Easy To Form To Shapes And Contours |
| Description_FAB | Ideal For Firewalls/Under Vehicle/Floor Pans/Oil Tank Box/etc. |
| Description_FAB | Just Trim Peel And Stick |
| Description_FAB | Minimum Clearance Required Only 3/16 in. Thick |
| Description_FAB | Serves As A Barrier To Unwanted Road/Tire And Engine Noise |
| Description_FAB | Withstands Direct High Temperatures Up To 1750 ° |
| Description_INV | Floor/Tunnel Shield; Black |
| Description_LAB | Proposition 65 |
| Description_MKT | Use as a barrier to insulate from any heat source.Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic, Floor & Tunnel Black Shield limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. Floor & Tunnel Shield II provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well.Constructed with an embossed 10 mil aluminum face bonded to 1/8" composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, The adhesive side holds past 450°F. Its improved multifaceted modern aluminum surface with high temperature black coating offers improved rigidity and allows for ease of installation. At only 3/16" thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas.With a unique and patented finely woven glass-fiber backing, Floor & Tunnel Black Shield is the easiest, most cost effective way to control thermal transfer while protecting expensive components and vehicle occupants from extreme heat situations and sound.Floor & Tunnel Shield Black can be used on any number of surfaces including, metal, aluminum, carbon fiber, plastic, and more. Multiple uses include: fire walls, under hoods, transmission tunnels, floor pans, fuel cells, and exterior under vehicle locations. |
| Description_SHO | SoundDampMaterial |
| height | 4.25 |
| length | 22.25 |
| LTL | N |
| weight | 2.71 |
| width | 4.25 |
