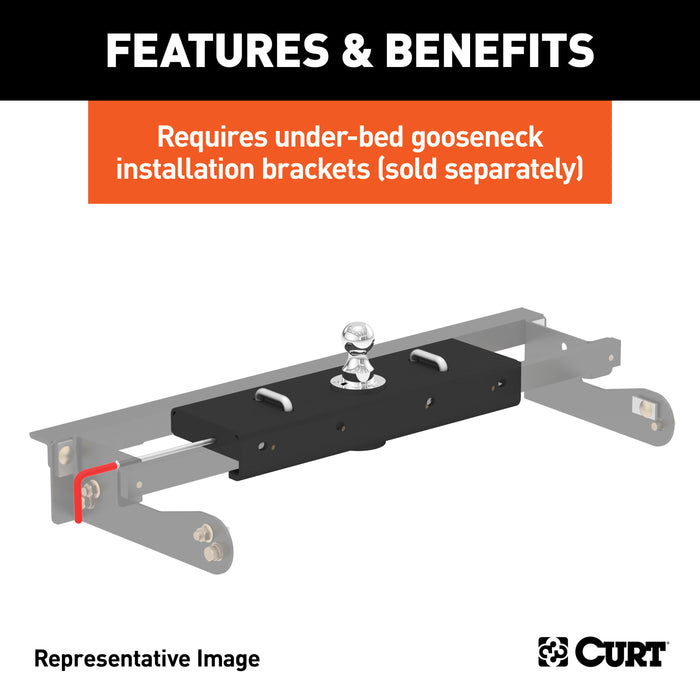

CURT 60619 Double Lock EZr Gooseneck Hitch; 2-5/16in. Ball; 30K (Brackets Required)
by CURT
SKU ds_BKDK_60619
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$447.93
-
Original price
$447.93
Original price
$447.93
$447.93
$447.93
-
$447.93
Current price
$447.93
Availability:
4+ in stock
Description

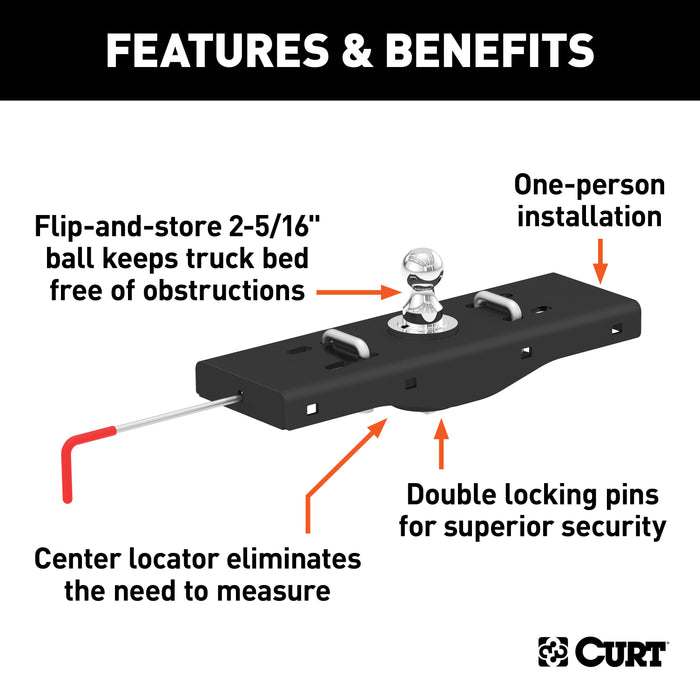

CURT introduces the Double Lock EZr gooseneck hitch. This under-bed gooseneck not only boasts 30,000 lbs. of towing capacity, but it also offers easier installation and operation. With its slotted safety chain holes, patented center locator and vehicle-specific installation brackets, mounting the Double Lock EZr is quick and painless. It also features a double-locking design and a flip-and-store trailer ball to make gooseneck towing look easy. Installation with the Double Lock EZr requires only one person, using retainer clips to keep bolts secure and the center section fully supported while mounting it into place. It also uses our exclusive, patented center locator to eliminate the need for meticulous measuring and ensure error-free drilling. This model also has slotted safety chain holes that allow you to align the safety chain loops with the rails of your truck bed for optimum functionality. The EZr also uses carriage bolts whenever possible for one-wrench tightening and does not require the exhaust to be lowered during installation. Operation of the Double Lock EZr gooseneck hitch is simple and safe. It uses two locking pins and a 3/8" diameter handle to keep the gooseneck ball locked into the center section and your gooseneck trailer more secure. The ball features a flip-over design that allows you to store it inside the receiver hole when not in use, keeping your truck bed completely free of obstructions and preventing the trailer ball from being lost. With a fortified center section, this hitch offers a gross trailer weight capacity up to 30,000 lbs. and a vertical load limit of 7,500 lbs., giving you the power you need to get the job done right.
Resources
Installation InstructionsSpecifications
| Description_ABR | GOOHT |

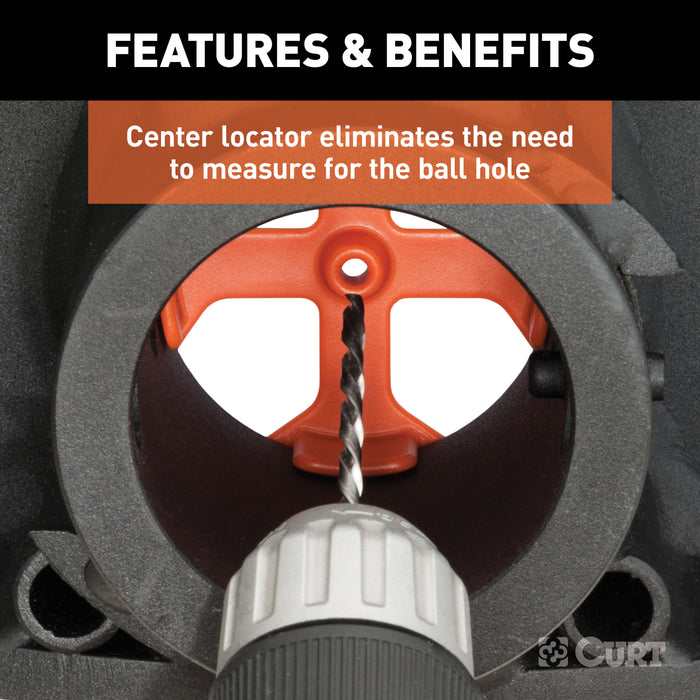

| Description_ASC | Center locator eliminates the need to measure where the ball hole should be |
| Description_ASC | Chrome-plated trim ring provides a finished look |
| Description_ASC | Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required) |

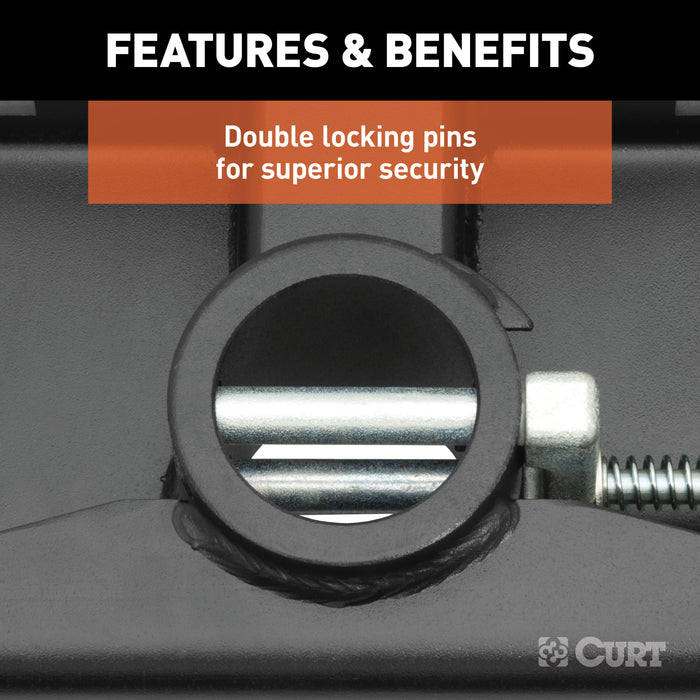

| Description_ASC | Double locking pins for superior trailer and trailer ball security |

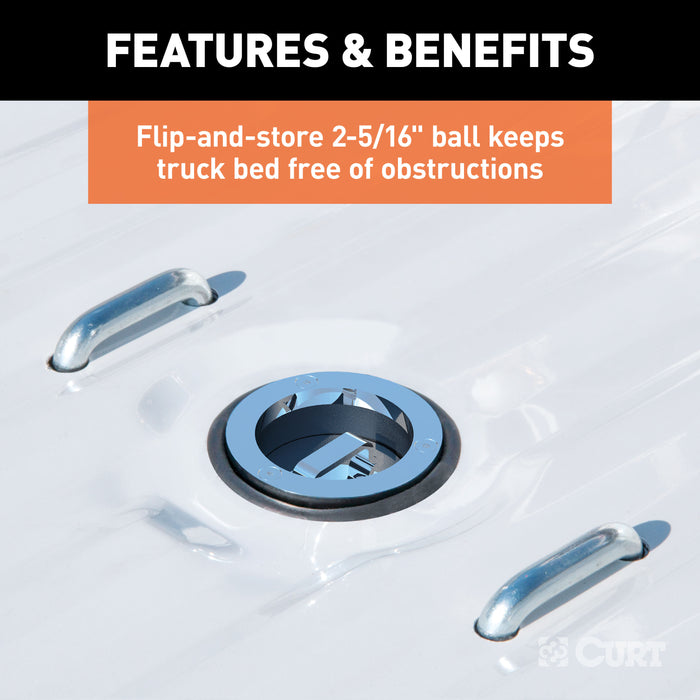

| Description_ASC | Flip-and-store ball keeps truck bed free of obstructions |
| Description_ASC | Heavy-duty 3/8" diameter handle for solid operation |
| Description_ASC | Includes strong 5/8" safety chain loops and grade-8 hardware |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |

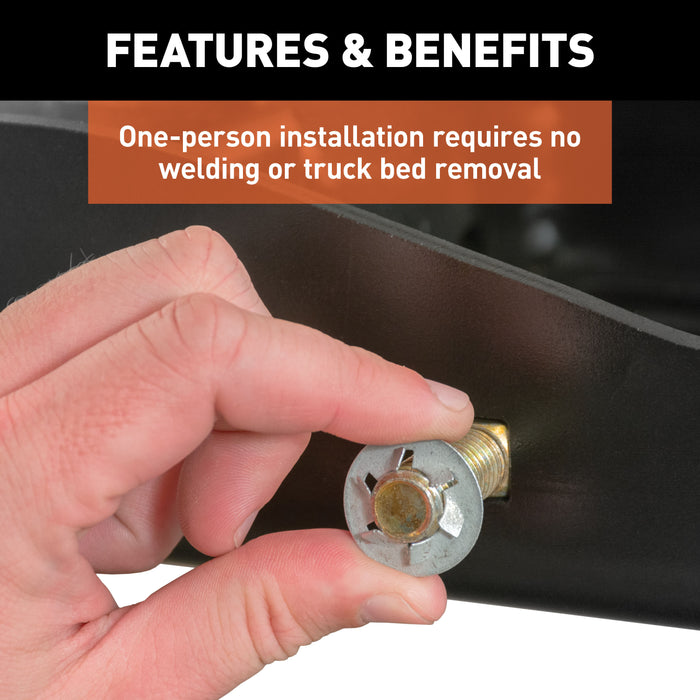

| Description_ASC | One-person installation requires no welding or truck bed removal |
| Description_ASC | Protected by a durable A-coat finish |
| Description_ASC | Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers |
| Description_ASC | Rubber hole cover helps prevent corrosion in trailer ball hole |
| Description_ASC | Slotted safety chain holes allow for proper alignment with truck bed rails |
| Description_ASC | Tested for safety in accordance with SAE J2638 |
| Description_ASM | CURT 60619 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs |
| Description_DEF | Gooseneck Trailer Hitch |
| Description_DES | Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required) |
| Description_DES | Double Lock EZr Gooseneck Hitch; 2-5/16in. Ball; 30K (Brackets Required) |
| Description_EXT | CURT 60619 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs |
| Description_EXT | CURT 60619 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball; 30;000 lbs |
| Description_FAB | Accepts Up To 30000 Lbs. Tw And 7500 Lbs. Vertical Load Limit |
| Description_FAB | Double Locking Pin For Superior Trailer And Trailer Ball Security |
| Description_FAB | Flip-And-Store Ball Keeps Truck Bed Free Of Obstruction |
| Description_FAB | Heavy-Duty 3/8 In. Diameter Handle For Solid Operation |
| Description_FAB | Incl. Strong 5/8 In. Safety Chain Loops And Grade 8 Hardware |
| Description_FAB | One-Person Installation Requires No Welding Or Truck Bed Removal |
| Description_FAB | Patented Center Locator Eliminates Errors Caused When Drilling |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |
| Description_FAB | Removable Chrome-Plated 2 5/16 In. Trailer Ball Fits Most Trailer |
| Description_FAB | Rubber Hole Cover Helps Prevent Corrosion In Trailer Ball Hole |
| Description_FAB | Slotted Safety Chain Holes Allow For Alignment w/Truck Bed Rails |
| Description_INV | Double Lock EZr Gooseneck Hitch |
| Description_KEY | hitches chain kits factory fifth wheel system hide oem plate tow bed goose neck rail folding goosneck livestock gm mount removable pickups hookup set fold trucks connection 5 mounted attachment base mounts gooseball equipment |
| Description_MKT | CURT introduces the Double Lock EZr gooseneck hitch. This under-bed gooseneck not only boasts 30,000 lbs. of towing capacity, but it also offers easier installation and operation. With its slotted safety chain holes, patented center locator and vehicle-specific installation brackets, mounting the Double Lock EZr is quick and painless. It also features a double-locking design and a flip-and-store trailer ball to make gooseneck towing look easy. Installation with the Double Lock EZr requires only one person, using retainer clips to keep bolts secure and the center section fully supported while mounting it into place. It also uses our exclusive, patented center locator to eliminate the need for meticulous measuring and ensure error-free drilling. This model also has slotted safety chain holes that allow you to align the safety chain loops with the rails of your truck bed for optimum functionality. The EZr also uses carriage bolts whenever possible for one-wrench tightening and does not require the exhaust to be lowered during installation. Operation of the Double Lock EZr gooseneck hitch is simple and safe. It uses two locking pins and a 3/8" diameter handle to keep the gooseneck ball locked into the center section and your gooseneck trailer more secure. The ball features a flip-over design that allows you to store it inside the receiver hole when not in use, keeping your truck bed completely free of obstructions and preventing the trailer ball from being lost. With a fortified center section, this hitch offers a gross trailer weight capacity up to 30,000 lbs. and a vertical load limit of 7,500 lbs., giving you the power you need to get the job done right. |
| Description_SHO | Double Lock EZr |
| Description_SHO | Double Lock EZr Goos |
| Description_SLA | CURT introduces the Double Lock EZr gooseneck hitch. This under-bed gooseneck not only boasts 30,000 lbs. of towing capacity, but it also offers easier installation and operation. With its slotted safety chain holes, patented center locator and vehicle-specific installation brackets, mounting the Double Lock EZr is quick and painless. It also features a double-locking design and a flip-and-store trailer ball to make gooseneck towing look easy. Installation with the Double Lock EZr requires only one person, using retainer clips to keep bolts secure and the center section fully supported while mounting it into place. It also uses our exclusive, patented center locator to eliminate the need for meticulous measuring and ensure error-free drilling. This model also has slotted safety chain holes that allow you to align the safety chain loops with the rails of your truck bed for optimum functionality. The EZr also uses carriage bolts whenever possible for one-wrench tightening and does not require the exhaust to be lowered during installation. Operation of the Double Lock EZr gooseneck hitch is simple and safe. It uses two locking pins and a 3/8" diameter handle to keep the gooseneck ball locked into the center section and your gooseneck trailer more secure. The ball features a flip-over design that allows you to store it inside the receiver hole when not in use, keeping your truck bed completely free of obstructions and preventing the trailer ball from being lost. With a fortified center section, this hitch offers a gross trailer weight capacity up to 30,000 lbs. and a vertical load limit of 7,500 lbs., giving you the power you need to get the job done right. |
| height | 4.625 |
| length | 25.63 |
| LTL | N |
| weight | 47.0 |
| width | 8.125 |
