CURT 48630 Adjustable Lunette Ring (12;000 lbs.; 3in. Eye; 7-1/2in. Channel Height; Package
by CURT
SKU ds_BKDK_48630
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $1.92
Original price
$211.99
Original price
$211.99
-
Original price
$211.99
Original price
$211.99
Current price
$210.07
$210.07
-
$210.07
Current price
$210.07
Description

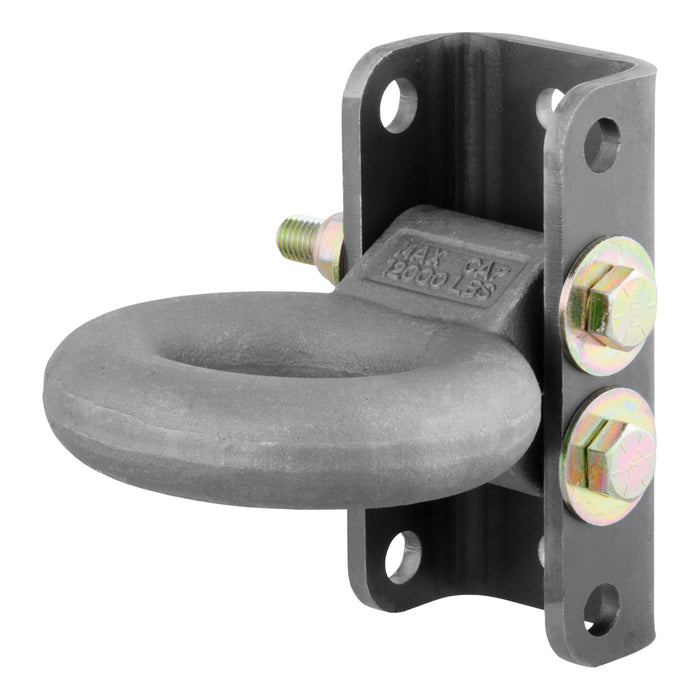

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features three height adjustment positions for easy height adjustment and trailer levelling. It features a forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3" inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations.
Specifications
| Box Height in Inches - XA | 4 |
| Box Length in Inches - XA | 11 |
| Box Width in Inches - XA | 9 |
| Class ID | 0 |
| Description_ABR | PINTL |
| Description_ASC | 2" bolt pattern spread for simple, secure attachment |
| Description_ASC | 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars |
| Description_ASC | 7-1/2" x 3" channel bracket features one-piece, formed steel construction |
| Description_ASC | Adjustable Lunette Ring (12,000 lbs., 3" Eye, 7-1/2" Channel Height, Packaged) |
| Description_ASC | Constructed from forged steel for superior strength |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Three-position height adjustment allows for precise trailer leveling |
| Description_ASM | CURT 48630 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID, 12,000 lbs, 7-1/2-Inch Channel Height |
| Description_DEF | Tow Bar |
| Description_DES | Adjustable Lunette Ring (12,000 lbs., 3" Eye, 7-1/2" Channel Height, Packaged) |
| Description_DES | Adjustable Lunette Ring (12;000 lbs.; 3in. Eye; 7-1/2in. Channel Height; Package |
| Description_EXT | CURT 48630 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID, 12,000 lbs, 7-1/2-Inch Channel Height |
| Description_EXT | CURT 48630 Raw Steel Adjustable Pintle Hitch Lunette Ring 3-In ID; 12;000 lbs; 7-1/2-Inch Channel Height |

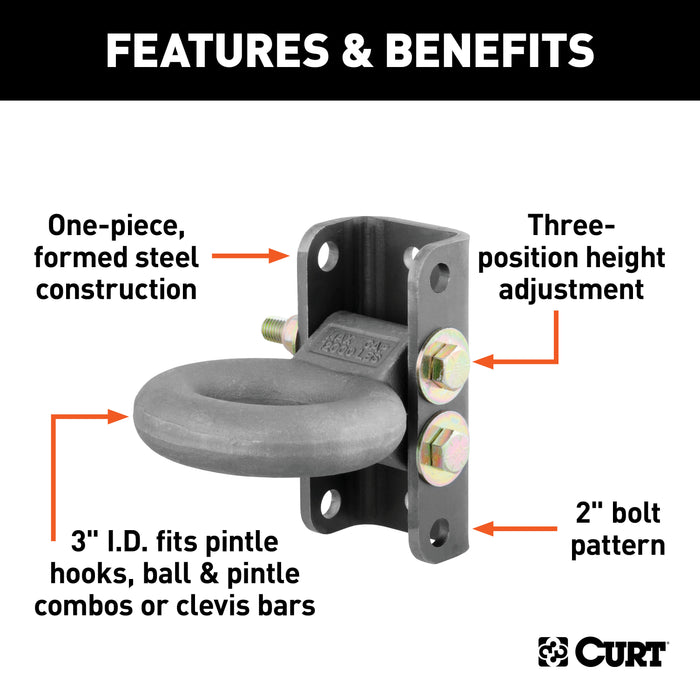

| Description_FAB | 2 In. Bolt Pattern Spread For Simple Secure Attachment |
| Description_FAB | 3 In. I.D. Fits Pintle Combinations Or Clevis Bars |
| Description_FAB | Channel Bracket Features One-Piece Formed Steel Construction |
| Description_FAB | Constructed From Forged Steel For Superior Strength |
| Description_FAB | Three-Position Height Adj. Allows For Precise Trailer Leveling |
| Description_INV | Lunette Eye & Channel |
| Description_KEY | automotive weld coupler channel pintel eye assembly tow receiver eyelet lunett manufacturing vehicles tongue circle rings loops d mercury lifting for trailers shim in welder bracket drop id no |
| Description_MKT | In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features three height adjustment positions for easy height adjustment and trailer levelling. It features a forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3" inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations. |
| Description_SHO | Adjustable Lunette R |
| Description_SHO | Lunette Eye |
| Description_SLA | In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features three height adjustment positions for easy height adjustment and trailer levelling. It features a forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3" inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations. |
| Finish - XA | RAW |
| Gross Trailer Weight (GTW) | 12,000 LB |
| height | 4.87 |
| Item Class - XA | OMF |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 8.13 |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 4.870 |
| Retail Length - XA | 8.130 |
| Retail Width - XA | 8.000 |
| Shipping Weight - XA | 17.000 |
| Tariff 301 - XA | Yes |
| Title | Adjustable Lunette Ring (12,000 lbs., 3" Eye, 7-1/2" Channel Height, Packaged) |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 17.0 |
| width | 8.0 |
