CURT 17500 TruTrack 4P Weight Distribution Hitch with 4x Sway Control; 8-10K
by CURT
SKU ds_BKDK_17500
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$652.85
-
Original price
$652.85
Original price
$652.85
$652.85
$652.85
-
$652.85
Current price
$652.85
Description

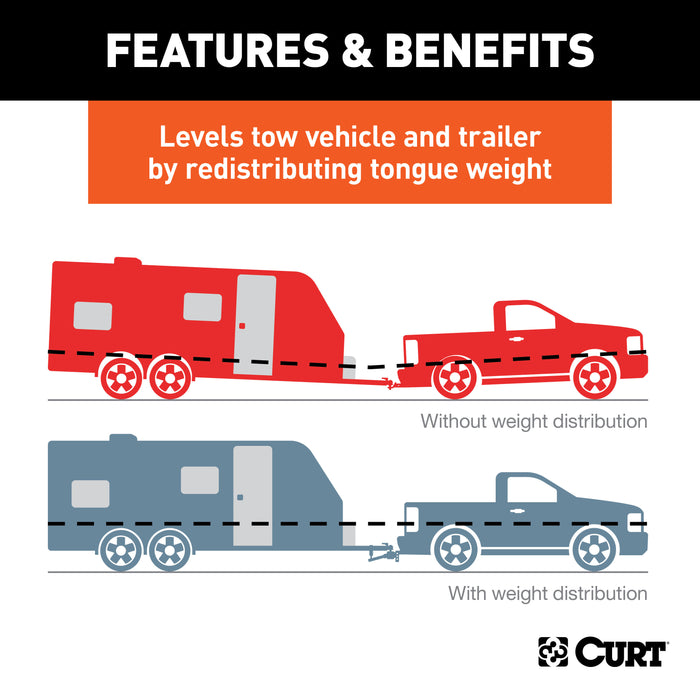

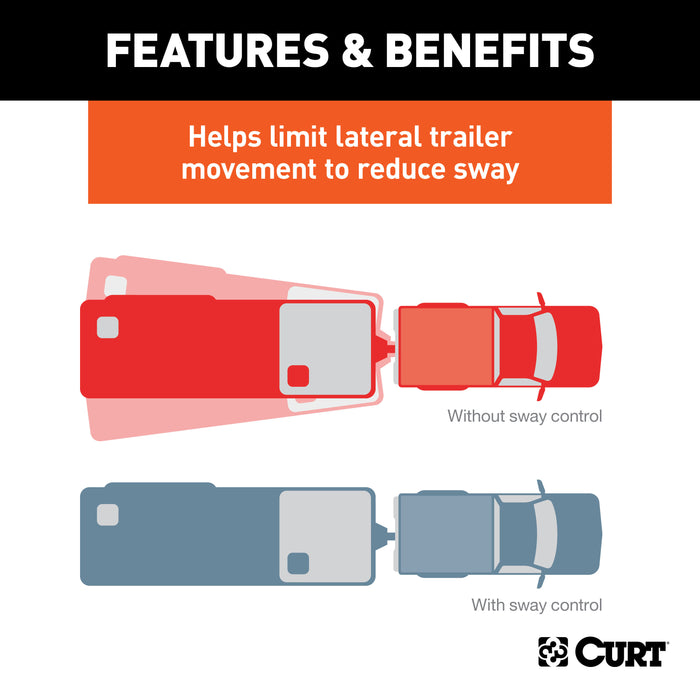

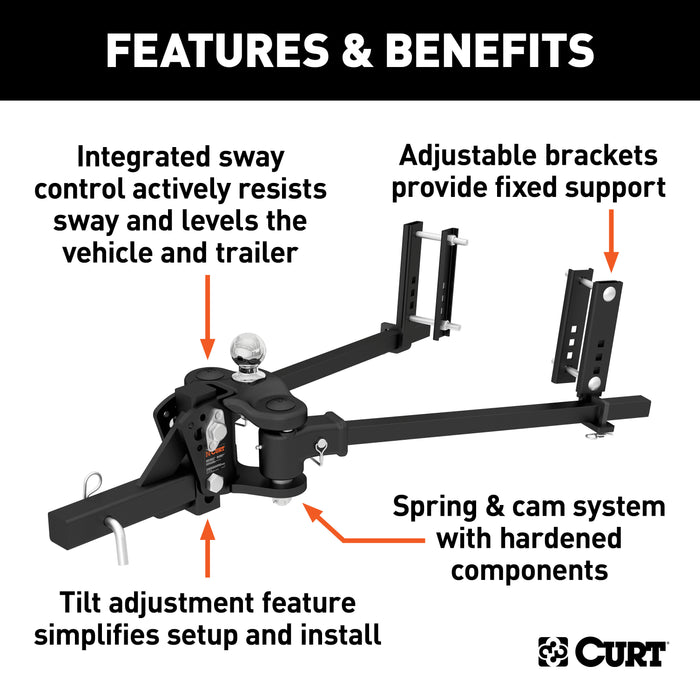

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy. In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers.
Resources
Installation InstructionsSpecifications
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Color | Black |
| Description_ABR | TRACK |
| Description_ASC | 2" shank can be flipped to provide necessary drop or rise |
| Description_ASC | Adjustable brackets provide fixed support unlike spring bar chain models |
| Description_ASC | Brackets use friction to resist lateral movement, replacing a sway control |
| Description_ASC | Carbide black powder coat, black-oxide-plated cams and stainless steel balls |
| Description_ASC | Fits virtually all A-frame trailers, featuring two neutral spring bar settings |
| Description_ASC | Four points of sway control work together to keep trailer aligned |
| Description_ASC | Hex castle nut allows for easy adjustment for different trailers |
| Description_ASC | Includes a pre-torqued 2-5/16" trailer ball |
| Description_ASC | Integrated sway control actively resists sway and levels the vehicle and trailer |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Tilt adjustment feature simplifies setup and installation |
| Description_ASC | TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 8-10K |
| Description_ASC | Uses spring & cam system with hardened components, instead of friction alone |
| Description_ASC | Welded head with cast pieces and trunnion-style forged steel spring bars |
| Description_ASM | CURT 17500 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 10K, 2-In Shank, 2-5/16-Inch Ball |
| Description_DEF | Trailer Hitch |
| Description_DES | TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 8-10K |
| Description_DES | TruTrack 4P Weight Distribution Hitch with 4x Sway Control; 8-10K |
| Description_EXT | CURT 17500 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 10K, 2-In Shank, 2-5/16-Inch Ball |
| Description_EXT | CURT 17500 TruTrack 4P Weight Distribution Hitch with 4x Sway Control; Up to 10K; 2-In Shank; 2-5/16-Inch Ball |
| Description_FAB | 12 In. Adjustable Shank Fits 2 In. X 2 In. Receiver Tube Openings |

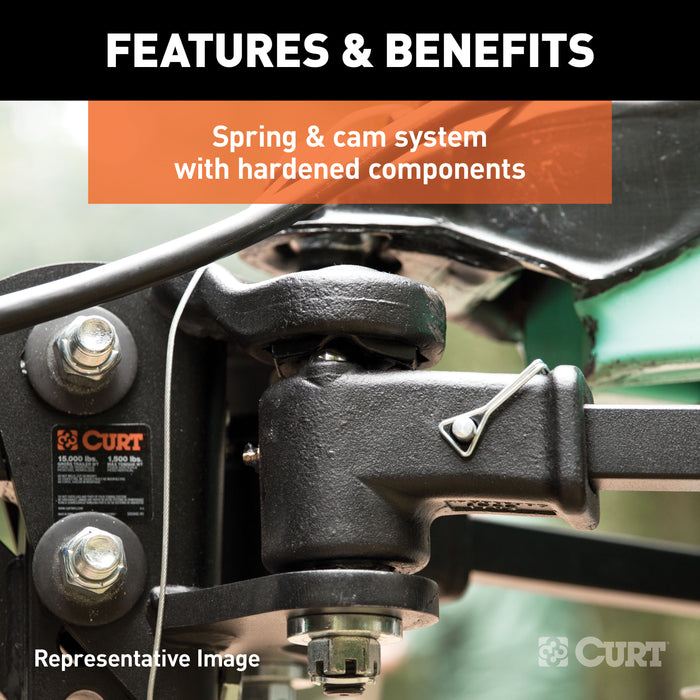

| Description_FAB | Cam Springs Build Up Pressure For Integrated Sway Control |
| Description_FAB | Cast Head And Hardened Cams Provide Solid Attachment |
| Description_FAB | Equipped w/Trunnion-Style Forged Steel Spring Bars |

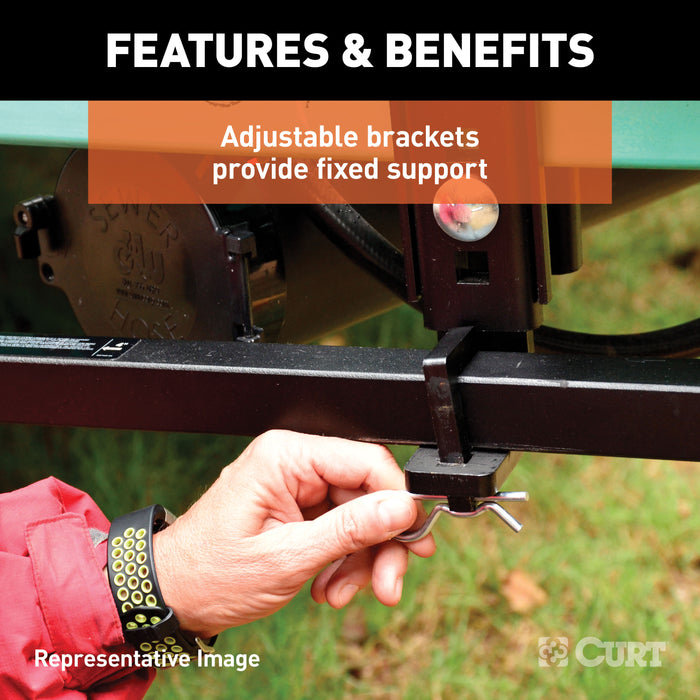

| Description_FAB | Fixed Support Brackets Hold The Spring Bars In Place |
| Description_FAB | Incl. A Pre-Torqued 2 5/16 In. Trailer Ball |
| Description_FAB | Protected By A Highly Durable Carbide Powder Coat Finish |

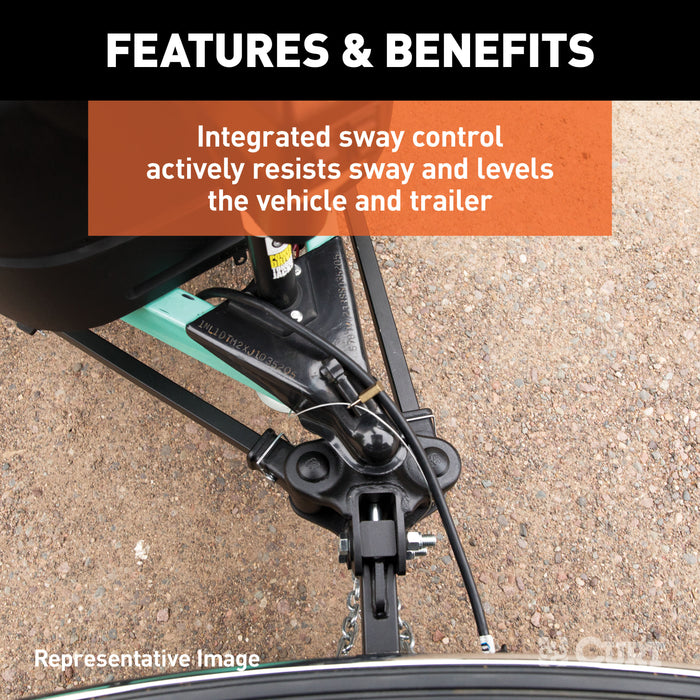

| Description_FAB | Sway Control Resists Sway And Levels The Vehicle And Trailer |

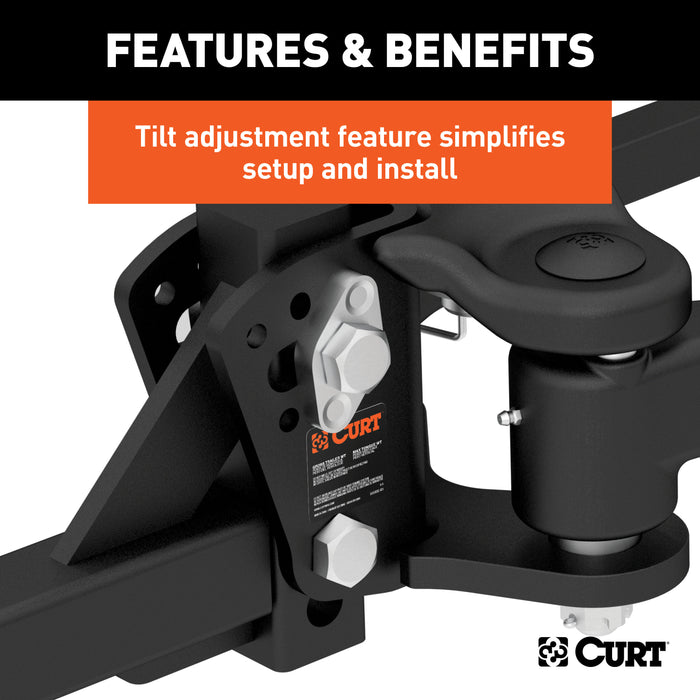

| Description_FAB | Tilt Adjustment Feature Simplifies Setup And Installation |

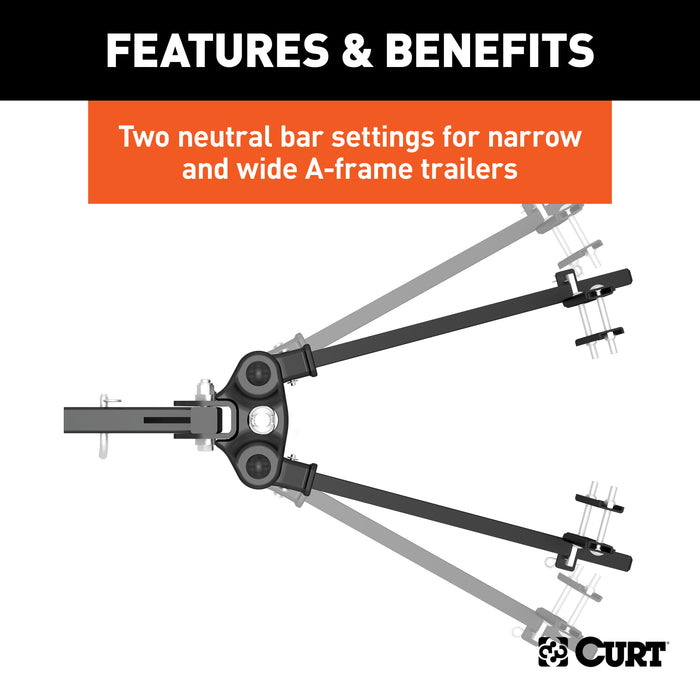

| Description_FAB | Two Neutral Bar Settings For Narrow And Wide A-Frame Trailers |
| Description_FAB | Use Friction To Resist Movement Replacing A Sway Control |
| Description_INV | TruTrack 4P WD Hitch with Sway Control |
| Description_KEY | base rv lift lb camper weighted friction truck mount holder right dual travel kit parts equal load leveling ez leveler accessories pins pro equalizing tab plate slide weights interchangeable arm stabilizing pin hoist swaybar lifts systems balancing kits |
| Description_MKT | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack 4P uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy. In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers. |
| Description_MKT | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy. In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers. |
| Description_SHO | TruTrack 4P WD Hitch |
| Description_SHO | TruTrack 4P Weight D |
| Description_SLA | While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack 4P uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy. In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers. |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 10,000 LB |
| height | 11.5 |
| Item Class - XA | OBS |
| Item Height - XA | 11.500 |
| Item Length - XA | 37.000 |
| Item Width - XA | 13.000 |
| length | 37.0 |
| LTL | N |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 121.300 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 11.500 |
| Retail Length - XA | 37.000 |
| Retail Width - XA | 13.000 |
| Shipping Weight - XA | 121.300 |
| Tariff 301 - XA | Yes |
| Title | TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 8-10K |
| Tongue Weight (TW) | 1,000 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 121.3 |
| width | 13.0 |
