CURT 16698 A20 Sliding 5th Wheel Hitch, 20K, Select Silverado, Sierra, 6.5' Bed Puck System
by CURT
SKU ds_BKDK_16698
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $156.14
Original price
$2,115.95
Original price
$2,115.95
-
Original price
$2,115.95
Original price
$2,115.95
Current price
$1,959.81
$1,959.81
-
$1,959.81
Current price
$1,959.81
Description

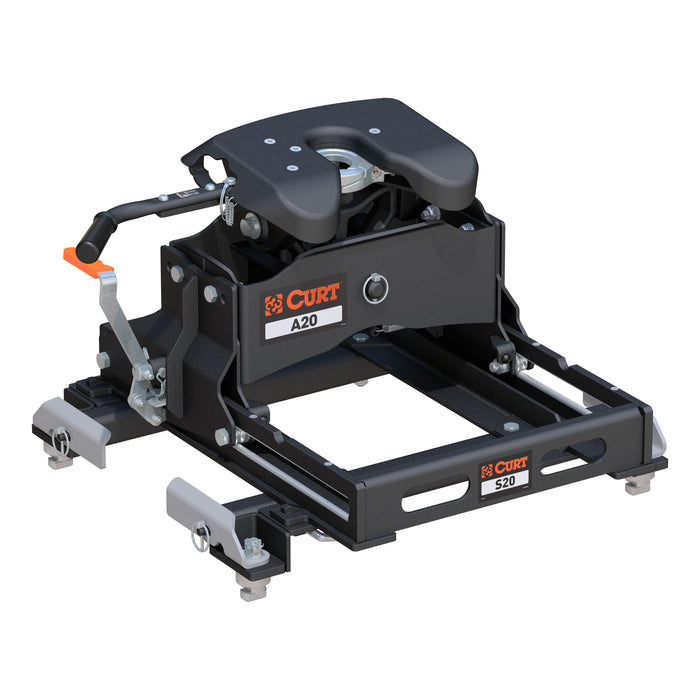

The CURT A20 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A20 is also fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that shows the coupling status. This 20K 5th wheel hitch comes with the CURT S20 slider and the CURT OEM puck system 5th wheel slider adapter. It is designed to be mounted on select Chevrolet or GMC short-bed pickup trucks with the truck bed puck system (year range specific). Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the A20 hitch and slider and equipping the truck for 5th wheel towing. Once installed, the S20 slider can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. This A20 hitch with puck system slider is only intended to fit select Chevrolet or GMC trucks with a year-specific puck system and cannot be installed without it.
Specifications
| Box Height in Inches - XA | 0 |
| Box Length in Inches - XA | 0 |
| Box Width in Inches - XA | 0 |
| Class ID | 0 |
| Description_ABR | ROLL |
| Description_ASC | A20 Sliding 5th Wheel Hitch, 20K, Select Silverado, Sierra, 6.5' Bed Puck System |
| Description_ASC | Adjustable anchors to eliminate chucking between the legs and puck system |
| Description_ASC | Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise |
| Description_ASC | Compatible with kingpin extension boxes, including common pivoting pin boxes |
| Description_ASC | Extra-wide head opening for easier coupling |
| Description_ASC | Fast, one-pin head removal makes moving the hitch easy |
| Description_ASC | Fits select Chevy / GMC short-bed trucks with puck system (year range specific) |
| Description_ASC | Fully articulating torsion head for controlled coupling and stable towing |
| Description_ASC | High-strength, interlocking jaws fully wrap the kingpin to minimize noise |
| Description_ASC | Includes a polyethylene lube plate to eliminate messy grease deposits |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Lockable handle self-resets to the ready-to-couple position after uncoupling |
| Description_ASC | Patent# 8,827,298 |
| Description_ASC | Quarter-turn anchoring system provides quick installation and removal |
| Description_ASC | S20 5th wheel slider #16564 provides 12" of travel in the truck bed |
| Description_ASC | Tested for safety in accordance with SAE J2638 |
| Description_ASC | Three-position coupling indicator is clearly visible from the truck cab |
| Description_ASM | CURT 16698 A20 5th Wheel Slider Hitch, 20,000 lbs, Select Chevy Silverado, GMC Sierra 2500, 3500 HD, 6.5-Foot Bed Puck System |
| Description_DEF | Fifth Wheel Trailer Hitch |
| Description_DES | A20 Sliding 5th Wheel Hitch, 20K, Select Silverado, Sierra, 6.5' Bed Puck System |
| Description_EXT | CURT 16698 A20 5th Wheel Slider Hitch, 20,000 lbs, Select Chevy Silverado, GMC Sierra 2500, 3500 HD, 6.5-Foot Bed Puck System |
| Description_INV | A20 Sliding 5th Wheel Hitch |
| Description_KEY | fifth 5 w sloppy receiver articulating cam trailer bushing pull factory tow rv gooseneck release rails towing back ultimate funnel glide king adapter mounts driver ball 20 k base 20000 fith 2016 2017 2018 2019 siding |
| Description_MKT | The CURT A20 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A20 is also fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that shows the coupling status. This 20K 5th wheel hitch comes with the CURT S20 slider and the CURT OEM puck system 5th wheel slider adapter. It is designed to be mounted on select Chevrolet or GMC short-bed pickup trucks with the truck bed puck system (year range specific). Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the A20 hitch and slider and equipping the truck for 5th wheel towing. Once installed, the S20 slider can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. This A20 hitch with puck system slider is only intended to fit select Chevrolet or GMC trucks with a year-specific puck system and cannot be installed without it. |
| Description_SHO | A20 5th Wheel Hitch |
| Description_SLA | The CURT A20 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A20 is also fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that shows the coupling status. This 20K 5th wheel hitch comes with the CURT S20 slider and the CURT OEM puck system 5th wheel slider adapter. It is designed to be mounted on select Chevrolet or GMC short-bed pickup trucks with the truck bed puck system (year range specific). Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the A20 hitch and slider and equipping the truck for 5th wheel towing. Once installed, the S20 slider can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. This A20 hitch with puck system slider is only intended to fit select Chevrolet or GMC trucks with a year-specific puck system and cannot be installed without it. |
| Finish - XA | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 20,000 LB |
| height | 14.5 |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| length | 57.71 |
| LTL | N |
| Parcel Allowed - XA | No |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 14.500 |
| Retail Length - XA | 57.710 |
| Retail Width - XA | 32.000 |
| Shipping Weight - XA | 288.000 |
| Tariff 301 - XA | Yes |
| Title | A20 Sliding 5th Wheel Hitch, 20K, Select Silverado, Sierra, 6.5' Bed Puck System |
| Vertical Load | 5,000 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 288.0 |
| width | 32.0 |
