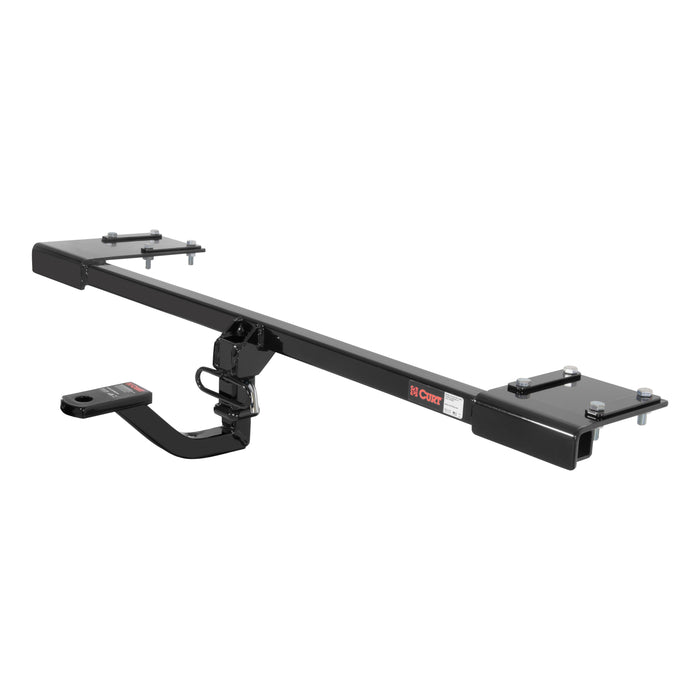

CURT 11713 Class 1 Vertical Receiver Trailer Hitch with 1-1/4in. Adapter with 3/4in. Hole
by CURT
SKU ds_BKDK_11713
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$605.10
-
Original price
$605.10
Original price
$605.10
$605.10
$605.10
-
$605.10
Current price
$605.10
Availability:
Out of stock
Description
CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount receiver lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 2,000 lbs. of gross trailer weight and 200 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).Class 1 hitches feature a 1-1/4" x 1-1/4" receiver tube opening and are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch comes with a vertical receiver tube and is designed to be a custom fit trailer hitch for the Toyota MR2 coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with a hitch pin and clip, all necessary installation hardware and an old-style ball mount to fit the vertical receiver tube. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat finish that provide a lasting defense against rust, wear and harmful UV rays.
Resources
Installation InstructionsSpecifications
| Body Shape | Square |
| Box Height in Inches - XA | 13 |
| Box Length in Inches - XA | 46 |
| Box Width in Inches - XA | 13 |
| Class ID | 1 |
| Description_ABR | CL 1 |
| Description_ASC | Class 1 Vertical Receiver Trailer Hitch with 1-1/4" Adapter with 3/4" Hole |
| Description_ASC | Co-cured in a rust-resistant liquid A-coat, inside and out |
| Description_ASC | Concealed main body for OE look and seamless integration with the vehicle |
| Description_ASC | Constructed with a vertical receiver tube to accept an adapter |
| Description_ASC | Engineered with a vehicle-specific design for a custom fit |
| Description_ASC | Equipped with an open-back receiver for easy cleaning |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Made in USA (may include imported hardware) |
| Description_ASC | Precisely welded for superior strength and fit |
| Description_ASC | Protected by a durable high-gloss black powder coat finish |
| Description_ASC | Tested for safety in accordance with SAE J684 |
| Description_ASM | CURT 11713 Class 1 Vertical Trailer with Mount, 1-1/4-Inch Receiver, Fits Select Toyota MR2 Coupe |
| Description_DEF | Trailer Hitch |
| Description_DES | Class 1 Vertical Receiver Trailer Hitch with 1-1/4" Adapter with 3/4" Hole |
| Description_DES | Class 1 Vertical Receiver Trailer Hitch with 1-1/4in. Adapter with 3/4in. Hole |
| Description_EXT | CURT 11713 Class 1 Vertical Trailer with Mount, 1-1/4-Inch Receiver, Fits Select Toyota MR2 Coupe |
| Description_EXT | CURT 11713 Class 1 Vertical Trailer with Mount; 1-1/4-Inch Receiver; Fits Select Toyota MR2 Coupe |
| Description_FAB | Co-Cured In A Rust-Resistant Liquid Bonderite Coating |
| Description_FAB | Constructed w/A Vertical Receiver Tube To Accept An Adapter |
| Description_FAB | Equipped w/An Open-Back Receiver For Easy Cleaning |
| Description_FAB | Made in USA [may include imported hardware] |
| Description_FAB | Made w/A Vehicle-Specific Design For A Custom Fit |
| Description_FAB | Precisely Welded For Superior Strength And Fit |
| Description_FAB | Protected By A Durable High-Gloss Black Powder Coat Finish |
| Description_FAB | Strengthened w/A Cast Welded Seamless Collar |
| Description_FAB | Tested For Safety In Accordance w/SAE J684 |
| Description_INV | Class 1 Vertical Receiver Trailer Hitch |
| Description_KEY | 4 hidden hitchs box drawbar draw hauler bumper hole tite bar replacement adaptor cars 2000 2000lb 1.25 class-1 insert reciver oem auto coupler 1.25" one i max weld bolt |
| Description_LAB | Made In Logo |
| Description_MKT | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount receiver lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 2,000 lbs. of gross trailer weight and 200 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).Class 1 hitches feature a 1-1/4" x 1-1/4" receiver tube opening and are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch comes with a vertical receiver tube and is designed to be a custom fit trailer hitch for the Toyota MR2 coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with a hitch pin and clip, all necessary installation hardware and an old-style ball mount to fit the vertical receiver tube. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat finish that provide a lasting defense against rust, wear and harmful UV rays. |
| Description_MKT | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount receiver lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 2,000 lbs. of gross trailer weight and 200 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).Class 1 hitches feature a 1-1/4" x 1-1/4" receiver tube opening and are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch comes with a vertical receiver tube and is designed to be a custom fit trailer hitch for the Toyota MR2 coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with a hitch pin and clip, all necessary installation hardware and an old-style ball mount to fit the vertical receiver tube. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat finish that provide a lasting defense against rust, wear and harmful UV rays. |
| Description_SHO | Class 1 Hitch |
| Description_SHO | Class 1 Vertical Rec |
| Description_SLA | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount receiver lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 2,000 lbs. of gross trailer weight and 200 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more. It can also accept a hitch-mounted cargo carrier or bike rack, making it a very useful addition to cars with limited cargo space (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).Class 1 hitches feature a 1-1/4" x 1-1/4" receiver tube opening and are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch comes with a vertical receiver tube and is designed to be a custom fit trailer hitch for the Toyota MR2 coupe (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with a hitch pin and clip, all necessary installation hardware and an old-style ball mount to fit the vertical receiver tube. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat finish that provide a lasting defense against rust, wear and harmful UV rays. |
| Drilling Required | Yes |
| finish | Gloss Black Powder Coat |
| Finish - XA | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight | 2000 lbs. |
| height | 14.0 |
| Install Time | 40 Minutes |
| Item Class - XA | MFH |
| Item Height - XA | 6.250 |
| Item Length - XA | 45.810 |
| Item Width - XA | 11.650 |
| length | 47.0 |
| LTL | N |
| Main Body Shape | Square |
| Parcel Allowed - XA | Yes |
| Position | Rear |
| Product Weight - XA | 33.000 |
| Rate Class - XA | 70.0 |
| Receiver Tube Size | 1-1/4 IN |
| Receiver Tube Size | 1.250 in. |
| Retail Height - XA | 14.000 |
| Retail Length - XA | 47.000 |
| Retail Width - XA | 15.000 |
| Shipping Weight - XA | 38.500 |
| Tariff 301 - XA | No |
| Title | Class 1 Vertical Receiver Trailer Hitch with 1-1/4" Adapter with 3/4" Hole |
| Tongue Weight (TW) | 200 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 38.5 |
| Weight Carrying Capacity (WC) | 2,000 LB |
| width | 15.0 |
