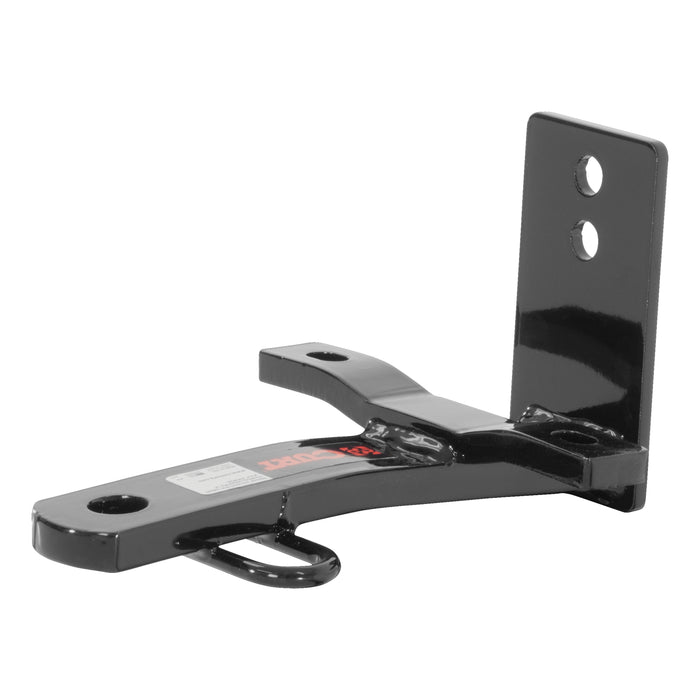

CURT 11643 Class 1 Fixed-Tongue Trailer Hitch with 3/4in. Trailer Ball Hole
by CURT
SKU ds_BKDK_11643
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$288.58
-
Original price
$288.58
Original price
$288.58
$288.58
$288.58
-
$288.58
Current price
$288.58
Availability:
Out of stock
Description
CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Toyota Van-Wagon (including cargo and 4WD) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.
Resources
Installation InstructionsSpecifications
| Body Shape | Flat |
| Description_ABR | CL 1 |
| Description_ASC | Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole |
| Description_ASC | Co-cured in a rust-resistant liquid A-coat, inside and out |
| Description_ASC | Concealed main body for OE look and seamless integration with the vehicle |
| Description_ASC | Engineered with a vehicle-specific design for a custom fit |
| Description_ASC | Fixed drawbar readily accepts a 3/4" trailer ball shank |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Made in USA (may include imported hardware) |
| Description_ASC | Precisely welded for superior strength and fit |
| Description_ASC | Protected by a durable high-gloss black powder coat finish |
| Description_ASC | Rated to 1,500 lbs. gross trailer weight and 150 lbs. tongue weight |
| Description_ASC | Tested for safety in accordance with SAE J684 |
| Description_ASM | CURT 11643 Class 1 Fixed-Tongue Trailer Hitch with 3/4-Inch Trailer Ball Hole for Select Toyota Vehicles |
| Description_DEF | Trailer Hitch |
| Description_DES | Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole |
| Description_DES | Class 1 Fixed-Tongue Trailer Hitch with 3/4in. Trailer Ball Hole |
| Description_EXT | CURT 11643 Class 1 Fixed-Tongue Trailer Hitch with 3/4-Inch Trailer Ball Hole for Select Toyota Vehicles |

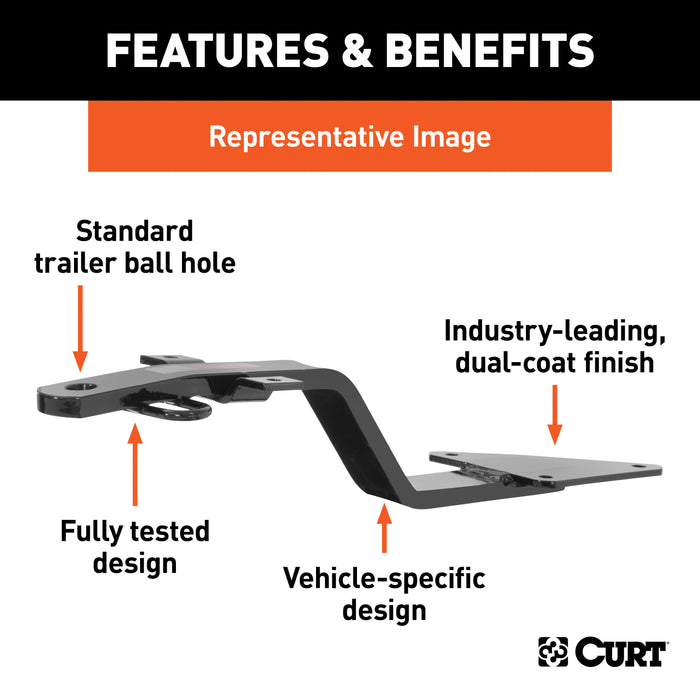

| Description_FAB | Backed By A Limited Lifetime Warranty |
| Description_FAB | Co-Cured In A Rust-Resistant Liquid Bonderite Coating |
| Description_FAB | Fixed Drawbar Readily Accepts A 3/4 In. Trailer Ball Shank |
| Description_FAB | Made in USA [may include imported hardware] |
| Description_FAB | Made w/A Vehicle-Specific Design For A Custom Fit |
| Description_FAB | Precisely Welded For Superior Strength And Fit |
| Description_FAB | Protected By A Durable High-Gloss Black Powder Coat Finish |
| Description_FAB | Tested For Safety In Accordance w/SAE J684 |
| Description_INV | Class 1 Fixed-Tongue Trailer Hitch |
| Description_KEY | 4 hidden hitchs box drawbar draw hauler bumper hole bar replacement adaptor cars 2000 2000lb class-1 insert reciver oem auto coupler one i max weld bolt |
| Description_LAB | Made In Logo |
| Description_MKT | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Toyota Van-Wagon (including cargo and 4WD) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. |
| Description_MKT | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Toyota Van-Wagon (including cargo and 4WD) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. |
| Description_SHO | Class 1 Fixed-Tongue |
| Description_SHO | Class 1 Hitch |
| Description_SLA | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,500 lbs. of gross trailer weight and 150 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Toyota Van-Wagon (including cargo and 4WD) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. |
| Drilling Required | Yes |
| finish | Gloss Black Powder Coat |
| Gross Trailer Weight | 1500 lbs. |
| height | 10.0 |
| Install Time | 30 Minutes |
| length | 12.0 |
| LTL | N |
| Position | Rear |
| Receiver Tube Size | 1.250 in. |
| WARNING CA Proposition 65 | No |
| weight | 7.4 |
| width | 10.0 |
