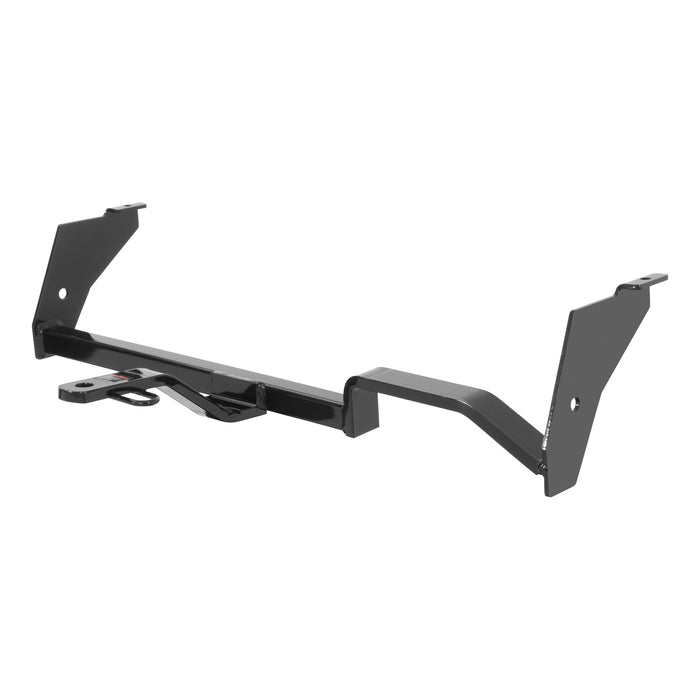

CURT 11598 Class 1 Fixed-Tongue Trailer Hitch with 3/4in. Trailer Ball Hole
by CURT
SKU ds_BKDK_11598
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$396.97
-
Original price
$396.97
Original price
$396.97
$396.97
$396.97
-
$396.97
Current price
$396.97
Availability:
Out of stock
Description
CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,000 lbs. of gross trailer weight and 100 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Mazda 323 hatchback (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.
Resources
Installation InstructionsSpecifications
| Body Shape | Square |
| Box Height in Inches - XA | 19 |
| Box Length in Inches - XA | 44 |
| Box Width in Inches - XA | 11 |
| Class ID | 1 |
| Description_ABR | CL 1 |
| Description_ASC | Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole |
| Description_ASC | Co-cured in a rust-resistant liquid A-coat, inside and out |
| Description_ASC | Concealed main body for OE look and seamless integration with the vehicle |
| Description_ASC | Engineered with a vehicle-specific design for a custom fit |
| Description_ASC | Fixed drawbar readily accepts a 3/4" trailer ball shank |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year parts) |
| Description_ASC | Made in USA (may include imported hardware) |
| Description_ASC | Precisely welded for superior strength and fit |
| Description_ASC | Protected by a durable high-gloss black powder coat finish |
| Description_ASC | Rated to 1,000 lbs. gross trailer weight and 100 lbs. tongue weight |
| Description_ASC | Tested for safety in accordance with SAE J684 |
| Description_ASM | CURT 11598 Class 1 Fixed-Tongue Trailer Hitch with 3/4-Inch Trailer Ball Hole for Select Mazda 323 |
| Description_DEF | Trailer Hitch |
| Description_DES | Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole |
| Description_DES | Class 1 Fixed-Tongue Trailer Hitch with 3/4in. Trailer Ball Hole |
| Description_EXT | CURT 11598 Class 1 Fixed-Tongue Trailer Hitch with 3/4-Inch Trailer Ball Hole for Select Mazda 323 |
| Description_FAB | Backed By A Limited Lifetime Warranty |
| Description_FAB | Co-Cured In A Rust-Resistant Liquid Bonderite Coating |
| Description_FAB | Fixed Drawbar Readily Accepts A 3/4 In. Trailer Ball Shank |
| Description_FAB | Made in USA [may include imported hardware] |
| Description_FAB | Made w/A Vehicle-Specific Design For A Custom Fit |
| Description_FAB | Precisely Welded For Superior Strength And Fit |
| Description_FAB | Protected By A Durable High-Gloss Black Powder Coat Finish |
| Description_FAB | Tested For Safety In Accordance w/SAE J684 |
| Description_INV | Class 1 Fixed-Tongue Trailer Hitch |
| Description_KEY | 4 hidden hitchs box drawbar draw hauler bumper hole bar replacement adaptor cars 2000 2000lb class-1 insert reciver oem auto coupler one i max weld bolt |
| Description_LAB | Made In Logo |
| Description_MKT | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,000 lbs. of gross trailer weight and 100 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Mazda 323 hatchback (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. |
| Description_MKT | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,000 lbs. of gross trailer weight and 100 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Mazda 323 hatchback (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. |
| Description_SHO | Class 1 Fixed-Tongue |
| Description_SHO | Class 1 Hitch |
| Description_SLA | CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 1,000 lbs. of gross trailer weight and 100 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Mazda 323 hatchback (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). It features a square tube frame and comes with all necessary installation hardware. Each CURT class 1 hitch is co-cured with a liquid A-coat and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays. |
| Drilling Required | Yes |
| finish | Gloss Black Powder Coat |
| Finish - XA | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight | 1000 lbs. |
| height | 12.0 |
| Install Time | 30 Minutes |
| Item Class - XA | MFH |
| Item Height - XA | 5.870 |
| Item Length - XA | 39.000 |
| Item Width - XA | 19.550 |
| length | 45.0 |
| LTL | N |
| Main Body Shape | Square |
| Parcel Allowed - XA | Yes |
| Position | Rear |
| Product Weight - XA | 23.000 |
| Rate Class - XA | 70.0 |
| Receiver Tube Size | 1.250 in. |
| Receiver Tube Size | No Receiver Tube |
| Retail Height - XA | 12.000 |
| Retail Length - XA | 45.000 |
| Retail Width - XA | 21.000 |
| Shipping Weight - XA | 29.300 |
| Tariff 301 - XA | No |
| Title | Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole |
| Tongue Weight (TW) | 100 LB |
| WARNING CA Proposition 65 | No |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| weight | 29.3 |
| Weight Carrying Capacity (WC) | 1,000 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| width | 21.0 |
