COMP Cams 7230TS1-KIT Conical Valve Spring Kit for GM LS1, LS2 and LS3 w/ Tool Steel Retainers
by COMP Cams
SKU ds_BDQQ_7230TS1-KIT
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,079.13
-
Original price
$1,079.13
Original price
$1,079.13
$1,079.13
$1,079.13
-
$1,079.13
Current price
$1,079.13
Availability:
Out of stock
Description

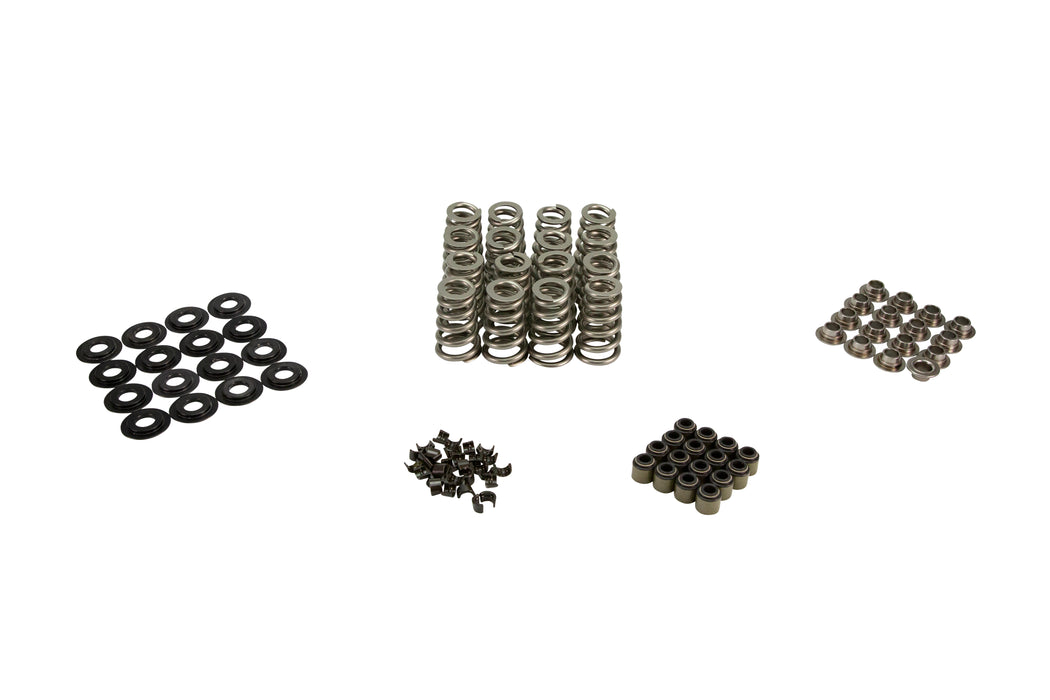

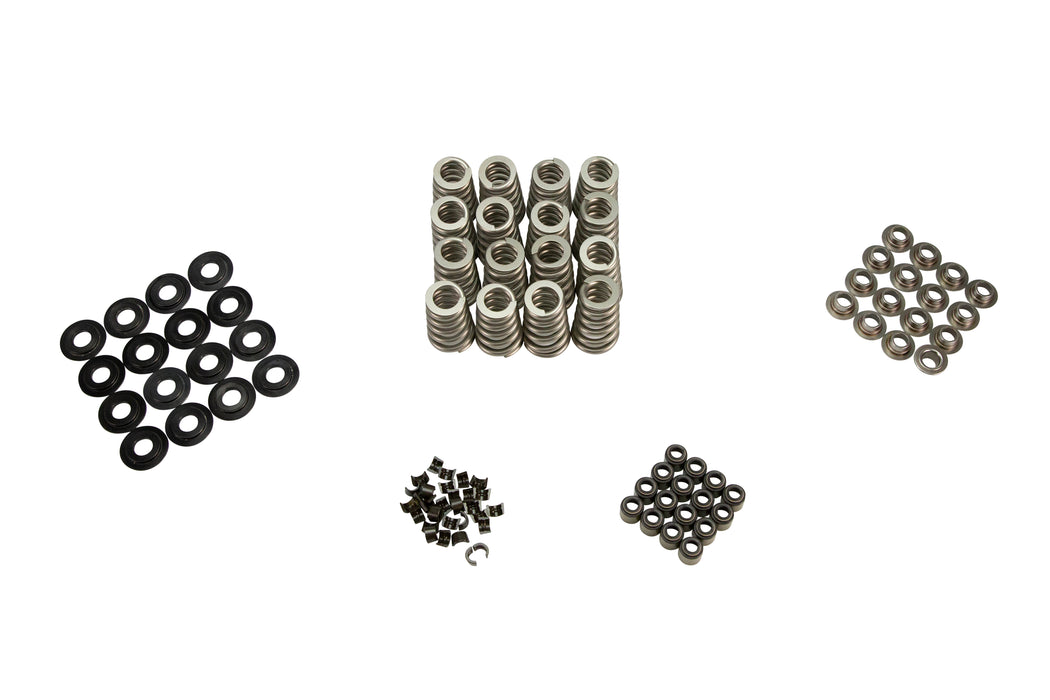

Conical Valve Spring Kit for GM LS1, LS2 and LS3 w/ Tool Steel Retainers
Resources
Installation InstructionsSpecifications
| Description_ASM | LS1, LS2, LS3, LS6, 4.8, 5.3, 5.7, 6.0 and 6.2 engines |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | Conical Valve Spring Kit for GM LS1, LS2 and LS3 w/ Tool Steel Retainers |
| Description_DES | ID Spring Locator Set of 16 - 1.300" OD, .505" ID, .040" Thickness |
| Description_DES | Machined Steel Set of 16 - 7 Degree, 8mm, Single Groove Race Locks |
| Description_DES | Race Sportsman 1.332" OD Conical Springs; 1.900" Installed Height; 16 Springs |
| Description_DES | Set of 16 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem |
| Description_DES | Tool Steel Retainers for 7228/7230 Conical Valve Springs |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | CnclTSLS1SprngKit |
| Description_SHP | None |
| height | 6.0 |
| length | 12.0 |
| LTL | N |
| weight | 4.2 |
| width | 3.0 |
