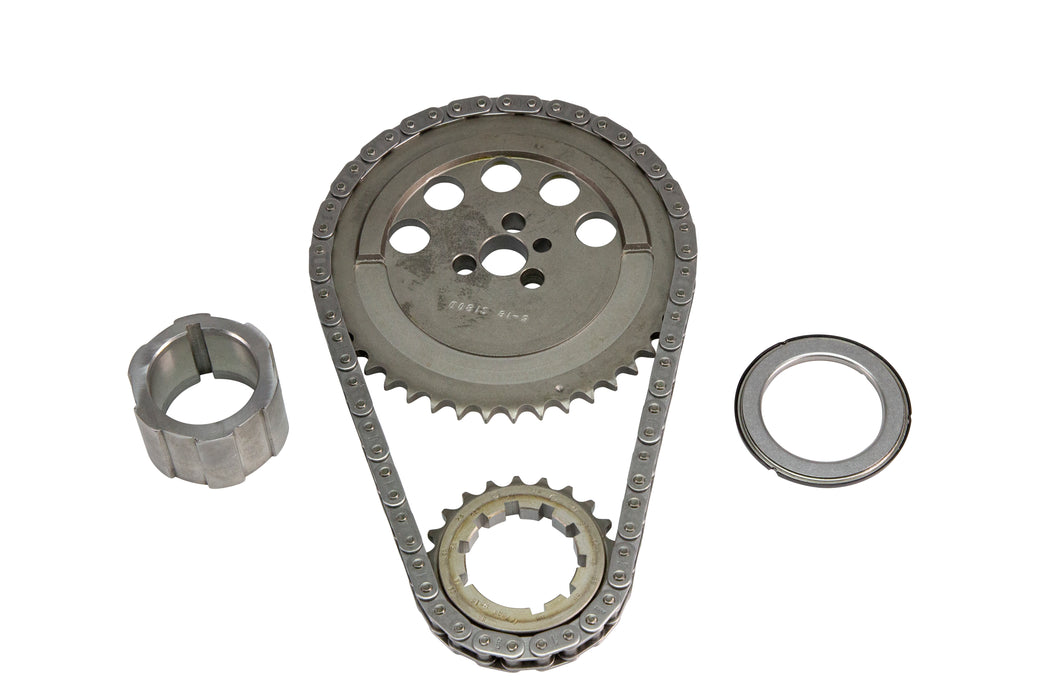

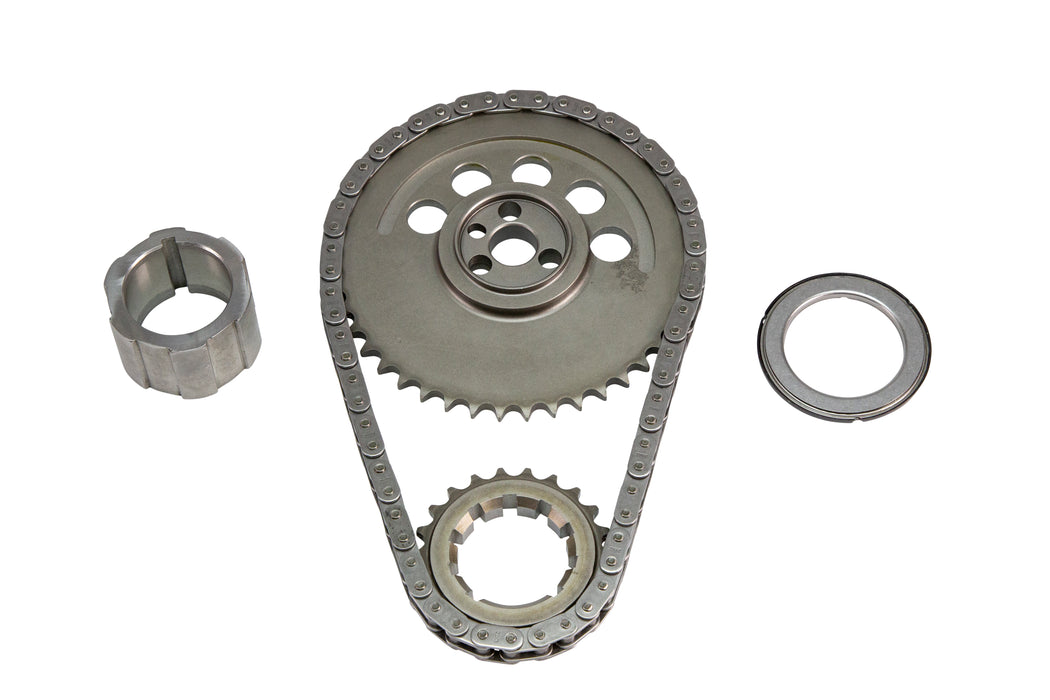

COMP Cams 7111 Keyway Adjustable Billet 24X Reluctor 3-Bolt Timing Set for GM LS
by COMP Cams
SKU ds_BDQQ_7111
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$604.97
-
Original price
$604.97
Original price
$604.97
$604.97
$604.97
-
$604.97
Current price
$604.97
Availability:
Out of stock
Description
Made from billet steel, this keyway adjustable timing set for 24X 3-Bolt LS engines is perfect for all-out racing engines. Featuring our C5-R racing timing chain, a roller thrust bearing and hand-matched sets to ensure minimal run-out.
Resources
Installation InstructionsSpecifications
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description_ASC | See 7113 for 58X Timing Set |
| Description_ASM | 3-Bolt GM LS Engines w/ 24X/1 Pole Reluctor |
| Description_DEF | Engine Timing Set |
| Description_DES | Keyway Adjustable Billet 24X Reluctor 3-Bolt Timing Set for GM LS |
| Description_EXT | Made from billet steel, this keyway adjustable timing set for 24X 3-Bolt LS engines is perfect for all-out racing engines. Featuring our C5-R racing timing chain, a roller thrust bearing and hand-matched sets to ensure minimal run-out. |
| Description_FAB | 9 total adjustment positions for a maximum of 8 degrees advance and retard |
| Description_FAB | C5-R Racing Timing Chain features fine blanked links, press-fit center links and a proprietary heat-treat process |
| Description_FAB | Induction heat-treated for long term durability and extreme load capacity |
| Description_FAB | Precision CNC machined billet sprockets |
| Description_INV | KeywayBillet24X3BoltLSTimingSet |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | KeywyBlt24X3BltLSSet |
| Description_SHP | None |
| Engine Family | LS |
| height | 1.5 |
| Keyway Adjustable | Yes |
| length | 10.0 |
| Maximum Advance | 8 |
| Maximum Advance At Camshaft | 4 |
| Maximum Retard | 8 |
| Maximum Retard At Camshaft | 4 |
| Number of Crankshaft Keyways | 9 |
| Timing Chain Type | Single |
| Timing Set Series | Keyway Adjustable Billet |
| Title | Keyway Adjustable Billet 24X Reluctor 3-Bolt Timing Set for GM LS |
| weight | 3.85 |
| width | 6.75 |
