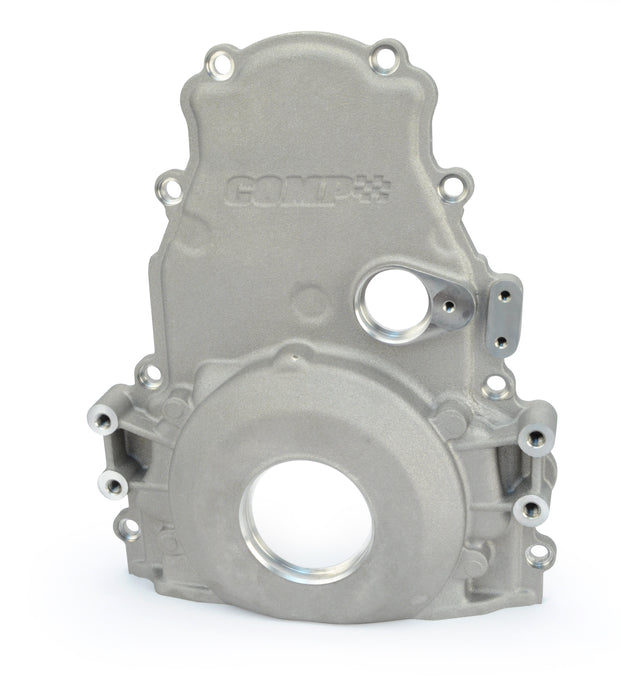

COMP Cams 5496 GM LS1/2/3/6 Timing Cover
by COMP Cams
SKU ds_BDQQ_5496
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$512.37
-
Original price
$512.37
Original price
$512.37
$512.37
$512.37
-
$512.37
Current price
$512.37
Availability:
Out of stock
Description
Designed for performance applications, this cover accommodates OE and aftermarket LS1, 2, 3 and 6. With a provision for a timing pointer, cam sensor or crank trigger, our cover fits double roller timing sets and aftermarket oil pumps.
Resources
Installation InstructionsSpecifications
| Description_ASC | Includes timing cover gasket and crank seal. Requires no modification to factory blocks. |
| Description_ASC | Variable Valve Timing equipped engines such as the L99, L92, LC9, L20, L9H, L96, LH9, LZ1, LMF, L94 and LC8 all require removal of VVT actuator to fit properly. |
| Description_ASM | Fits LS1, LS2, LS3, LS6 as well as 4.8, 5.3 and 6.0 Liter Truck/SUV engines. |
| Description_DEF | Engine Timing Cover |
| Description_DES | GM LS1/2/3/6 Timing Cover |
| Description_EXT | Designed for performance applications, this cover accommodates OE and aftermarket LS1, 2, 3 and 6. With a provision for a timing pointer, cam sensor or crank trigger, our cover fits double roller timing sets and aftermarket oil pumps. |
| Description_FAB | Accommodates aftermarket double roller timing sets and high pressure/high volume oil pumps. |
| Description_FAB | Features provisions for a timing pointer, OE camhaft sensor and Chevrolet Big Block crank trigger. |

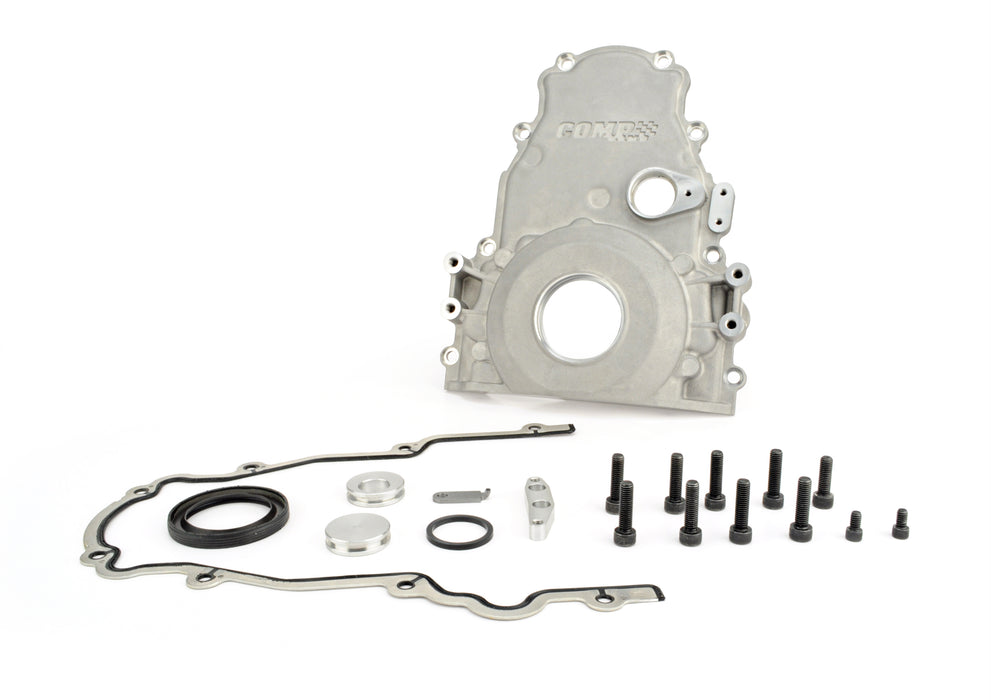

| Description_FAB | Includes crankshaft seal and timing cover gasket. |
| Description_INV | LS1,2,3,6 Timing Cover |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | LS1,2,3,6Cover |
| Description_SHP | None |
| Description_SLA | LS Timing Cover |
| height | 4.8 |
| length | 14.2 |
| LTL | N |
| weight | 6.81 |
| width | 11.8 |
