COMP Cams 26925CS-KIT Engine Valve Spring Kit
by COMP Cams
SKU ds_BDQQ_26925CS-KIT
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$789.29
Original price
$789.29
-
Original price
$789.29
Original price
$789.29
Current price
$763.37
$763.37
-
$763.37
Current price
$763.37
Availability:
Out of stock
Description

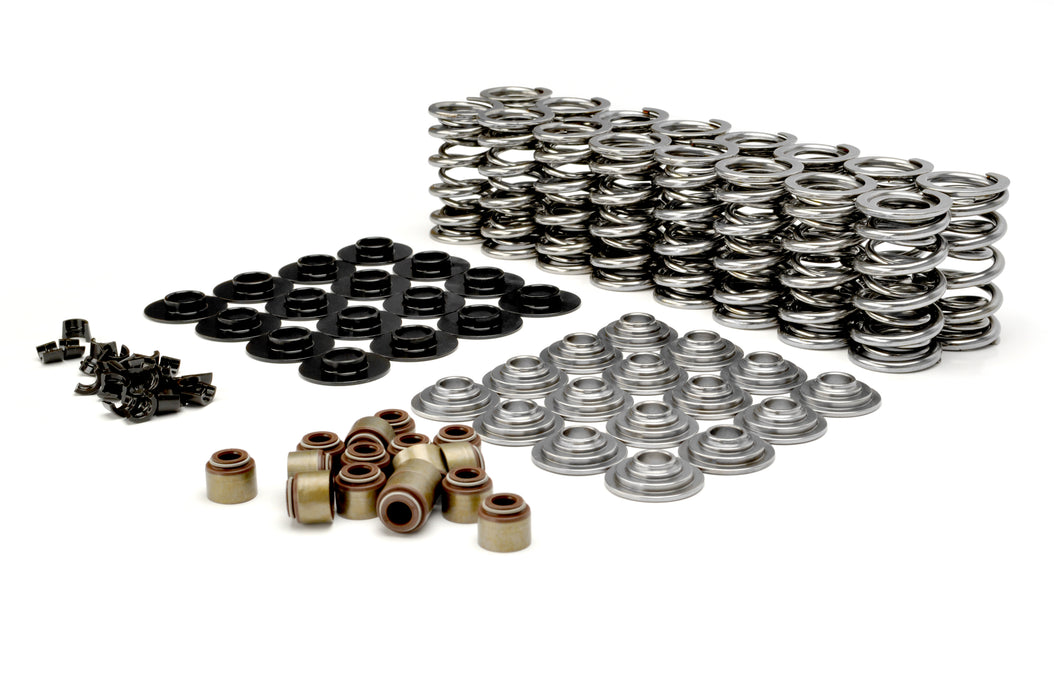

Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and chromemoly steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .660" valve lift.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Bind Height | 1.070 |
| Damper | No |
| Description_ASC | See 26925TS-kit for kit with tool steel retainers. |
| Description_ASM | GM LS 4.8, 5.3, 5.7, 6.0 and 6.2 Cathedral/Rectangle Port Engines. Excludes LS7. |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | .660" Max Lift |
| Description_DES | GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers |
| Description_EXT | Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and chromemoly steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .660" valve lift. |
| Description_INV | LSDualSpringkit.66MaxLiftChromemolySteel |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | LSDualSprngKtCStl |
| Description_SHP | None |
| height | 3.0 |
| Inner Spring Inside Diameter | 0.680 |
| Installed Height | 1.810 |
| length | 13.5 |
| LTL | N |
| Max Lift | 0.660 |
| Number of Springs | 2 |
| Open Load | 405 |
| Outer Spring Inside Diameter | 0.958 |
| Outer Spring Outside Diameter | 1.320 |
| Retainer Material | Chromemoly Steel |
| Seat Pressure | 141 |
| Spring Rate | 400 |
| Spring Style | Dual |
| Title | GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers; .660" Max Lift |
| Valve Spring Series | Dual |
| weight | 3.07 |
| width | 3.75 |
