COMP Cams 26906TS-KIT Engine Valve Spring Kit
by COMP Cams
SKU ds_BDQQ_26906TS-KIT
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$740.27
-
Original price
$740.27
Original price
$740.27
$740.27
$740.27
-
$740.27
Current price
$740.27
Availability:
Out of stock
Description

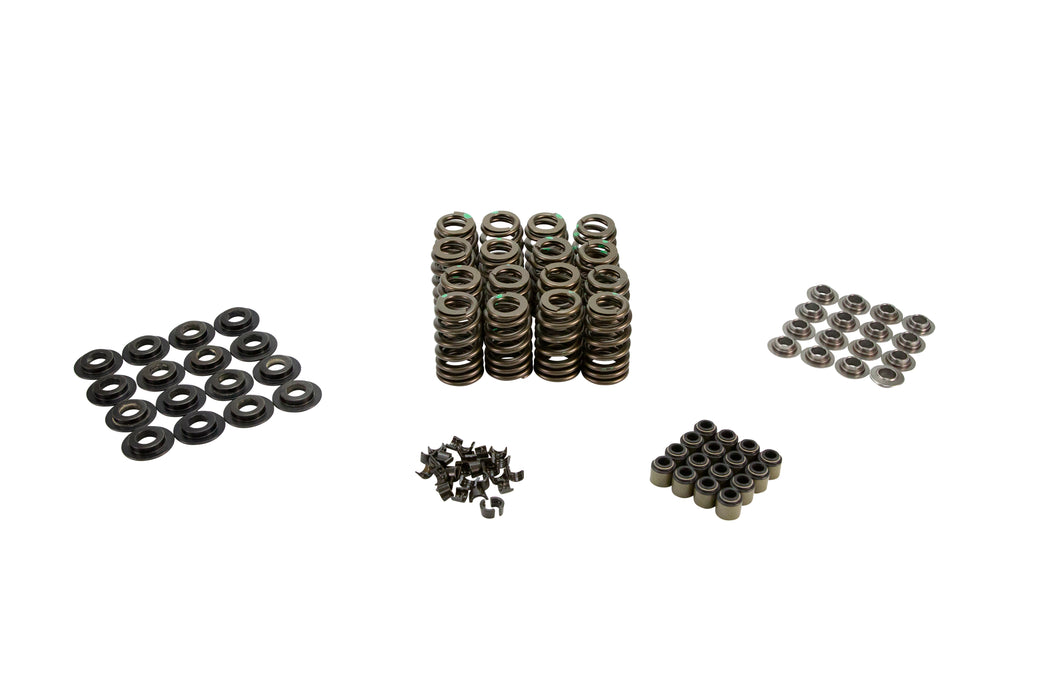

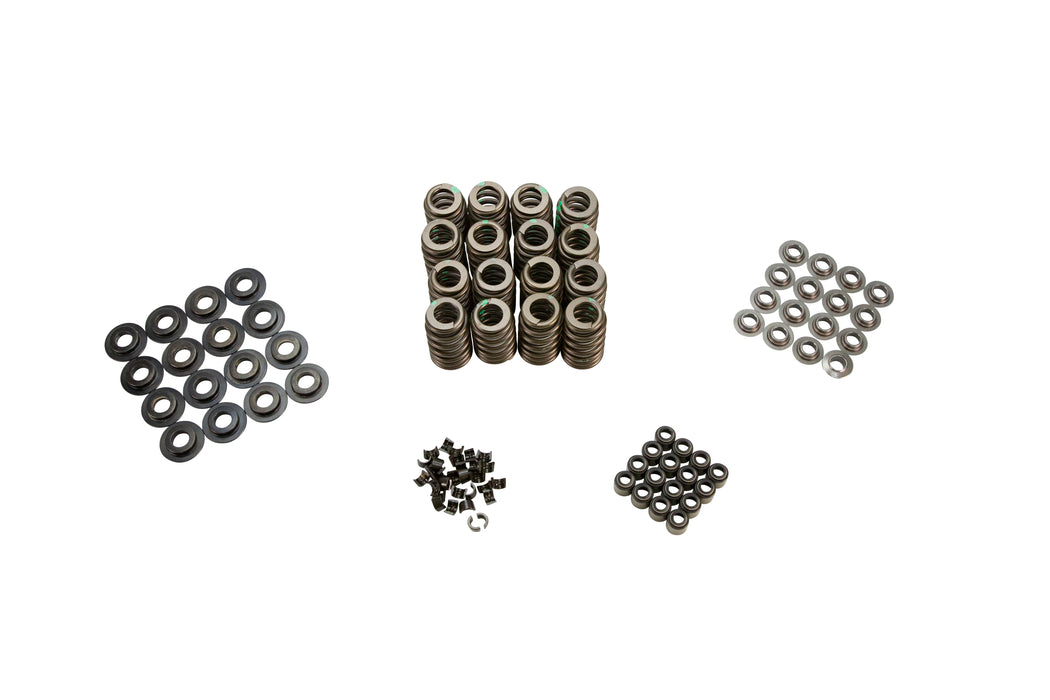

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and tool steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift.
Resources
Installation InstructionsSpecifications
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Bind Height | 1.181 |
| Compatible Shims | 4753 |
| Description_ASC | Available with Chromemoly Steel Retainers under 26906CS-KIT. |
| Description_ASM | Gm LS engines including truck engines, excluding LS7. |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | 0.580" Max Lift |
| Description_DES | 1 Steel Viton Valve Seal for .500" Guide Size, 8mm Valve Stem |
| Description_DES | 7 Degree Tool Steel Retainer for 8mm Valve, Spring w/ 1.290" O.D |
| Description_DES | ID Spring Locator - 1.300" OD, .510" ID, .060" Thickness |
| Description_DES | LS6+ Beehive Valve Spring Kit w/ Tool Steel Retainers |
| Description_DES | Machined Steel 7 Degree, 8mm, Single Groove Race Lock |
| Description_EXT | Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and tool steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift. |
| Description_INV | LS6+ToolSteelRetSpringKit |
| Description_KEY | GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed |
| Description_SHO | LS6+TStlSpringKit |
| Description_SHO | LS6PlusSpring |
| Description_SHP | None |
| Description_SLA | Beehive Spring Kit |
| height | 3.0 |
| length | 13.5 |
| Locator Inner Diameter | 0.510 |
| Locator Outer Diameter | 1.300 |
| Locator Thickness | 0.0600 |
| LTL | N |
| Max Lift | 0.580 |
| Retainer Material | Tool Steel |
| Seat Height | 1.800 |
| Seat Pressure | 92 |
| Title | LS6+ Beehive Valve Spring Kit w/ Tool Steel Retainers; 0.580" Max Lift |
| Valve Seal Type | Steel Jacketed Viton |
| weight | 3.07 |
| width | 3.75 |
