COMP Cams 26124-KIT Spring Kit for Powerstroke 6.0/6.4
by COMP Cams
SKU ds_BDQQ_26124-KIT
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$919.70
-
Original price
$919.70
Original price
$919.70
$919.70
$919.70
-
$919.70
Current price
$919.70
Availability:
Out of stock
Description

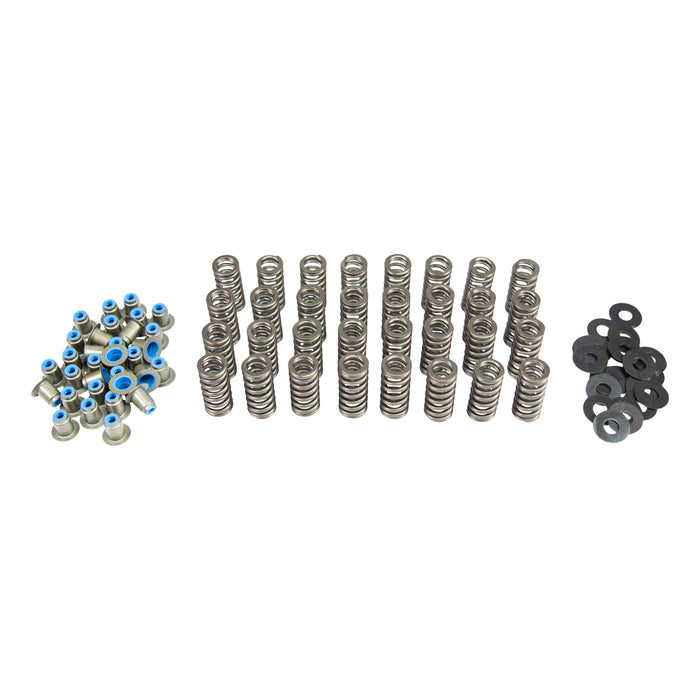

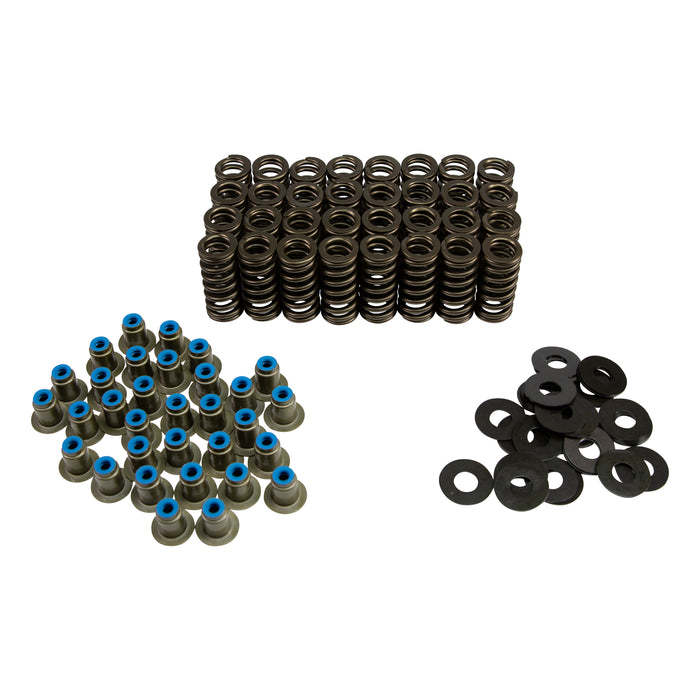

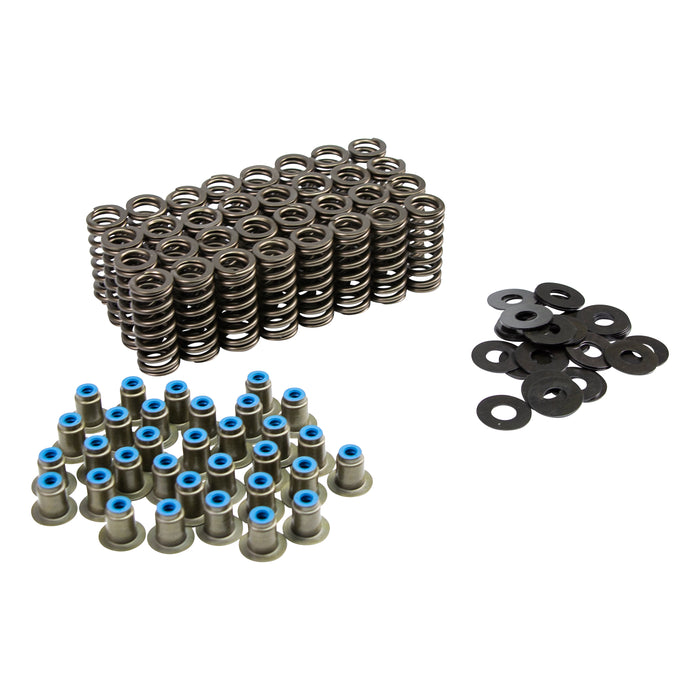

Includes COMP Cams® Part #26124 Ovate Wire Valve Springs, #535 valve seals and #4809 shims while making use of your stock retainers. Springs are also available as a set of 32 pieces or in single units without the valve seals and shims.
Specifications
| Coil Bind Height | 1.19 |
| Description_ASC | Available in a set of 32 under 26124-32 |
| Description_ASC | Available individually under 26124-1 |
| Description_ASM | Ford Powerstroke 6.0/6.4 |
| Description_DEF | Engine Valve Spring Kit |
| Description_DES | Spring Kit for Powerstroke 6.0/6.4 |
| Description_EXT | Includes COMP Cams® Part #26124 Ovate Wire Valve Springs, #535 valve seals and #4809 shims while making use of your stock retainers. Springs are also available as a set of 32 pieces or in single units without the valve seals and shims. |
| Description_FAB | Increased spring rate, Higher seat load for much better dynamic stability. Unique ovate spring wire to better manage operation stresses & create additional dynamic control to help valve train reliability at elevated RPM and boost pressures. |
| Description_INV | Powerstroke Spring Kit |
| Description_SHO | Spring Kit |
| Description_SHP | None |
| height | 3.0 |
| Inside Diameter | .647 |
| Installed Height | 1.77 |
| length | 13.5 |
| LTL | N |
| Max Lift | .515 |
| Number of Springs | Single |
| Open Load | 300@1.270 |
| Outside Diameter | 1.010 |
| Seat Pressure | 140 |
| Spring Rate | 320 |
| Spring Style | Straight |
| weight | 3.07 |
| width | 3.75 |
