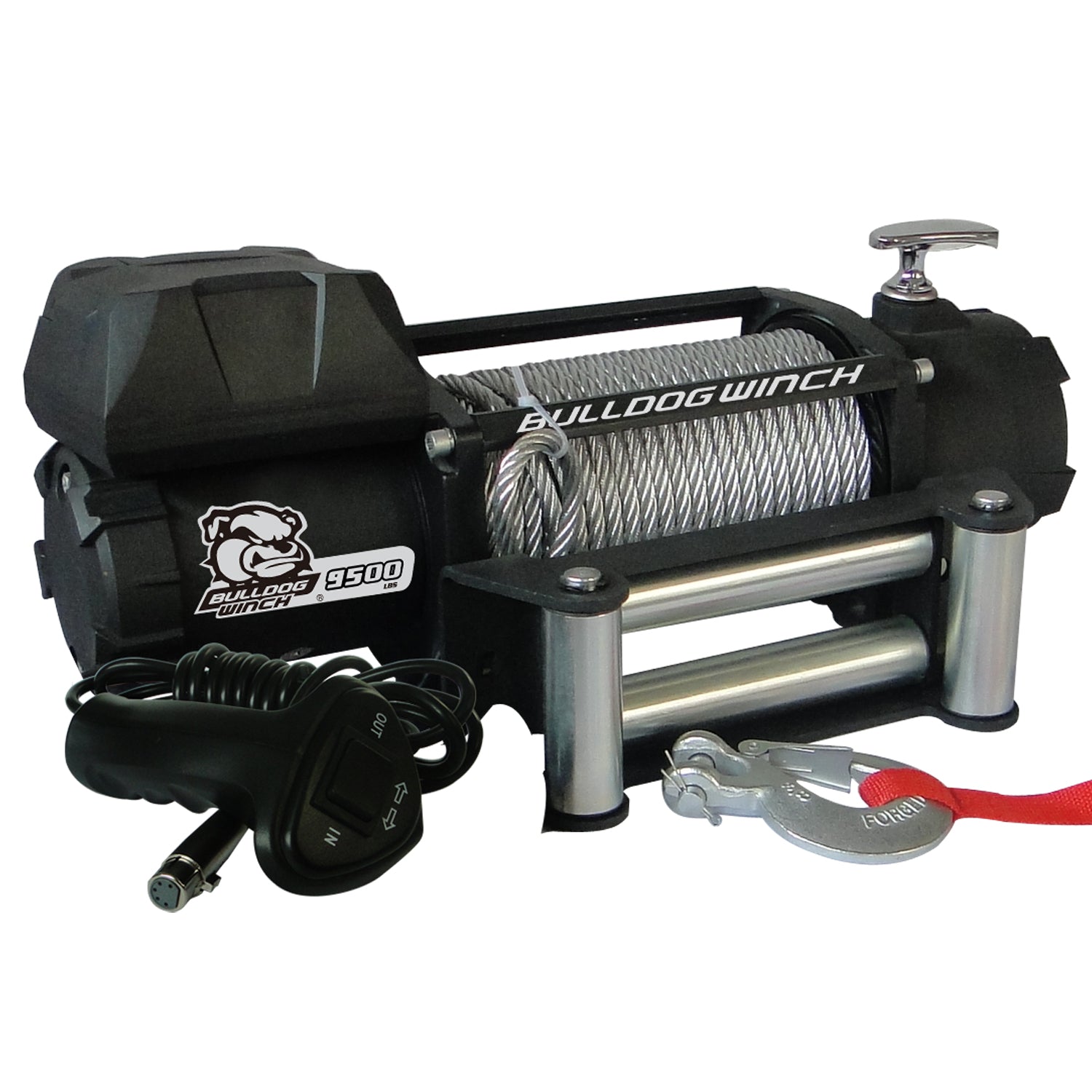

Bulldog Winch 10042 9,500 LB Winch 100 Ft Wire Rope 5.5hp Series Wound Motor Roller Fairlead Bulldog Winch
SKU ds_FMJR_10042
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$607.41
-
Original price
$607.41
Original price
$607.41
$607.41
$607.41
-
$607.41
Current price
$607.41
Description
9,500 LB Winch 100 Ft Wire Rope 5.5hp Series Wound Motor Roller Fairlead from Bulldog Winch.
Details:
- Pull capacity: 9,500 LB
- 100 Foot Wire rope
- Motor: 5.5 HP 12vDC Series Wound
- Power Unit: Multi Mount/ Remote Mountable
- Controller: Wired: Hand held with 12 foot lead included
- Battery Leads: 6 Foot
- Gear Train: 3 Stage Planetary
- Gear Ratio: 265:1
- Clutch: Freespooling
- Brake: Automatic load hold in drum
- Overall Dimensions: 21.7 x 6.3 X 8.6 inch (551 x 160 x 218mm)
- Drum Diameter x L: 2.5 x 8.8 inch (63.5 x 223.5mm)
- Mounting Bolt Pattern: 10 x 4.5 inch
- Warranty: 2 year Limited
- Battery Recommendation: 650CCA
Specifications
| battery_recommendation | 650 CCA |
| bolt_pattern | 10 inch x 4.5 inch |
| brake_type | Automatic Load Hold in Drum |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/bulldog%20logo.png |
| clutch_type | Freespooling |
| drum_diameter | 2.5 inch x 8.8 inch |
| gear_box | Clockable to Rotate Shifter |
| gear_ratio | 265:1 |
| gear_train | 3-Stage Planetary |
| height | 10.5 |
| last_update | 2023-04-03 03:49:41 |
| last_update | 2023-05-17 04:43:01 |
| length | 24.0 |
| material_l | Steel |
| mfg_label | Winch |
| overall_dimensions | 21.7 inchL x 6.3 inchW X 8.6 inchH |
| power_unit | Multi-Mount/Remote Mountable |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 9,500 LB |
| rope_type | Wire |
| Series | Standard |
| sold_as | Each |
| switch_type | 450 Amp Sealed Contractor |
| Universal | Yes |
| vehicle_type | Jeep |
| Warranty | 2 Year Limited |
| weight | 80.1 |
| width | 14.0 |
| winch_motor | Series Wound 12vDC5.5hp |
