Bilstein A411152010 CA4 Series - Suspension Shock Absorber
by Bilstein
SKU ds_BBGL_A411152010
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$505.72
-
Original price
$505.72
Original price
$505.72
$505.72
$505.72
-
$505.72
Current price
$505.72
Availability:
Out of stock
Description

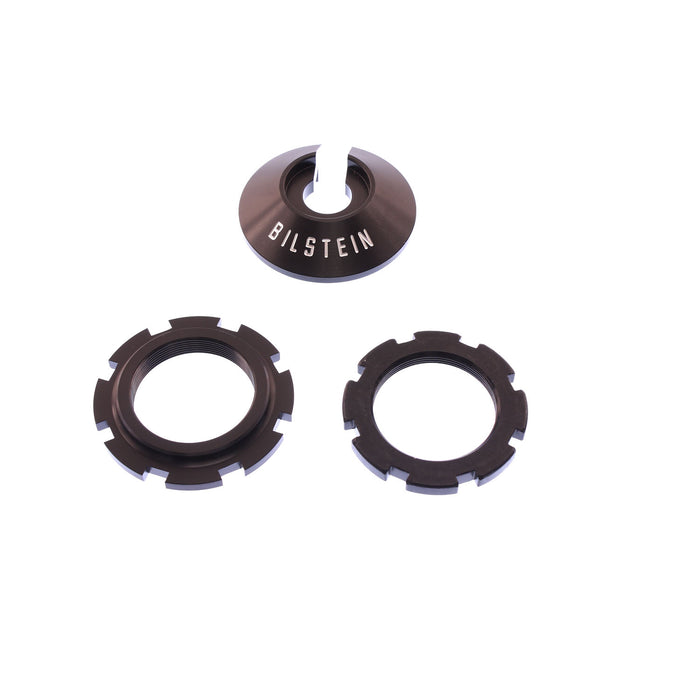

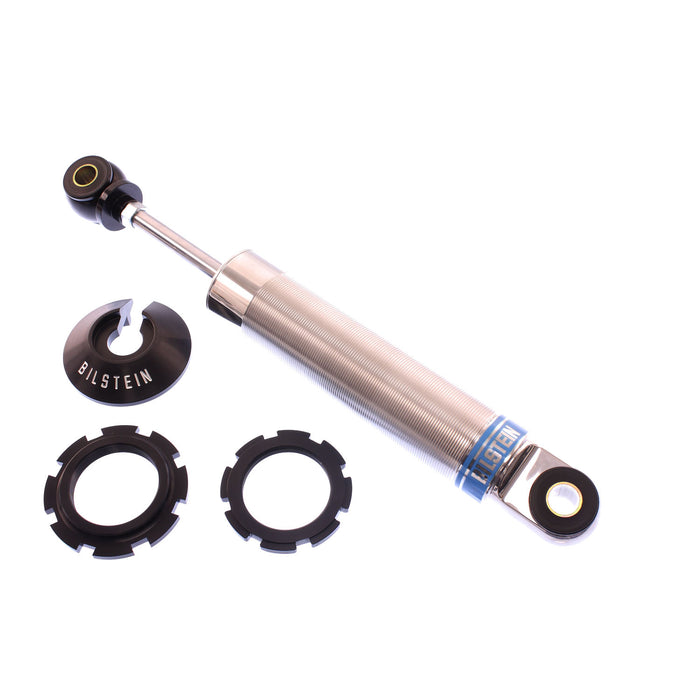

Bilstein CA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.
Specifications
| Boot Included | No |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) | 11.67 |
| Collapsed Length (MM) | 296.5 |
| Compression @0.52m/s | 720 |
| Description_ASM | No Applications |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | CA4 Series - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_INV | 15" ALU 2.5" COILOVER F 130/72 |
| Description_LAB | CA4 Series - Suspension Shock Absorber |
| Description_MKT | Bilstein CA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA4 Series shock absorbers provide a wide range of options to support any custom street rod application need. |
| Description_SHO | Shock |
| Extended Length (IN) | 15.16 |
| Extended Length (MM) | 385.0 |
| finish | Polished Aluminum |
| height | 2.75 |
| Internal Design | Monotube |
| length | 19.75 |
| Lower Mount Type | Eye 15.9mm |
| LTL | N |
| Position | Front |
| Rebound @0.52m/s | 1300 |
| Series | CA4 Series |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye 15.9mm |
| weight | 4.21 |
| width | 5.25 |
