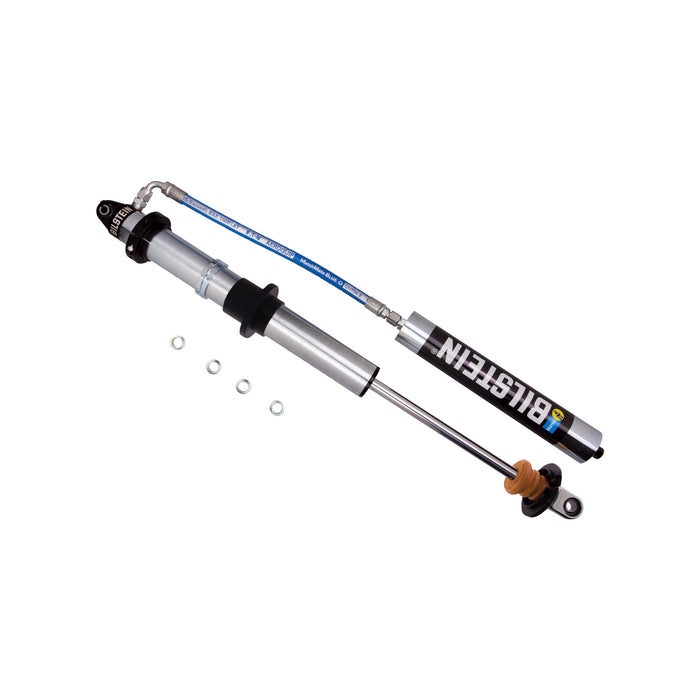

Bilstein 33-244501 M 9200 (Coilover) - Suspension Shock Absorber
by Bilstein
SKU ds_BBGL_33-244501
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,195.59
-
Original price
$1,195.59
Original price
$1,195.59
$1,195.59
$1,195.59
-
$1,195.59
Current price
$1,195.59
Availability:
Out of stock
Description
Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Specifications
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 60mm |
| Boot Included | N/A |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) | 26.50 |
| Collapsed Length (IN) Rounded | 27 |
| Collapsed Length (MM) | 673.1 |
| Compression @0.52m/s | 1000 |
| Description_ASM | No Applications |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | M 9200 (Coilover) - Suspension Shock Absorber |
| Description_EXT | 60mm Monotube Shock Absorber |
| Description_INV | 60mm Coilover, 16", 255/100, 9200 Series |
| Description_LAB | M 9200 (Coilover) - Suspension Shock Absorber |
| Description_MKT | Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance. |
| Description_SHO | Shock |
| Extended Length (IN) | 42.50 |
| Extended Length (IN) Rounded | 43 |
| Extended Length (MM) | 1079.5 |
| finish | Zinc Plated |
| height | 4.5 |
| Internal Design | Monotube |
| length | 36.0 |
| Lower Mount Type | Eye .5x1.5in |
| LTL | N |
| Mount Type | Eye-to-Eye |
| Optional Reservoir Clamp | N/A |
| Rebound @0.52m/s | 2550 |
| Reservoir | Yes |
| Series | M 9200 (Coilover) |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye .5x1.5in |
| weight | 26.19 |
| width | 7.5 |
