Bilstein 25-287820 B8 8100 (Bypass) - Suspension Shock Absorber
by Bilstein
SKU ds_BBGL_25-287820
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,446.75
-
Original price
$1,446.75
Original price
$1,446.75
$1,446.75
$1,446.75
-
$1,446.75
Current price
$1,446.75
Availability:
Out of stock
Description

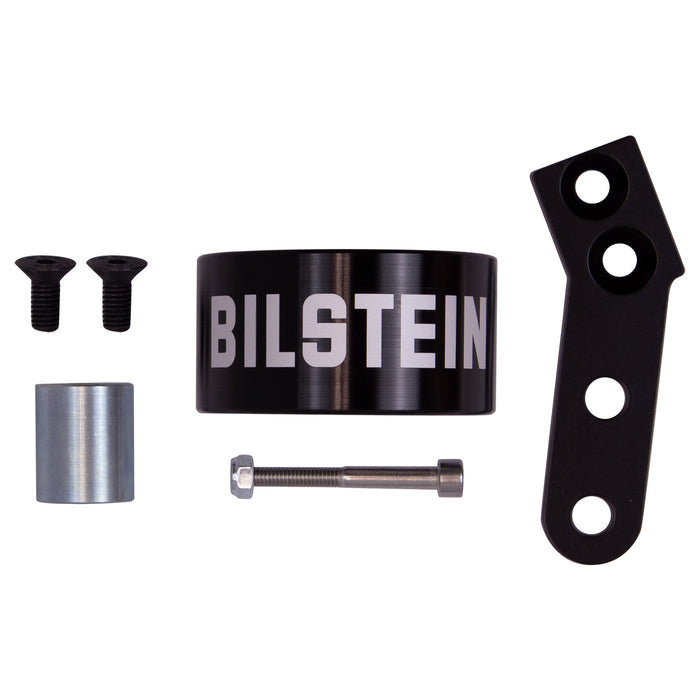

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Specifications
| Adjustable Damping | Double Adjustable – Compression and Rebound |
| Body Design | Bypass Body (Non-Coilover) |
| Body Diameter (ID) | 60mm |
| Boot Included | No |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) | 19.49 |
| Collapsed Length (MM) | 495.0 |
| Description_ASM | Jeep Wrangler 2023-2018 |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | B8 8100 (Bypass) - Suspension Shock Absorber |
| Description_EXT | 60mm Shock Absorber |
| Description_INV | Jeep JL 4 Door,'18-,LR,3.5" Lift,B8 8100 |
| Description_LAB | B8 8100 (Bypass) - Suspension Shock Absorber |
| Description_MKT | Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
| Description_SHO | Shock |
| Extended Length (IN) | 32.01 |
| Extended Length (MM) | 813.0 |
| finish | Zinc Plated |
| height | 8.88 |
| Internal Design | Monotube |
| length | 33.5 |
| Lower Mount Type | Eye 12.8mm |
| LTL | N |
| Reservoir | Yes |
| Series | B8 8100 (Bypass) |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye 12.8mm |
| weight | 22.4 |
| width | 11.88 |
