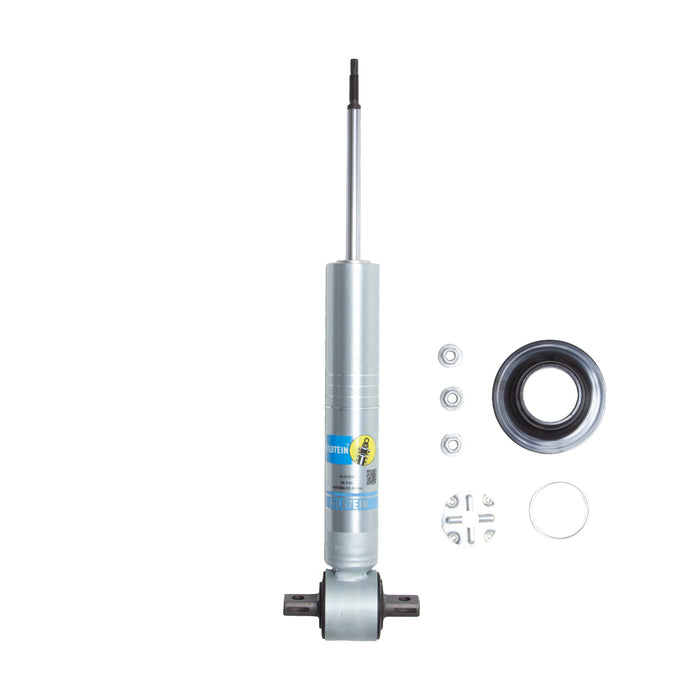

Bilstein 24-317818 Shock Absorber
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
46mm Monotube Shock Absorber
Features and Benefits
46mm monotube design ensures consistent fade-free performance in all conditions
Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift depending on the application
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Adjustable Damping:
Non-Adjustable
Body Design:
Snap Ring Grooved Body (Coilover)
Boot Included:
No
Collapsed Length (IN):
12.95
Collapsed Length (MM):
329.0
Extended Length (IN):
18.50
Extended Length (MM):
470.0
Finish:
Zinc Plated
Internal Design:
Monotube
Lower Mount Type:
Bar Pin
PartType:
Shocks / Struts
Piston Diameter:
46mm
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING:
Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:
No
Segment:
Light Truck
Series:
B8 5100 (Ride Height Adjustable)
Spring Max Travel (IN):
5.55
Spring Seat Included:
Yes
Title:
Bilstein Shock Absorbers
Upper Mount Type:
Stem
