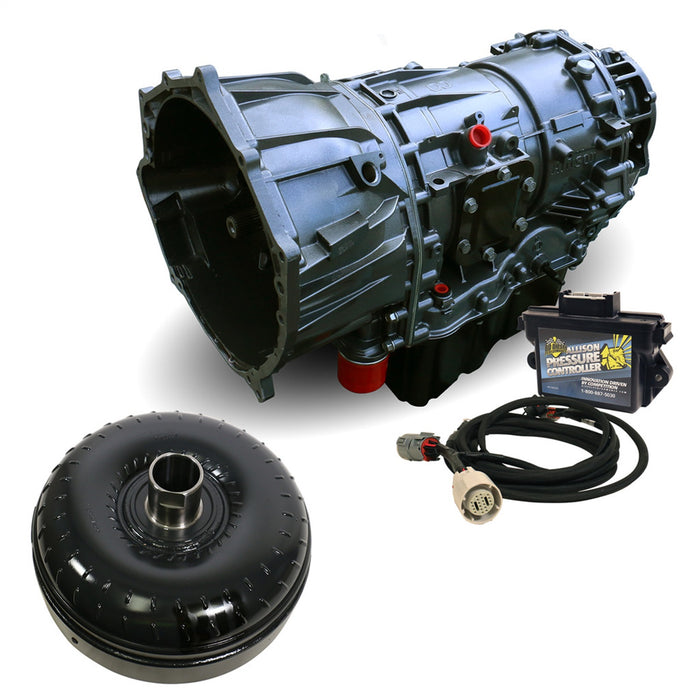

BD Diesel 1064754BM Auto Trans Assembly
by BD Diesel
SKU ds_BKJX_1064754BM
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$10,061.95
-
Original price
$10,061.95
Original price
$10,061.95
$10,061.95
$10,061.95
-
$10,061.95
Current price
$10,061.95
Availability:
Out of stock
Description
When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Specifications
| Description_DEF | Automatic Transmission Assembly |
| Description_DES | BD Duramax Trans & Converter Pkg Stage 5 c/w Controller Chevy 2011-2016 LML 4wd |
| Description_DES | Transmission Kit |
| Description_EXT | BD Duramax Allison Transmission & Converter Package Stage 5 c/w Billet Input,Triple Torque & Controller - Chevy 2011-2016 LML 4wd |
| Description_EXT | Transmission Kit; Complete Trans w/Auto Trans Pressure Controller Box/Wiring Harness; Incl. Triple Torque Converter; Enhanced Stall; Stage 5; |
| Description_FAB | Aluminum HD Deep Transmission Pan |
| Description_FAB | BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt |
| Description_FAB | Billet Input Shaft to take the "snap" from rapid throttle and high horsepower |
| Description_FAB | Cast stator designs maximizes torque |
| Description_FAB | Clutch Count: C1 8 clutches (14% increase over stock) |
| Description_FAB | Clutch Count: C2 7 clutches (17% increase over stock) |
| Description_FAB | Clutch Count: C3 7 clutches (75% increase over stock) |
| Description_FAB | Clutch Count: C4 7 clutches (17% increase over stock) |
| Description_FAB | Clutch Count: C5 7 clutches (17% increase over stock) |
| Description_FAB | Comes With BD Allison Pressure Box Delivering Up To 275 PSI |
| Description_FAB | Comes with BD Allison Pressure Box delivering up to 275PSI of line pressure |
| Description_FAB | Each transmission is dyno tested |
| Description_FAB | Eliminates Warpage From Clutch Heat |
| Description_FAB | Engineered Tighter Tolerances |
| Description_FAB | Enhanced Stall - Street/Towing applications |
| Description_FAB | Furnaced brazed turbine fins for improved fluid coupling efficiency |
| Description_FAB | HD springs absorb shock of engagement |
| Description_FAB | High energy GPZ(TM) frictions |
| Description_FAB | Increase in steel mass for better heat dissipation |
| Description_FAB | Increase Steel Mass For Better Heat Dissipation |
| Description_FAB | Increase The Durability Of Your Drivetrain |
| Description_FAB | Increased Clutch Count |
| Description_FAB | New sprag components ensure long term durability |
| Description_FAB | Reduced Overall Weight |
| Description_FAB | Reduced overall weight by 12lbs compared to competitors |
| Description_FAB | Riveted piston ensures alignment & eliminates vibration or embrittlement from welding |
| Description_FAB | Self-centering trapezoid teeth design increases contact decreases wear and chatter |
| Description_FAB | Stamp forged 1-piece cover |
| Description_FAB | Stamped Forged 1 Piece Cover |
| Description_FAB | Taller cover can be rebuilt more often |
| Description_FAB | Thrust bearings - not plastic thrust washers |
| Description_FAB | Torque Convertor Has Machined Positions |
| Description_FAB | TORQUE CONVERTOR: |
| Description_FAB | TRANSMISSION: |
| Description_FAB | Trapezoid Teeth Design |
| Description_FAB | Triple Disc |
| Description_FAB | Utilizes a new double cage stator sprag for increased strength, reduces common stator failures with the OE design. |
| Description_INV | TRANS PACKAGE CHEVY 2011-2016 LML 4WD |
| Description_LAB | Proposition 65 |
| Description_MKT | When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD. |
| Description_MKT | When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD. |
| Description_SHO | Auto Trans Assembly |
| Description_SHO | TRANS PKG STAGE 5 |
| height | 27.3 |
| length | 23.5 |
| LTL | N |
| weight | 415.0 |
| width | 44.5 |
