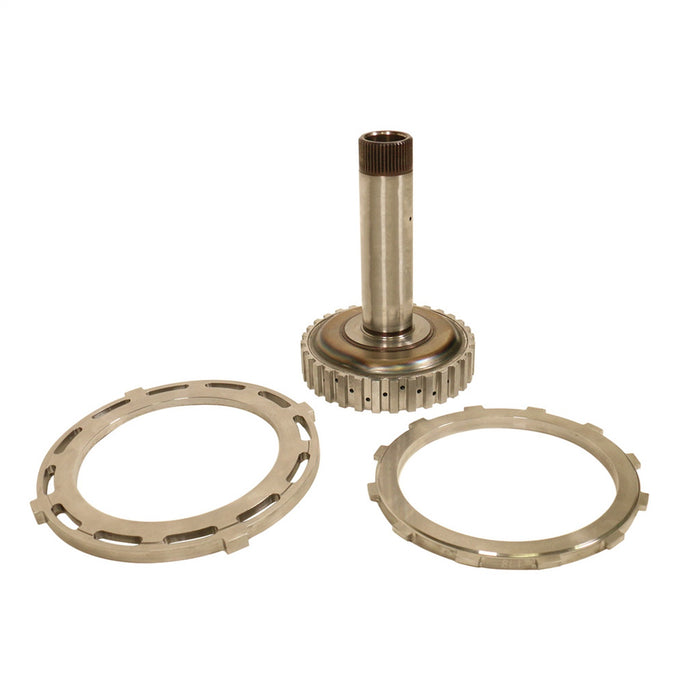

BD Diesel 1062035 Big Stack Overdrive Shaft and Reaction Plates Kit
by BD Diesel
SKU ds_BKJX_1062035
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$954.95
-
Original price
$954.95
Original price
$954.95
$954.95
$954.95
-
$954.95
Current price
$954.95
Description
The BD Big Stack consists of 16 overdrive clutches, made possible with an improved OD shaft with increased spline depth, and two billet QT100 reaction plates. This allows for a 33% increase in mechanical torque holding capacity and a 33% increase in steel thermal mass. The billet QT100 plates reduce clutch coning due to the stiffer material and geometry. The BD Big Stack can be used in conjunction with a Sonnax input drum to allow a 16% increase in apply area. This setup will allow for a 54% increase in mechanical torque holding capacity. An electronic pressure enhancer (1030369) will further increase OD torque holding capacity.
Specifications
| Description_DEF | Automatic Transmission Overhaul Kit |
| Description_DES | BD 68RFE Big Stack Overdrive Shaft & Reaction Plates Kit Dodge 2007.5-2022 6.7L |
| Description_DES | Big Stack Overdrive Shaft and Reaction Plates Kit |
| Description_EXT | BD 68RFE Big Stack Overdrive Shaft & Reaction Plates Kit Dodge 2007.5-2022 6.7L |
| Description_EXT | Big Stack Overdrive Shaft and Reaction Plates Kit; Big Stack Overdrive Shaft/Reaction Plates; Incl. BD Overdrive Shaft/Reaction Plate OE-US and OD-Rev; |
| Description_FAB | 12 Month Warranty |
| Description_FAB | 16 Overdrive Friction Surfaces |
| Description_FAB | 33 Percent Increased Torque Holding Capacity |
| Description_FAB | 33 Percent More Steel Mass For Better Heat Absorption |
| Description_FAB | 33% increased torque holding capacity |
| Description_FAB | 33% more steel mass for better heat absorption |
| Description_FAB | Billet Machined Overdrive Shaft Spline |
| Description_FAB | Billet QT100 Reaction Plates |
| Description_FAB | Longer clutch engagement area |
| Description_FAB | Raybestos clutches B29308L / B29309L are required (included in BD Build-It kits) |
| Description_FAB | Raybestos Clutches PN[B29308L/B29309L] Are Required |
| Description_INV | 68RFE BIG STACK KIT DODGE 2007.5-2018 |
| Description_INV | 68RFE BIG STACK KIT DODGE 2007.5-2022 |
| Description_LAB | Proposition 65 |
| Description_MKT | Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds. |
| Description_MKT | The BD Big Stack consists of 16 overdrive clutches, made possible with an improved OD shaft with increased spline depth, and two billet QT100 reaction plates. This allows for a 33% increase in mechanical torque holding capacity and a 33% increase in steel thermal mass. The billet QT100 plates reduce clutch coning due to the stiffer material and geometry. The BD Big Stack can be used in conjunction with a Sonnax input drum to allow a 16% increase in apply area. This setup will allow for a 54% increase in mechanical torque holding capacity. An electronic pressure enhancer (1030369) will further increase OD torque holding capacity. |
| Description_SHO | 68RFE BIG STACK KIT |
| Description_SHO | A/TRebuildKt |
| Engine | 6.7L Cummins 19-up |
| height | 6.0 |
| length | 12.0 |
| LTL | N |
| Make | Dodge |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | bddiesel_prop65_warning.png |
| Prop 65 Warning | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | BD 68RFE Big Stack Overdrive Shaft & Reaction Plates Kit Dodge 2007.5-2022 6.7L |
| weight | 8.0 |
| width | 12.0 |
