BD Diesel 1045803 Scorpion Turbo Kit
by BD Diesel
SKU ds_BKJX_1045803
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,805.95
-
Original price
$5,805.95
Original price
$5,805.95
$5,805.95
$5,805.95
-
$5,805.95
Current price
$5,805.95
Availability:
Out of stock
Description
BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
Specifications
| Description_DEF | Turbocharger Kit |
| Description_DES | Scorpion S364.5SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350 |
| Description_DES | Scorpion Turbo Kit |
| Description_EXT | Scorpion S364.5SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350 |

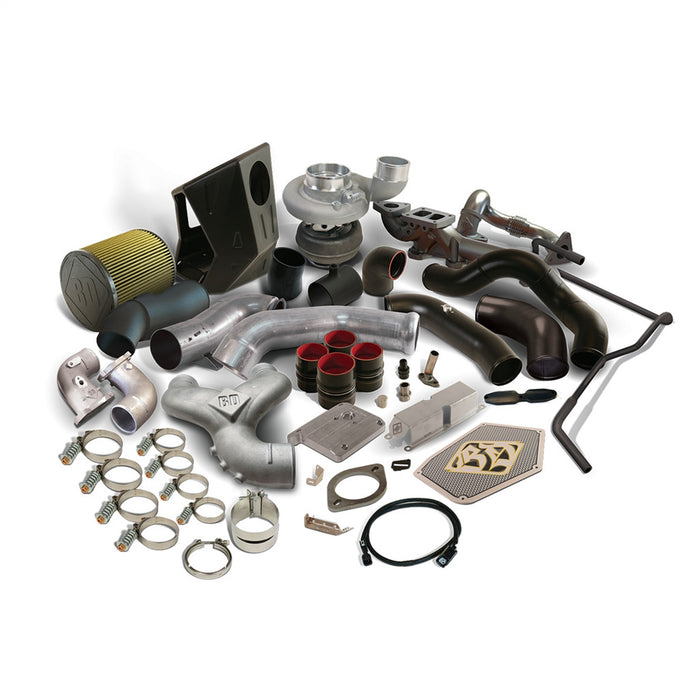

| Description_EXT | Scorpion Turbo Kit; S364.5SX-E; Incl. Borg Warner Turbo/Piping/Airbox/Air Filter/Clamps/Hoses/Exhaust Manifold/Gaskets/Brackets/All Necessary Parts/Hardware; |
| Description_FAB | 0.91 AR Ratio |
| Description_FAB | 1.00 AR Ratio |
| Description_FAB | 12 Month Or 12000 Mile Warranty |
| Description_FAB | 4 in Cold Air Intake w/8 in. OD High-Flow Velocity Stacked Filter |
| Description_FAB | 90 Degree Compressor Cover With 3 in Outlet |
| Description_FAB | BD 90-deg compressor cover with 2.75in outlet |
| Description_FAB | BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA). |
| Description_FAB | BD Billet Aluminum Pedestal Block With Oil Drain/Feed |
| Description_FAB | BD Boot Lock ready with boss positions on intake and outlets |
| Description_FAB | BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision |
| Description_FAB | BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems |
| Description_FAB | BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter |
| Description_FAB | BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube |
| Description_FAB | BD high strength A356 aluminum intake horns |
| Description_FAB | BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses |
| Description_FAB | Boot Lock Ready w/Boss Positions On Intake And Outlets |
| Description_FAB | Borg Warner S364.5SX-E Series Turbocharger w/FMW |
| Description_FAB | Borg Warner S364.5SX-E series turbocharger with FMW |
| Description_FAB | Compatible w/Stock Or Aftermarket Water-To-Air Intercoolers |
| Description_FAB | Compatible with stock or aftermarket water-to-air intercooler |
| Description_FAB | Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor |
| Description_FAB | Larger turbochargers available for even higher horsepower |
| Description_FAB | Race tune required (not included) |
| Description_FAB | Stainless Heat Shield Keeps Heat In and Intake Temperatures Down |
| Description_FAB | Wheel Burst Resulting From Over Speeding Is Not Warrantable |
| Description_INV | TURBO SCORPION S364.5 FORD 6.7L |
| Description_LAB | Proposition 65 |
| Description_MKT | BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance! |

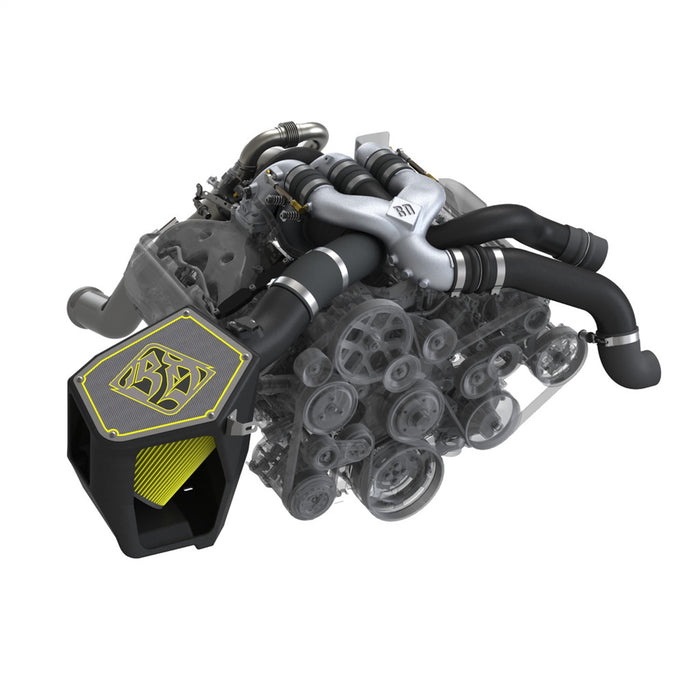

| Description_MKT | Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability. |
| Description_SHO | TURBO SCORPION S364 |
| Description_SHO | Turbocharger Kit |
| Engine | 6.7L Powerstroke 11-16 |
| height | 38.0 |
| length | 38.0 |
| Make | Ford |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | bddiesel_prop65_warning.png |
| Prop 65 Warning | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | Scorpion S364.5SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350 |
| weight | 128.0 |
| width | 38.0 |
