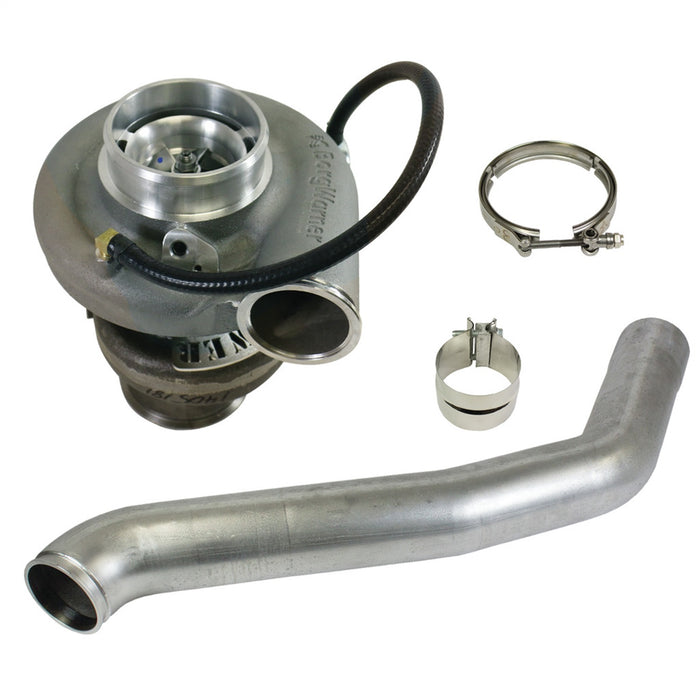

BD Diesel 1045257 Super B Special Turbo Kit
by BD Diesel
SKU ds_BKJX_1045257
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,656.95
-
Original price
$3,656.95
Original price
$3,656.95
$3,656.95
$3,656.95
-
$3,656.95
Current price
$3,656.95
Availability:
Out of stock
Description
The Super B Special bridges the performance gap between the Super B turbo and the Super B twin system. Flowing an amazing 80 lbs. of air per minute (compared to 61 lbs./minute for the Super B), the Super B Special is perfect for late-model Cummins common-rail or modified 12-valve engines and can deliver enough air for 375-525 rear wheel horsepower on diesel only. Add the larger BD Cool-It Intercooler and a shot of nitrous oxide, and the Super B Special will produce even higher power levels with adequate fuel delivery. This turbo kit comes complete with exhaust down pipe, clamps and adjustable waste gate.
Specifications
| Description_DEF | Turbocharger Kit |
| Description_DES | Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L |
| Description_DES | Super B Special Turbo Kit |
| Description_EXT | Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L |
| Description_EXT | Super B Special Turbo Kit; SX-E S363; A/R Ration 0.80; Incl. Killer B Single Turbo/Downpipe V-Band Clamp/4 in. Stainless Steel Clamp/4 in. Downpipe/Oil Drain Gasket; |
| Description_FAB | A/R Ratio: 0.80 |
| Description_FAB | A/R Ration 0.80; Flow 79 Lb/Minute |
| Description_FAB | Approx. Rated 550 hp - Depends On Truck Config |
| Description_FAB | Approximate rated 550hp (depending on truck configuration) |
| Description_FAB | BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds |
| Description_FAB | BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability |
| Description_FAB | BD's HD Waste gate and bracket holds boost and prevents over speed damage |
| Description_FAB | Comp Wheel 63 mm-2.48 in. Turbine Wheel 76 mm-2.99 in. |
| Description_FAB | Comp Wheel: 63mm 2.48in |
| Description_FAB | Designed For Perf. w/360 Thrust Bearings/Comp. Wheel And Housing |
| Description_FAB | Easy Complete Bolt-On Performance Replacement For Your OEM Turbo |
| Description_FAB | Exclusive Feature Of Heavy Sprung Wastegate T3 Turbine Housing |
| Description_FAB | Flow: 79 Lb/min |
| Description_FAB | HD Wastegate/Bracket Holds Boost And Prevents Over Speed Damage |
| Description_FAB | High Strength FMW Forged Milled Wheels Are Lighter And Stronger |
| Description_FAB | Kit comes with downpipe, V-band clamp, band clamp |
| Description_FAB | Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels |
| Description_FAB | Larger Compressor Blade Surface w/Smaller Inducer |
| Description_FAB | The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds |
| Description_FAB | The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing |
| Description_FAB | Turbine Wheel: 80mm 3.15in |
| Description_FAB | Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning |
| Description_FAB | Turnbuckle Boost Control For Ease Of Adjustment/Extreme Tuning |
| Description_INV | TURBO SPECIAL B SX-E DODGE 1994-2002 5.9 |
| Description_LAB | Proposition 65 |
| Description_MKT | All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds. |
| Description_MKT | The Super B Special bridges the performance gap between the Super B turbo and the Super B twin system. Flowing an amazing 80 lbs. of air per minute (compared to 61 lbs./minute for the Super B), the Super B Special is perfect for late-model Cummins common-rail or modified 12-valve engines and can deliver enough air for 375-525 rear wheel horsepower on diesel only. Add the larger BD Cool-It Intercooler and a shot of nitrous oxide, and the Super B Special will produce even higher power levels with adequate fuel delivery. This turbo kit comes complete with exhaust down pipe, clamps and adjustable waste gate. |
| Description_SHO | TURBO SPECIAL B SX-E |
| Description_SHO | Turbocharger Kit |
| Engine | 5.9L Cummins 98.5-02 24-Valve |
| height | 14.0 |
| length | 64.0 |
| LTL | N |
| Make | Dodge |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | bddiesel_prop65_warning.png |
| Prop 65 Warning | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L |
| weight | 54.0 |
| width | 14.0 |
