Baja Designs 570013 XL-R Sport LED Driving/Combo Amber Baja Designs
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
The XL-R Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL-R Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern.
The XL-R Sport provides the same top of the line performance and aesthetics you expect from BD in an affordable solution. All Baja Designs LEDs are backed by a 30 Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.
Note: A Skene dimmer must be purchased separately to enable the high/low feature.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 3,150 Utilizing 4 LEDs
- Wattage/Amps: 26W / 2A

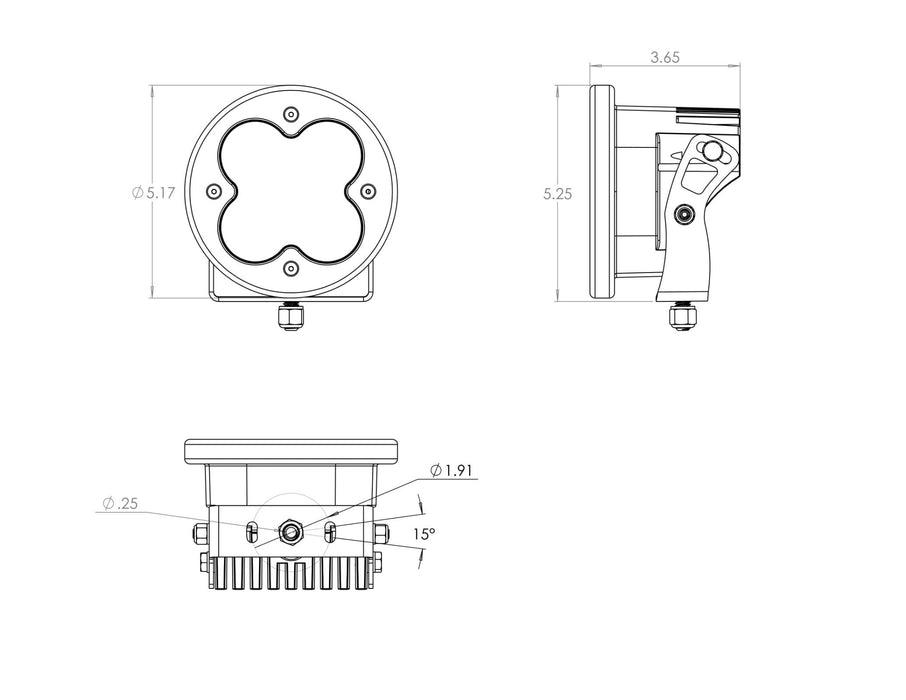

- Dimensions: 5.24 inch x 3.65 inch x 5.24 inch
- Weight: 2.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
XL-R Sport LED Light
Mounting Bracket
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specifications
| bezel_material | Billet Machined Aluminum |
| bracket_material | Stainless Steel |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| finish_l | Powdercoat |
| height | 12.0 |
| housing_type | Powder Coated Cast Aluminum |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2022-05-15 03:46:54 |
| length | 16.0 |
| lens_color | Amber |
| lens_material | Hard Coated Polycarbonate |
| light_pattern | Driving/Combo |
| LTL | N |
| material_l | Cast Aluminum |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | XL R Sport Series |
| sold_as | Each |
| Universal | Yes |
| vehicle_type | ATV/UTV|Jeep|Motorcycle|Truck/SUV |
| weight | 5.0 |
| width | 12.0 |
