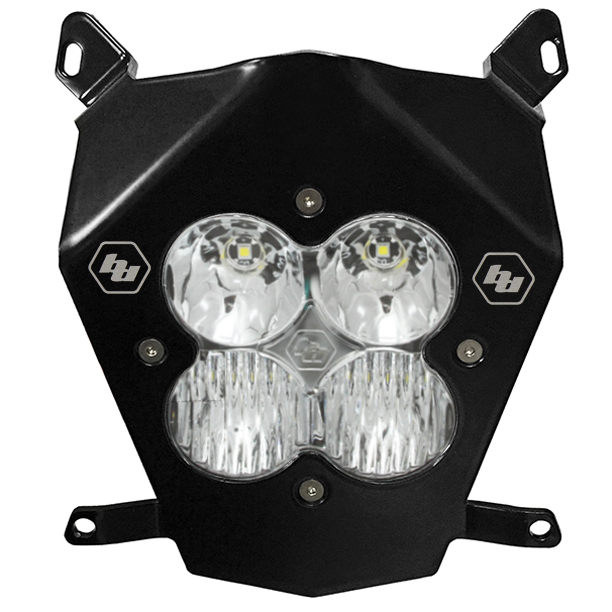

Baja Designs 507071 XL Pro LED KTM 690 12-18 Kit Baja Designs
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Specifically designed for those riders who are looking for more than just your average headlight. The XL Pro, LED KTM 690 (12-18) kit is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance, and offers a 20 percent dimming feature.
The XL Pro, LED KTM 690 (12-18) kit Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs.
The XL Pro, LED KTM 690 (12-18) kit Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
- Weight: 1.85 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- XL Pro, LED KTM 690 (12-17) kit
- 12-9016 KTM Hi-Low Relay Harness
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Specifications
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| height | 12.0 |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2022-05-15 03:47:28 |
| length | 36.0 |
| life_span_expectancy | 49,930 Hours |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | XL Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Motorcycle |
| weight | 8.0 |
| width | 12.0 |
