Baja Designs 497004 KTM 790 Light Kit For 19-OnKTM 790 Dual Squadron Pro/Racer Kit Baja Designs
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Spice your K 790 up with a lighting kit from Baja Designs! This kit includes everything you need such as wiring, lights, bracketry, and hardware.
This kit utilizes our Squadron series of light, and will provide ample performance for any adventure you're on. One of the key benefits to this kit is that it utilizes our Racer Edition line of Squadron.
This light is able to achieve further distances thanks to its high intensity LEDs. Installation is a breeze, and the fient is second to none!
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (Squadron Pro):
- Lumens: 4,900 Utilizing 4 Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService- Replaceable Lenses And Optics
- ClearView- All The Light, Right Where You Need It.
- MoistureBlock- Waterproof, Rain Proof, Submersible
- CopperDrive- Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
- Lumens: 4,300 Utilizing 4 Cree High Intensity LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

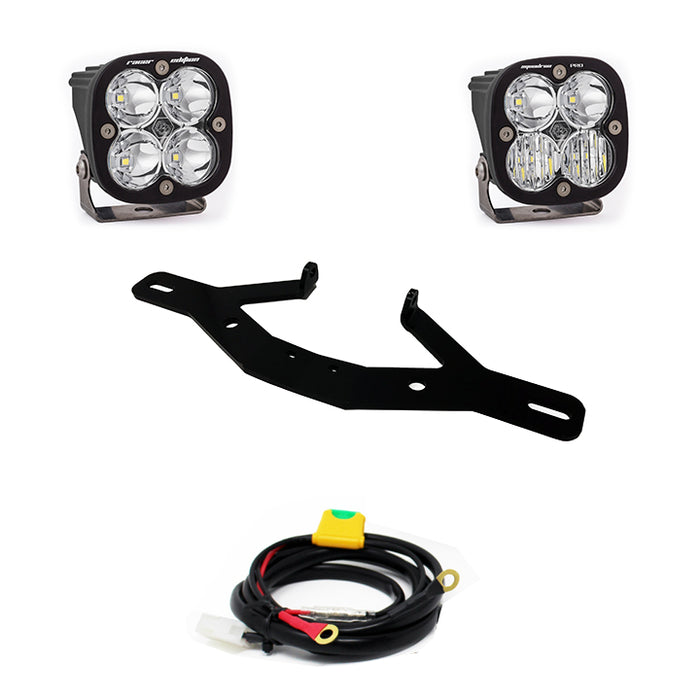

Includes:
- (1) Squadron Pro Driving/ Combo LED Light
- (1) Squadron Racer Spot LED Light
- Bracletry
- Wiring Harnesses
- Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 Degree) and the spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specifications
| bezel_material | Billet Machined Aluminum |
| bracket_material | Stainless Steel |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| height | 12.0 |
| housing_type | Hard Anodized and Powder Coated Cast Aluminum |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2023-01-01 09:14:04 |
| length | 12.0 |
| lens_color | Clear |
| lens_material | Hard Coated Polycarbonate |
| life_span_expectancy | 49,930 Hours |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | Squadron Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Motorcycle |
| waterproof_rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| weight | 10.0 |
| width | 12.0 |
