Baja Designs 448049 Ram 1500 TRX 21-On 20 Inch S8 Grill Kit Baja Designs
Albertan Owned
Financing Available
Top-Quality Suppliers
Description

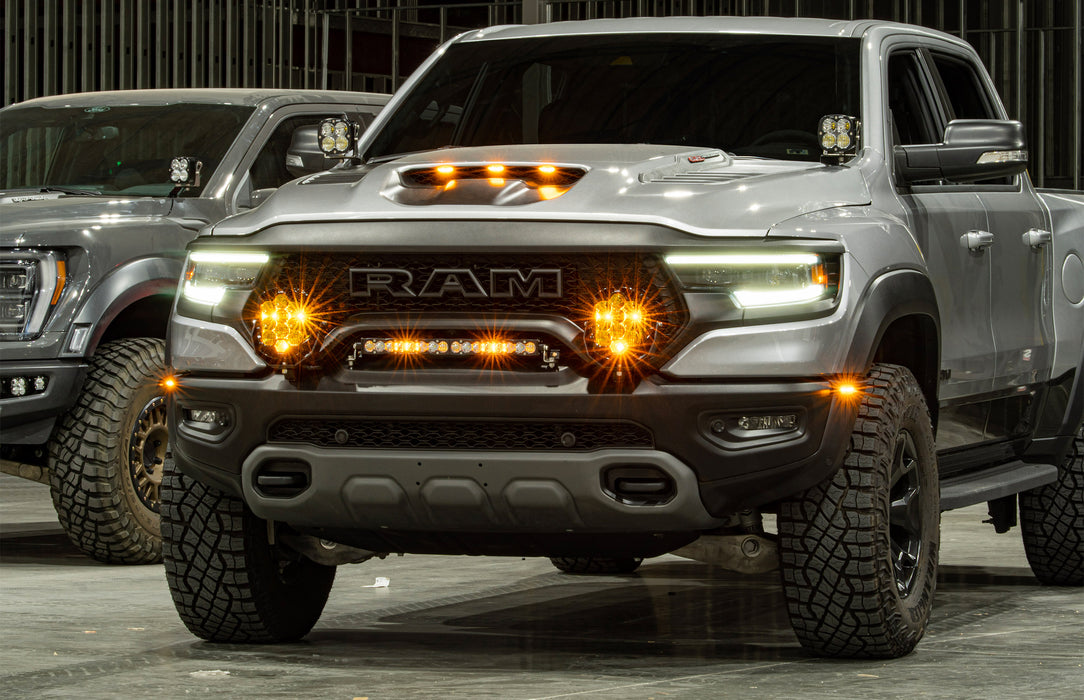

Our Dodge, Ram TRX S8 Grille kit was designed specifically to keep a low profile while allowing for maximum performance. The kit includes mounts that fit into factory locations without cutting or trimming and includes both the wiring and a 20 inch S8 Driving / Combo for an easy install.
With the S8 you will be able to utilize it's back lit feature giving a differentiating look from other trucks!
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
Lumens: 12,700 Utilizing 16 Cree LEDs
Wattage/Amps: 120W / 8.00A
Dimensions: 20 inch x 3 inch x 1.6 inch
Weight: 4.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
(S8 Patent D780,964)
Application:
2021 Dodge Ram, TRX
Included:
- x1 S8 20 inch in Driving Combo
- x4 Mounting Brackets
- x1 Upfitter Harness
- x1 5' Wiring Harness Extension
- x1 Wiring Fuse Tap kit
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (8 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Specifications
| bracket_material | Stainless Steel |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| height | 8.0 |
| housing_type | Aircraft Grade Aluminum w/Mil-Spec Hard Anodize |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2022-05-15 03:48:16 |
| length | 25.0 |
| lens_color | Clear |
| lens_material | Hard Coated Polycarbonate |
| life_span_expectancy | 49,930 Hours |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | OnX6 Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| waterproof_rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| weight | 10.0 |
| width | 8.0 |
