Baja Designs 447695 F-150 A Pillar kit Squadron Sport Spot 21-On Ford F150 Baja Designs
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
With the Ford, F150 (21-On) A Pillar Kit being an easy bolt on application, this makes it simple to put our Squadron Sports on your vehicle. Whether this kit is for camp lighting or cruising down a dark road, this kit will give all the output you need.
This kit includes powder coated A-Pillar brackets, stand-alone wiring harness, stainless-steel hardware as well as Squadron Driving Combo and Squadron Wide Cornering lenses to give you the option to fully customize the pattern of your A-Pillar lights.
Baja Designs Features:
- Satisfactions Guaranteeand30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 3,150 Utilizing 4 LEDs
- Wattage/Amps: 26W / 2A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Application:
Ford F150 (21 - On)

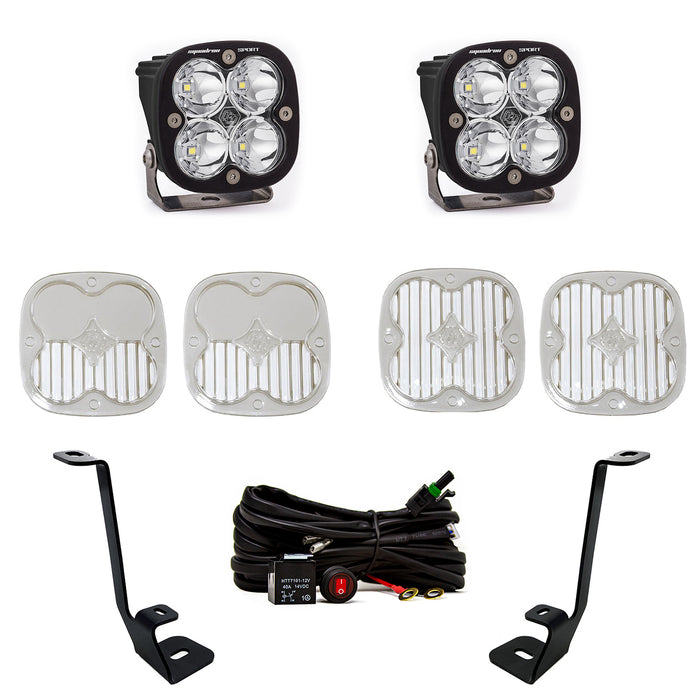

Included:
- Squadron Sport, Spot Pair
- x2 A-Pillar Brackets
- x1 Toggle Switch Harness
- x1 Parts Bag
- x2 Driving Combo Lenses
- x2 Wide Cornering Lenses
Patterns:
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (8 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Specifications
| bezel_material | Billet Machined Aluminum |
| bracket_material | Stainless Steel |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| finish_l | Hard Anodized |
| height | 12.0 |
| housing_type | Hard Anodized and Powder Coated Cast Aluminum |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2022-05-15 03:47:52 |
| length | 12.0 |
| lens_color | Clear |
| lens_material | Hard Coated Polycarbonate |
| life_span_expectancy | 49,930 Hours |
| light_pattern | Spot |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | Squadron Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| waterproof_rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| weight | 10.0 |
| width | 12.0 |
