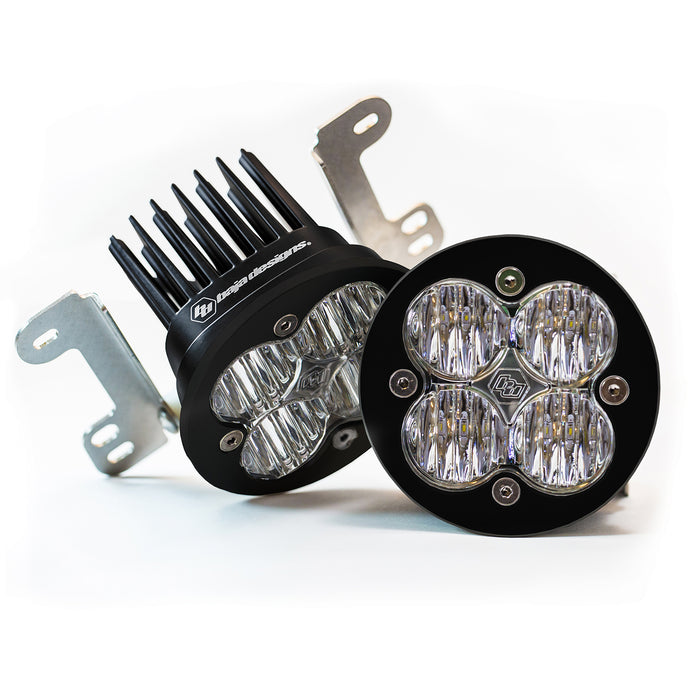

Baja Designs 447621 Jeep JK Fog Light Squadron-R SAE LED 07-18 Wrangler JK Fog Pocket Kit Baja Designs
Albertan Owned
Financing Available
Top-Quality Suppliers
Description
Baja Designs next generation Squadron® SAE fog pocket kit for the Jeep JK is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts.
Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics.
Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Application:
- Jeep JK
- Included:
- Brackets / Hardware
- SAE Squadrons
- Wiring Harness
Specifications
| bezel_material | Billet Machined Aluminum |
| bracket_material | Stainless Steel |
| brackets_included | Yes |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| finish_l | Powdercoat |
| height | 12.0 |
| housing_type | Hard Anodized and Powder Coated Cast Aluminum |
| ik10_compliant | Yes |
| last_update | 2023-03-01 13:12:25 |
| length | 12.0 |
| lens_color | Clear |
| lens_material | Hard Coated Polycarbonate |
| LTL | N |
| material_l | Aircraft Grade Aluminum |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | Squadron-R |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Jeep |
| Warranty | Lifetime Limited |
| waterproof_rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| weight | 6.0 |
| width | 12.0 |
